A basic input slot. More...

#include <CeresEngine/Renderer/RenderGraph/RenderGraphSlot.hpp>

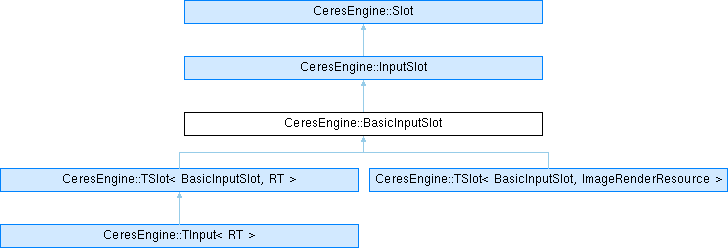

Inheritance diagram for CeresEngine::BasicInputSlot:

Public Member Functions
const ConnectionPtr &	getConnection () const final
	Finds a connection to the given `slot`.

	InputSlot (RenderTask *task, const StringView name)

	InputSlot (RenderTask &task, StringView name)

Public Member Functions inherited from CeresEngine::InputSlot
	InputSlot (RenderTask *task, const StringView name)

	InputSlot (RenderTask &task, StringView name)

	~InputSlot ()

Type	getType () const final

Connection *	getConnection (Slot &slot) const override
	Finds a connection to the given `slot`.

ConnectionPtr	connect (OutputSlot &output)
	Connects the given `output` to this input slot.

bool	supports (Slot &slot) const override
	Checks if this slot supports a connection to the given slot.

OutputSlot *	getConnectedSlot () const
	Gets the output slot used in the current connection.

Public Member Functions inherited from CeresEngine::Slot
	Slot (RenderTask *task, const StringView name)

	Slot (RenderTask &task, StringView name)

	~Slot ()

RenderTask &	getRenderTask () const
	The render task that owns this render graph slot.

StringView	getName () const
	A human-readable name for the slot.

virtual RenderResourceType	getResourceType () const =0
	The type of resource accepted by the slot.

bool	isInput () const
	Returns `true` if the slot is an input slot, `false` otherwise.

InputSlot &	asInput ()

const InputSlot &	asInput () const

bool	isOutput () const
	Returns `true` if the slot is an output slot, `false` otherwise.

OutputSlot &	asOutput ()

const OutputSlot &	asOutput () const

bool	isConnected (Slot &slot) const
	Checks if there's an active connection to the given `slot`.

UInt32	disconnectAll ()

Protected Member Functions
void	didConnect (Connection &connection) override
	An internal method called after the slot is connected.

void	didDisconnect (Connection &slot) override
	An internal method called whenever the slot is disconnected.

Protected Member Functions inherited from CeresEngine::InputSlot
bool	shouldDisconnect (Connection &connection) const override
	An internal method called whenever a new disconnection is being made.

Protected Member Functions inherited from CeresEngine::Slot
virtual bool	shouldConnect (Slot &slot) const
	An internal method called whenever a new connection is being made.

virtual void	willConnect (Slot &slot)
	An internal method called before the slot is connected.

virtual void	willDisconnect (Connection &connection)
	An internal method called before the slot is disconnected.

Private Attributes
ConnectionPtr	mConnection
	The connection that is connected to the input slot.

Additional Inherited Members
Public Types inherited from CeresEngine::Slot
enum class	Type { Input , Output }
	A enumeration of the types of slots. More...

Static Public Member Functions inherited from CeresEngine::Slot
static ConnectionPtr	connect (InputSlot &input, OutputSlot &output)
	Connects an output slot into an input slot.

static bool	disconnect (InputSlot &input, OutputSlot &output)
	Disconnect the given `slot` from this slot.

Public Attributes inherited from CeresEngine::Slot
Event< void(Connection &)>	onConnect
	An event triggered whenever the slot is connected to another.

Event< void(Connection &)>	onDisconnect
	An event triggered whenever the slot is disconnected from another.

Protected Attributes inherited from CeresEngine::Slot
RenderTask &	mTask
	The render task that owns this render graph slot.

const StringView	mName
	A human-readable name for the slot.

Detailed Description

A basic input slot.

Member Function Documentation

◆ didConnect()

void CeresEngine::BasicInputSlot::didConnect ( Connection & connection )

overrideprotectedvirtual

An internal method called after the slot is connected.

Reimplemented from CeresEngine::Slot.

◆ didDisconnect()

void CeresEngine::BasicInputSlot::didDisconnect ( Connection & slot )

overrideprotectedvirtual

An internal method called whenever the slot is disconnected.

Reimplemented from CeresEngine::Slot.

◆ getConnection()

const ConnectionPtr & CeresEngine::BasicInputSlot::getConnection ( ) const

inlinefinalvirtual

Finds a connection to the given slot.

If no such connections exists, returns nullptr.

Implements CeresEngine::InputSlot.

◆ InputSlot() [1/2]

CeresEngine::InputSlot::InputSlot	(	RenderTask &	task,
		StringView	name
	)

◆ InputSlot() [2/2]

CeresEngine::InputSlot::InputSlot	(	RenderTask *	task,
		const StringView	name
	)

inline

Member Data Documentation

◆ mConnection

ConnectionPtr CeresEngine::BasicInputSlot::mConnection

private

The connection that is connected to the input slot.

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RenderGraph/RenderGraphSlot.hpp
