CeresEngine::BufferedDataStream Class Reference

A filtered DataStream that caches read and write operations to it's underlying DataStream. More...

#include <CeresEngine/Foundation/IO/Stream.Buffered.hpp>

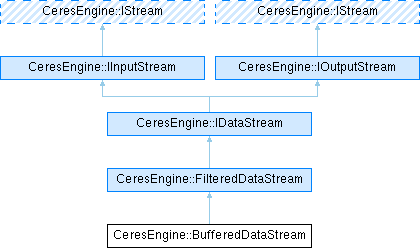

Inheritance diagram for CeresEngine::BufferedDataStream:

Public Member Functions
	BufferedDataStream (DataStream &&dataStream, size_t readBufferSize=1024, size_t writeBufferSize=1024)
	Creates a new buffer data stream.
	BufferedDataStream (const BufferedDataStream &)=delete
	BufferedDataStream (BufferedDataStream &&) noexcept
	~BufferedDataStream () final
	Destroys the buffered data stream.
void	seek (std::streamsize position, Seek mode=Seek::Start) final
	Changes the position of the data stream.
bool	isTellable () const noexcept final
	Checks if the stream knows it's current absolute position.
size_t	tell () final
	Gets the absolute stream position, in bytes.
size_t	read (void *data, size_t n) final
	Reads data from the data stream to a buffer of raw memory data with length n.
bool	invalidate () final
	In the stream is buffered, invalidates any buffered read data from the stream.
size_t	write (const void *data, size_t n) final
	Writes data to the data stream from a buffer of raw memory data with length n.
bool	flush () final
	In the stream is buffered, invalidates any buffered write data from to stream.
Public Member Functions inherited from CeresEngine::FilteredDataStream
	FilteredDataStream (DataStream &&dataStream)
	Creates a new filtered data stream.
	FilteredDataStream (FilteredDataStream &&) noexcept=default
	~FilteredDataStream () override=default
DataStream &	getDataStream () noexcept
	The data stream being filtered.
const DataStream &	getDataStream () const noexcept
	The data stream being filtered.
bool	isSeekable (const Seek mode=Seek::Start) const noexcept override
	Checks if the stream is seekable.
void	seek (const std::streamsize position, const Seek mode=Seek::Start) override
	Changes the position of the data stream.
bool	isTellable () const noexcept override
	Checks if the stream knows it's current absolute position.
size_t	tell () override
	Gets the absolute stream position, in bytes.
bool	isSizeKnown () const noexcept override
	Checks if the stream knows the size of the data.
size_t	size () override
	Gets the number of bytes available on the stream.
bool	isReadable () const noexcept override
	Checks if the stream is readable.
size_t	read (void *data, const size_t n) override
	Reads data from the data stream to a buffer of raw memory data with length n.
bool	invalidate () override
	In the stream is buffered, invalidates any buffered read data from the stream.
bool	isWritable () const noexcept override
	Checks if the stream is writable.
size_t	write (const void *data, const size_t n) override
	Writes data to the data stream from a buffer of raw memory data with length n.
bool	flush () override
	In the stream is buffered, invalidates any buffered write data from to stream.
Public Member Functions inherited from CeresEngine::IInputStream
template<typename T >
size_t	read (const MemoryView< T > &memoryView)
	Reads data from the strea into a memory view.
template<typename T >
size_t	read (const StridedMemoryView< T > &memoryView)
	Reads data from the stream into a strided memory view.
Optional< String >	readString ()
	Reads data from the buffer as a C++ String.
template<typename T > requires std::is_trivially_copyable_v<T>
Optional< T >	read ()
	Reads a trivially copyable obhect from the stream.
Public Member Functions inherited from CeresEngine::IStream
	IStream ()=default
	IStream (const IStream &) noexcept=delete
IStream &	operator= (const IStream &) noexcept=delete
	IStream (IStream &&) noexcept=default
IStream &	operator= (IStream &&) noexcept=default
virtual	~IStream () noexcept=default
void	skip (const size_t n)
	Skips n bytes from the data stream.
Public Member Functions inherited from CeresEngine::IOutputStream
template<typename T >
size_t	write (const MemoryView< const T > &memoryView)
	Writes data from a memory view to the stream.
template<typename T >
size_t	write (const StridedMemoryView< const T > &memoryView)
	Writes data from a strided memory view to the stream.
size_t	writeString (const StringView string)
	Writes a string to the data stream.
template<typename T > requires std::is_trivially_copyable_v<T>
bool	write (T value)
	Writes a trivially copyable object to the stream.

Static Public Member Functions
static BufferedDataStream	createReadBufferedStream (DataStream &&dataStream, const size_t readBufferSize=1024)
	Creates a new buffered DataStream that only buffers read operations.
static BufferedDataStream	createWriteBufferedStream (DataStream &&dataStream, const size_t writeBufferSize=1024)
	Creates a new buffered DataStream that only buffers write operations.

Private Types
using	super = FilteredDataStream

Private Member Functions
void	invalidateReadBuffer ()
void	flushWriteBuffer ()

Private Attributes
size_t	mPosition = 0
	The current stream position.
void *	mReadBuffer = nullptr
	A pointer to the read buffer memory.
const size_t	mReadBufferSize = 0
	The size of the allocated read buffer.
TRange< size_t >	mReadBufferRange
	The current read buffer range.
void *	mWriteBuffer = nullptr
	A pointer to the write buffer memory.
const size_t	mWriteBufferSize = 0
	The size of the allocated write buffer.
TRange< size_t >	mWriteBufferRange
	The current write buffer range.

Additional Inherited Members
Public Types inherited from CeresEngine::IStream
enum class	Seek { Start = SEEK_SET , Current = SEEK_CUR , End = SEEK_END }
	An enumeration that describes how a data stream should be seeked. More...
Protected Attributes inherited from CeresEngine::FilteredDataStream
DataStream	mDataStream
	The data stream being filtered.

Detailed Description

A filtered DataStream that caches read and write operations to it's underlying DataStream.

Member Typedef Documentation

super

using CeresEngine::BufferedDataStream::super = FilteredDataStream

private

Constructor & Destructor Documentation

BufferedDataStream() [1/3]

CeresEngine::BufferedDataStream::BufferedDataStream ( DataStream &&  dataStream, size_t  readBufferSize = 1024, size_t  writeBufferSize = 1024  )

explicit

Creates a new buffer data stream.

Parameters

size	Size of the memory chunk in bytes.

BufferedDataStream() [2/3]

CeresEngine::BufferedDataStream::BufferedDataStream ( const BufferedDataStream &  )

delete

BufferedDataStream() [3/3]

CeresEngine::BufferedDataStream::BufferedDataStream ( BufferedDataStream &&  )

noexcept

~BufferedDataStream()

CeresEngine::BufferedDataStream::~BufferedDataStream ( )

final

Destroys the buffered data stream.

Member Function Documentation

createReadBufferedStream()

static BufferedDataStream CeresEngine::BufferedDataStream::createReadBufferedStream ( DataStream &&  dataStream, const size_t  readBufferSize = 1024  )

inlinestatic

Creates a new buffered DataStream that only buffers read operations.

Writes are pass-through operations.

Parameters

dataStream	The data stream to be buffered.
readBufferSize	The size of the read buffers to be kept internally. All reads performed using this stream will be of this size.

createWriteBufferedStream()

static BufferedDataStream CeresEngine::BufferedDataStream::createWriteBufferedStream ( DataStream &&  dataStream, const size_t  writeBufferSize = 1024  )

inlinestatic

Creates a new buffered DataStream that only buffers write operations.

Reads are pass-through operations.

Parameters

dataStream	The data stream to be buffered.
writeBufferSize	The size of the write buffers to be kept internally. All writes performed using this stream will be of this size.

flush()

bool CeresEngine::BufferedDataStream::flush ( )

finalvirtual

In the stream is buffered, invalidates any buffered write data from to stream.

Non-buffered streams are free to ignore this method.

Returns

True if the flushing finished successfully; false otherwise.

Reimplemented from CeresEngine::IOutputStream.

flushWriteBuffer()

void CeresEngine::BufferedDataStream::flushWriteBuffer ( )

private

invalidate()

bool CeresEngine::BufferedDataStream::invalidate ( )

finalvirtual

In the stream is buffered, invalidates any buffered read data from the stream.

Non-buffered streams are free to ignore this method.

Returns

True if the invalidation finished successfully; false otherwise.

Reimplemented from CeresEngine::IInputStream.

invalidateReadBuffer()

void CeresEngine::BufferedDataStream::invalidateReadBuffer ( )

private

isTellable()

bool CeresEngine::BufferedDataStream::isTellable ( ) const

inlinefinalvirtualnoexcept

Checks if the stream knows it's current absolute position.

If this method returns true, tell() is safe to be called on this stream.

Reimplemented from CeresEngine::IStream.

read()

size_t CeresEngine::BufferedDataStream::read ( void *  data, size_t  n  )

finalvirtual

Reads data from the data stream to a buffer of raw memory data with length n.

Note

This method is only callable if isReadable() returns true.

Parameters

data	The memory location to which read data should be placed.
n	The maximum number of bytes to be read from the data stream.

Returns

The number of bytes actually read. Can be smaller than n. If 0, indicates that the stream has ended.

Reimplemented from CeresEngine::IInputStream.

seek()

void CeresEngine::BufferedDataStream::seek ( std::streamsize  position, Seek  mode = Seek::Start  )

finalvirtual

Changes the position of the data stream.

Note

This method is only callable if isSeekable() returns true.

Parameters

position	The position to set the data stream to.
mode	The mode to change the data stream position.

Reimplemented from CeresEngine::IStream.

tell()

size_t CeresEngine::BufferedDataStream::tell ( )

inlinefinalvirtual

Gets the absolute stream position, in bytes.

Note

This method is only callable if isTellable() returns true.

Reimplemented from CeresEngine::IStream.

write()

size_t CeresEngine::BufferedDataStream::write ( const void *  data, size_t  n  )

finalvirtual

Writes data to the data stream from a buffer of raw memory data with length n.

Note

This method is only callable if isWritable() returns true.

Parameters

data	The memory location to which written data should be copied from.
n	The maximum number of bytes to be write to the data stream.

Returns

The number of bytes actually written. Can be smaller than n, in that case the write operation must be repeated to ensure that all data was written. If 0, indicates that the stream has ended.

Reimplemented from CeresEngine::IOutputStream.

Member Data Documentation

mPosition

size_t CeresEngine::BufferedDataStream::mPosition = 0

private

The current stream position.

mReadBuffer

void* CeresEngine::BufferedDataStream::mReadBuffer = nullptr

private

A pointer to the read buffer memory.

Can be null if read operations are unbuffered.

mReadBufferRange

TRange<size_t> CeresEngine::BufferedDataStream::mReadBufferRange

private

The current read buffer range.

This represents the range of data that is available in mReadBuffer.

mReadBufferSize

const size_t CeresEngine::BufferedDataStream::mReadBufferSize = 0

private

The size of the allocated read buffer.

mWriteBuffer

void* CeresEngine::BufferedDataStream::mWriteBuffer = nullptr

private

A pointer to the write buffer memory.

Can be null if write operations are unbuffered.

mWriteBufferRange

TRange<size_t> CeresEngine::BufferedDataStream::mWriteBufferRange

private

The current write buffer range.

This represents the range of data that is pending a flush.

mWriteBufferSize

const size_t CeresEngine::BufferedDataStream::mWriteBufferSize = 0

private

The size of the allocated write buffer.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Foundation/IO/Stream.Buffered.hpp
