The representation of a font in the engine. More...

#include <CeresEngine/Text/Font.hpp>

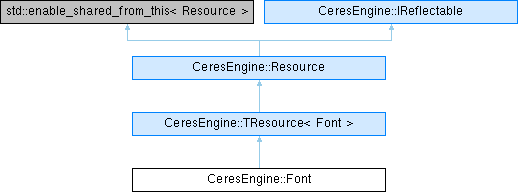

Inheritance diagram for CeresEngine::Font:

Public Member Functions
	Font (const FilePath &fontFile, FontSize size)

	~Font () override

double	getPointSize () const
	The point size of the font.

bool	isFixedPitch () const
	A Boolean value indicating whether all glyphs in the font have the same advancement.

UInt32	getNumberOfGlyphs () const
	The number of glyphs in the font. Glyphs are numbered starting at 0.

UInt32	getControlGlyph () const
	The reserved code for a control glyph.

UInt32	getNullGlyph () const
	The reserved code for a null glyph.

String	getDisplayName () const
	The name of the font, including family and face names, to use when displaying the font information to the user.

String	getFamilyName () const
	The family name of the font—for example, "Times" or "Helvetica.".

String	getFontName () const
	The full name of the font, as used in PostScript language code—for example, "Times-Roman" or "Helvetica-Oblique.".

FontRenderingMode	getRenderingMode () const
	The rendering mode of the font.

Size2	getAdvancement (Glyph aGlyph) const
	Returns the nominal spacing for the given glyph—the distance the current point moves after showing the glyph—accounting for the receiver’s size.

Rect2	getBoundingRect (Glyph aGlyph) const
	Returns the bounding rectangle for the specified glyph, scaled to the receiver’s size.

Rect2	getUV (Glyph aGlyph) const

Vector< Size2 >	getAdvancements (const Span< Glyph > &glyphs) const
	Returns an array of the advancements for the specified glyphs rendered by the receiver.

void	getAdvancements (const Span< Glyph > &glyphs, TemporaryVector< Size2 > &advancements)

Vector< Size2 >	getPackedAdvancements (const Span< Glyph > &packedGlyphs) const
	Returns an array of the advancements for the specified packed glyphs and rendered by the receiver.

void	getPackedAdvancements (const Span< Glyph > &packedGlyphs, TemporaryVector< Size2 > &packedAdvancements) const

Vector< Rect2 >	getBoundingRects (const Span< Glyph > &glyphs) const
	Returns an array of the bounding rectangles for the specified glyphs rendered by the receiver.

void	getBoundingRects (const Span< Glyph > &glyphs, TemporaryVector< Rect2 > &boundingRects) const

Glyph	getGlyph (StringView glyphName) const
	Returns the named encoded glyph, or `–1` if the receiver contains no such glyph.

BezierPath	getPathForGlyph (Glyph glyph) const

void	prepareCharacterSet (StringView characterSet)

void	prepareCharacterSet (StringView characterSet, double pointSize, const AffineTransform &transform)
	Prepares the set of characters in `characterSet` for rendering.

Public Member Functions inherited from CeresEngine::TResource< Font >
ResourceHandle< Font >	getResourceHandle () const noexcept
	Generates a hash for the provided type.

SPtr< Font >	getShared () noexcept
	Gets a shared pointer to the resource.

SPtr< const Font >	getShared () const noexcept
	Gets a shared pointer to the resource.

const ResourceTypeInfo &	getResourceType () const noexcept override
	Returns the resource type information descriptor.

	TResource (ResourceData &data, InputStream &dataStream)

void	serialize (OutputStream &dataStream) const override
	Serializes a resource by writing data to `dataStream`.

Public Member Functions inherited from CeresEngine::Resource
	Resource ()
	Default constructor for the `Resource` class.

	Resource (ResourceData &data)
	Creates a new `Resource` instance by passing a `ResourceData` instance.

virtual	~Resource () noexcept=default
	`Resource` virtual destructor.

ResourceManager *	getResourceManager () const noexcept

HResource	getResourceHandle () const noexcept
	Generates a hash for the provided type.

UUID	getResourceID () const noexcept

HResource	getParentResource () const noexcept
	A parent resource to which this resource is attached to.

SPtr< ResourceMetadata >	getResourceMetadata () const noexcept
	A pointer to the user-defined resource metadata.

const PackagePtr &	getPackage () const noexcept
	The package from which the resource was loaded from.

template<typename T = Resource>
SPtr< T >	getShared () noexcept
	Gets a shared pointer to the resource.

template<typename T = Resource>
SPtr< const T >	getShared () const noexcept
	Gets a shared pointer to the resource.

	Resource (ResourceData &data, InputStream &dataStream)
	Creates a new resource by reading data from `dataStream`.

Public Member Functions inherited from CeresEngine::IReflectable
virtual	~IReflectable () noexcept=default

Public Attributes
Map< Glyph, Rect2 >	uvMap

SPtr< Texture >	image

Private Attributes
FontSize	mSize

void *	handle

Vector2	mFontUnitScale

FontProperties	mProperties

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::Resource
template<typename Processor >
static constexpr void	reflect (Processor &&RTTI)
	Executes the given processor for every field of the struct.

Protected Member Functions inherited from CeresEngine::Resource
HResourceStream	createStream (const ResourceStreamFlags &flags=ResourceStreamFlag::Default)
	Creates a new resource stream.

void	destroyStream (HResourceStream &stream)
	Destroys a stream.

void	markAsDirty ()
	Marks the resource as dirty.

Detailed Description

The representation of a font in the engine.

Font objects represent fonts in the engine, providing access to characteristics of the font and assistance in laying out glyphs relative to one another.

Constructor & Destructor Documentation

◆ Font()

CeresEngine::Font::Font	(	const FilePath &	fontFile,
		FontSize	size
	)

◆ ~Font()

CeresEngine::Font::~Font ( )

override

Member Function Documentation

◆ getAdvancement()

Size2 CeresEngine::Font::getAdvancement ( Glyph aGlyph ) const

Returns the nominal spacing for the given glyph—the distance the current point moves after showing the glyph—accounting for the receiver’s size.

This spacing is given according to the glyph’s movement direction, which is either strictly horizontal or strictly vertical.

Parameters

aGlyph The glyph whose advancement is returned.

Returns: The advancement spacing in points.

◆ getAdvancements() [1/2]

Vector< Size2 > CeresEngine::Font::getAdvancements ( const Span< Glyph > & glyphs ) const

Returns an array of the advancements for the specified glyphs rendered by the receiver.

Returns in advancements an array of the advancements for the glyphs specified by glyphs and rendered by the receiver.

◆ getAdvancements() [2/2]

void CeresEngine::Font::getAdvancements	(	const Span< Glyph > &	glyphs,
		TemporaryVector< Size2 > &	advancements
	)

◆ getBoundingRect()

Rect2 CeresEngine::Font::getBoundingRect ( Glyph aGlyph ) const

Returns the bounding rectangle for the specified glyph, scaled to the receiver’s size.

◆ getBoundingRects() [1/2]

Vector< Rect2 > CeresEngine::Font::getBoundingRects ( const Span< Glyph > & glyphs ) const

Returns an array of the bounding rectangles for the specified glyphs rendered by the receiver.

Returns in bounds an array of the bounding rectangles for the glyphs specified by glyphs and rendered by the receiver.

◆ getBoundingRects() [2/2]

void CeresEngine::Font::getBoundingRects	(	const Span< Glyph > &	glyphs,
		TemporaryVector< Rect2 > &	boundingRects
	)		const

◆ getControlGlyph()

UInt32 CeresEngine::Font::getControlGlyph ( ) const

The reserved code for a control glyph.

◆ getDisplayName()

String CeresEngine::Font::getDisplayName ( ) const

The name of the font, including family and face names, to use when displaying the font information to the user.

◆ getFamilyName()

String CeresEngine::Font::getFamilyName ( ) const

The family name of the font—for example, "Times" or "Helvetica.".

The value in this property is intended for an application’s internal usage and not for display. To get a name that you can display to the user, use getDisplayName() instead.

◆ getFontName()

String CeresEngine::Font::getFontName ( ) const

The full name of the font, as used in PostScript language code—for example, "Times-Roman" or "Helvetica-Oblique.".

The value in this property is intended for an application’s internal usage and not for display. To get a name that you can display to the user, use getDisplayName() instead.

◆ getGlyph()

Glyph CeresEngine::Font::getGlyph ( StringView glyphName ) const

Returns the named encoded glyph, or –1 if the receiver contains no such glyph.

Returns –1 if the glyph named glyphName isn’t encoded.

Glyph names in fonts do not always accurately identify the glyph. The layout manager, an instance of TextLayoutManager, finds the correspondence between characters and glyphs.

Parameters

glyphName The name of the glyph.

Returns: The named encoded glyph.

◆ getNullGlyph()

UInt32 CeresEngine::Font::getNullGlyph ( ) const

The reserved code for a null glyph.

◆ getNumberOfGlyphs()

UInt32 CeresEngine::Font::getNumberOfGlyphs ( ) const

The number of glyphs in the font. Glyphs are numbered starting at 0.

◆ getPackedAdvancements() [1/2]

Vector< Size2 > CeresEngine::Font::getPackedAdvancements ( const Span< Glyph > & packedGlyphs ) const

Returns an array of the advancements for the specified packed glyphs and rendered by the receiver.

Returns in advancements an array of the advancements for the packed glyphs specified by packedGlyphs and rendered by the receiver.

◆ getPackedAdvancements() [2/2]

void CeresEngine::Font::getPackedAdvancements	(	const Span< Glyph > &	packedGlyphs,
		TemporaryVector< Size2 > &	packedAdvancements
	)		const

◆ getPathForGlyph()

BezierPath CeresEngine::Font::getPathForGlyph ( Glyph glyph ) const

◆ getPointSize()

double CeresEngine::Font::getPointSize ( ) const

The point size of the font.

If the font has a nonstandard matrix, the point size is the effective vertical point size.

◆ getRenderingMode()

FontRenderingMode CeresEngine::Font::getRenderingMode ( ) const

The rendering mode of the font.

For a list of valid rendering modes, see FontRenderingMode.

◆ getUV()

Rect2 CeresEngine::Font::getUV ( Glyph aGlyph ) const

◆ isFixedPitch()

bool CeresEngine::Font::isFixedPitch ( ) const

A Boolean value indicating whether all glyphs in the font have the same advancement.

The value of this property is true when all glyphs have the same advancement or false when they do not.

◆ prepareCharacterSet() [1/2]

void CeresEngine::Font::prepareCharacterSet ( StringView characterSet )

◆ prepareCharacterSet() [2/2]

void CeresEngine::Font::prepareCharacterSet	(	StringView	characterSet,
		double	pointSize,
		const AffineTransform &	transform
	)

Prepares the set of characters in characterSet for rendering.

Parameters

pointSize	The font sie, in points, as used in the layout calculation.
transform	A transform to be applied to the each character `pointSize`.

Returns: The data necessary for rendering each glyph in the character set.

Member Data Documentation

◆ handle

void* CeresEngine::Font::handle

private

◆ image

SPtr<Texture> CeresEngine::Font::image

◆ mFontUnitScale

Vector2 CeresEngine::Font::mFontUnitScale

private

◆ mProperties

FontProperties CeresEngine::Font::mProperties

private

◆ mSize

FontSize CeresEngine::Font::mSize

private

◆ uvMap

Map<Glyph, Rect2> CeresEngine::Font::uvMap

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Text/Font.hpp
