CeresEngine::GraphicsRenderTask Class Reference

#include <CeresEngine/Renderer/RenderGraph/RenderTask.hpp>

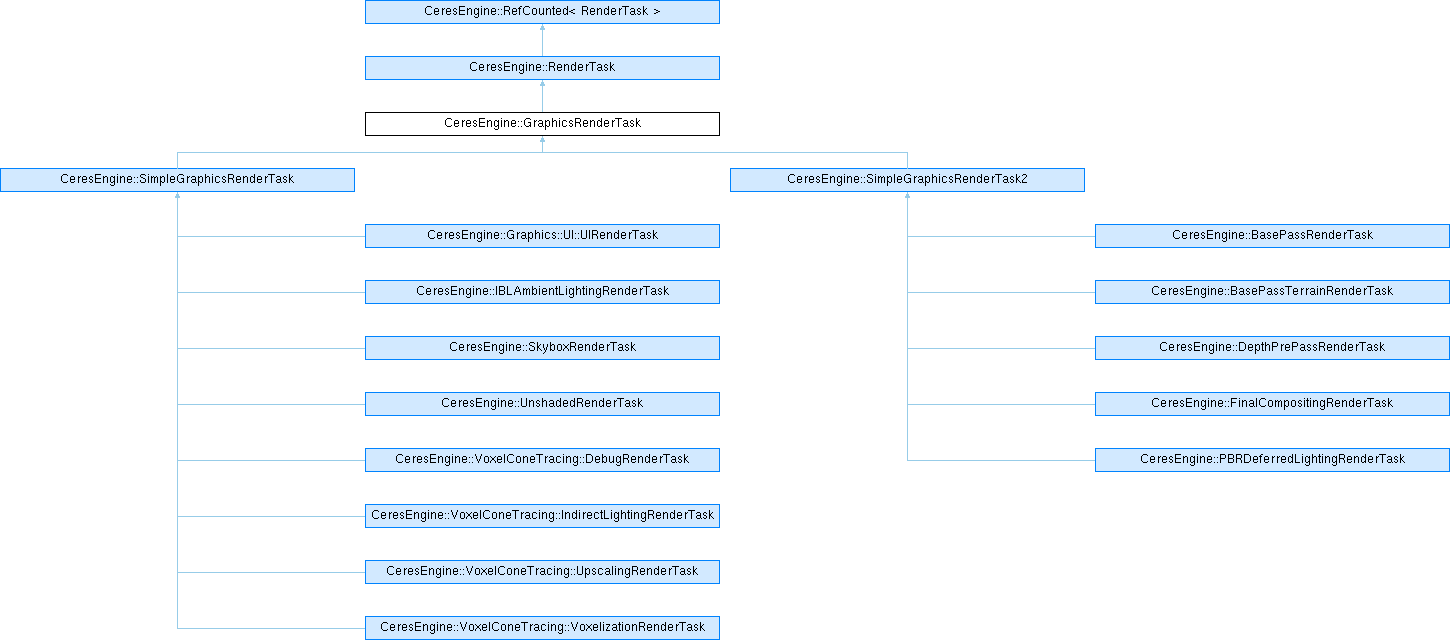

Inheritance diagram for CeresEngine::GraphicsRenderTask:

Public Member Functions
void	execute (RenderGraphContext &context, GPUCommandBuffer &commandBuffer) override
	RenderTask (RenderGraph &renderGraph)
Public Member Functions inherited from CeresEngine::RenderTask
	RenderTask (RenderGraph &renderGraph)
virtual	~RenderTask ()
RenderTaskResourceUsage &	compile ()
	Compiles the render task.
virtual StringView	getName () const
	Returns a display name for the render task.
virtual RenderTaskStatus	check () const
	Returns true if the task is dirty and needs to be run.
virtual Any	getSettings () const
	Gets a const-reference to the render task settings.
virtual Any	getSettings ()
	Gets a reference to the render task settings.
const Vector< InputSlot * > &	getInputs () const
const Vector< OutputSlot * > &	getOutputs () const
const RenderTaskResourceUsage &	getResourceUsage () const
Public Member Functions inherited from CeresEngine::RefCounted< RenderTask >
	RefCounted (Args &&... args)
	Creates a new RefCounted object and constructs a new Deleter by forwarding Args to it.
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Protected Member Functions
virtual void	execute (RenderGraphContext &context, GPUCommandBuffer &commandBuffer, GPURenderTarget &renderTarget)=0
	Executes the graphics render task with the given commandBuffer and renderTarget.
virtual bool	isRenderPassDirty (GPURenderPass &renderPass) const
	Checks if the render pass is dirty and needs to be recreated.
virtual GPURenderPassPtr	createRenderPass (GPUDevice &device)
	Creates a new render pass instance for the render task.
virtual bool	isRenderTargetDirty (GPURenderTarget &renderTarget, GPURenderPass &renderPass) const
	Checks if the render target is dirty and needs to be recreated.
virtual GPURenderTargetPtr	createRenderTarget (GPUDevice &device, GPURenderPass &renderPass)
	Creates a new render target instance for the render task.
Protected Member Functions inherited from CeresEngine::RenderTask
virtual void	compile (RenderTaskCompiler &compiler)=0
	Compiles the render task.
virtual bool	shouldConnect (const Slot &slot, const Slot &targetSlot) const
	An internal method called whenever a new connection is being made.
virtual void	willConnect (Slot &slot, Slot &targetSlot)
	An internal method called before the slot is connected.
virtual void	didConnect (Slot &slot, Connection &connection)
	An internal method called after the slot is connected.
virtual bool	shouldDisconnect (const Slot &slot, const Connection &connection) const
	An internal method called whenever a new disconnection is being made.
virtual void	willDisconnect (Slot &slot, Connection &connection)
	An internal method called before the slot is disconnected.
virtual void	didDisconnect (Slot &slot, Connection &connection)
	An internal method called whenever the slot is disconnected.
ImageRenderResource &	create (const GPUImageDescriptor &descriptor)
BufferRenderResource &	create (const GPUBufferDescriptor &descriptor)

Protected Attributes
GPURenderPassPtr	mRenderPass
	The cached render pass instance.
GPURenderTargetPtr	mRenderTarget
	The cached render target instance.
Protected Attributes inherited from CeresEngine::RenderTask
RenderTaskResourceUsage	mResourceUsage

Member Function Documentation

createRenderPass()

virtual GPURenderPassPtr CeresEngine::GraphicsRenderTask::createRenderPass ( GPUDevice &  device )

protectedvirtual

Creates a new render pass instance for the render task.

Parameters

device

The device in which the implementation should create the render pass instance from.

createRenderTarget()

virtual GPURenderTargetPtr CeresEngine::GraphicsRenderTask::createRenderTarget ( GPUDevice &  device, GPURenderPass &  renderPass  )

protectedvirtual

Creates a new render target instance for the render task.

Parameters

device	The device in which the implementation should create the render target instance from.
renderPass	A reference to the current render pass. The implementation must use this render pass to create the new render target.

execute() [1/2]

void CeresEngine::GraphicsRenderTask::execute ( RenderGraphContext &  context, GPUCommandBuffer &  commandBuffer  )

overridevirtual

Implements CeresEngine::RenderTask.

Reimplemented in CeresEngine::VoxelConeTracing::VoxelizationRenderTask, CeresEngine::SimpleGraphicsRenderTask, CeresEngine::SimpleGraphicsRenderTask2, and CeresEngine::VoxelConeTracing::VoxelizationRenderTask.

execute() [2/2]

virtual void CeresEngine::GraphicsRenderTask::execute ( RenderGraphContext &  context, GPUCommandBuffer &  commandBuffer, GPURenderTarget &  renderTarget  )

protectedpure virtual

Executes the graphics render task with the given commandBuffer and renderTarget.

Parameters

commandBuffer	The command buffer to encode the render task to.
renderTarget	The render target to render to.

Implemented in CeresEngine::SimpleGraphicsRenderTask, CeresEngine::SimpleGraphicsRenderTask2, and CeresEngine::VoxelConeTracing::VoxelizationRenderTask.

isRenderPassDirty()

virtual bool CeresEngine::GraphicsRenderTask::isRenderPassDirty ( GPURenderPass &  renderPass ) const

protectedvirtual

Checks if the render pass is dirty and needs to be recreated.

Parameters

renderPass

A reference to the previous render pass. The implementation can use this to compare the existing render pass to check if it needs to recreate it.

Returns

true if the implementation wishes to recreate the render pass.

isRenderTargetDirty()

virtual bool CeresEngine::GraphicsRenderTask::isRenderTargetDirty ( GPURenderTarget &  renderTarget, GPURenderPass &  renderPass  ) const

protectedvirtual

Checks if the render target is dirty and needs to be recreated.

Parameters

renderTarget	A reference to the previous render target. The implementation can use this to compare the existing render target to check if it needs to recreate it.
renderPass	A reference to the current render pass. The implementation must use this render pass to create the new render target.

Returns

true if the implementation wishes to recreate the render target.

RenderTask()

CeresEngine::RenderTask::RenderTask ( RenderGraph &  renderGraph )

inlineexplicit

Member Data Documentation

mRenderPass

GPURenderPassPtr CeresEngine::GraphicsRenderTask::mRenderPass

protected

The cached render pass instance.

mRenderTarget

GPURenderTargetPtr CeresEngine::GraphicsRenderTask::mRenderTarget

protected

The cached render target instance.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RenderGraph/RenderTask.hpp
