CeresEngine::RenderResource Class Reference

#include <CeresEngine/Renderer/RenderGraph/RenderResource.hpp>

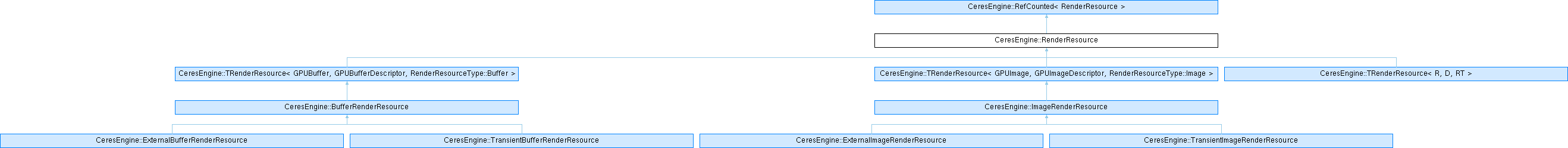

Inheritance diagram for CeresEngine::RenderResource:

Public Member Functions
	RenderResource (RenderGraph &renderGraph)
virtual	~RenderResource ()=default
virtual void	realize (GPUDevice &device)=0
	Realizes the resource.
virtual void	unrealize (GPUDevice &device)=0
	Unrealizes the resource.
virtual bool	isTransient () const =0
virtual bool	isExternal () const =0
virtual bool	isValid () const =0
	operator bool () const
const Vector< RenderTask * > &	getReaders () const
const Vector< RenderTask * > &	getWriters () const
Public Member Functions inherited from CeresEngine::RefCounted< RenderResource >
	RefCounted (Args &&... args)
	Creates a new RefCounted object and constructs a new Deleter by forwarding Args to it.
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Protected Attributes
RenderGraph &	mRenderGraph
	The owning render graph instance.

Private Attributes
Vector< RenderTask * >	mReaders
Vector< RenderTask * >	mWriters

Friends
class	RenderTask

Constructor & Destructor Documentation

RenderResource()

CeresEngine::RenderResource::RenderResource ( RenderGraph &  renderGraph )

inlineexplicit

~RenderResource()

virtual CeresEngine::RenderResource::~RenderResource ( )

virtualdefault

Member Function Documentation

getReaders()

const Vector< RenderTask * > & CeresEngine::RenderResource::getReaders ( ) const

inline

getWriters()

const Vector< RenderTask * > & CeresEngine::RenderResource::getWriters ( ) const

inline

isExternal()

virtual bool CeresEngine::RenderResource::isExternal ( ) const

pure virtual

Returns

true if the resource is external and must be provided externally.

Implemented in CeresEngine::TransientImageRenderResource, CeresEngine::ExternalImageRenderResource, CeresEngine::TransientBufferRenderResource, and CeresEngine::ExternalBufferRenderResource.

isTransient()

virtual bool CeresEngine::RenderResource::isTransient ( ) const

pure virtual

Returns

true if the resource is transient and will be automatically created by the render graph implementation.

Implemented in CeresEngine::TransientImageRenderResource, CeresEngine::ExternalImageRenderResource, CeresEngine::TransientBufferRenderResource, and CeresEngine::ExternalBufferRenderResource.

isValid()

virtual bool CeresEngine::RenderResource::isValid ( ) const

pure virtual

Returns

true if the resource is created and can be used at this moment.

Implemented in CeresEngine::TRenderResource< R, D, RT >, CeresEngine::TRenderResource< GPUBuffer, GPUBufferDescriptor, RenderResourceType::Buffer >, and CeresEngine::TRenderResource< GPUImage, GPUImageDescriptor, RenderResourceType::Image >.

operator bool()

CeresEngine::RenderResource::operator bool ( ) const

inlineexplicit

Returns

true if the resource is created and can be used at this moment.

realize()

virtual void CeresEngine::RenderResource::realize ( GPUDevice &  device )

pure virtual

Realizes the resource.

If the resource is a transient resource, it will be created at this stage. Normally, this method is called before executing the first render tasks that uses it.

Parameters

device

The device to allocate the resource from.

Implemented in CeresEngine::TransientImageRenderResource, CeresEngine::ExternalImageRenderResource, CeresEngine::TransientBufferRenderResource, and CeresEngine::ExternalBufferRenderResource.

unrealize()

virtual void CeresEngine::RenderResource::unrealize ( GPUDevice &  device )

pure virtual

Unrealizes the resource.

If the resource is a transient resource, it will be destroyed at this stage. Normally, this method is called after executing the last render tasks that uses it.

Parameters

device

The device to allocate the resource from.

Implemented in CeresEngine::TransientImageRenderResource, CeresEngine::ExternalImageRenderResource, CeresEngine::TransientBufferRenderResource, and CeresEngine::ExternalBufferRenderResource.

Friends And Related Symbol Documentation

RenderTask

friend class RenderTask

friend

Member Data Documentation

mReaders

Vector<RenderTask*> CeresEngine::RenderResource::mReaders

private

mRenderGraph

RenderGraph& CeresEngine::RenderResource::mRenderGraph

protected

The owning render graph instance.

mWriters

Vector<RenderTask*> CeresEngine::RenderResource::mWriters

private

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RenderGraph/RenderResource.hpp
