#include <CeresEngine/Renderer/RenderGraph/RenderTask.hpp>

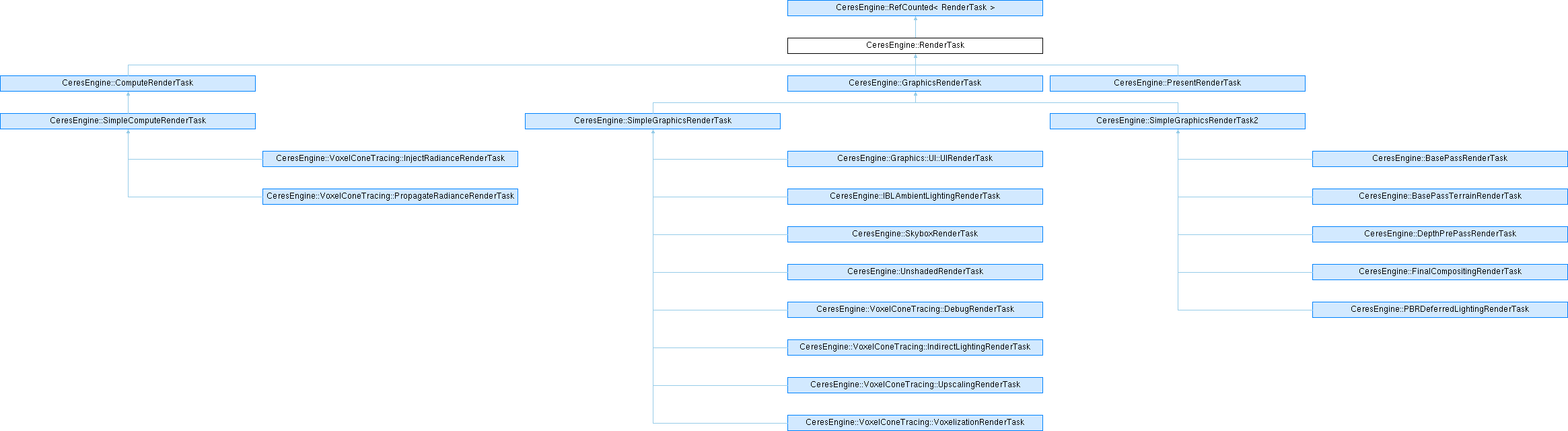

Inheritance diagram for CeresEngine::RenderTask:

Public Member Functions
	RenderTask (RenderGraph &renderGraph)

virtual	~RenderTask ()

RenderTaskResourceUsage &	compile ()
	Compiles the render task.

virtual void	execute (RenderGraphContext &context, GPUCommandBuffer &commandBuffer)=0
	Executes the render task with the given `commandBuffer`.

virtual StringView	getName () const
	Returns a display name for the render task.

virtual RenderTaskStatus	check () const
	Returns true if the task is dirty and needs to be run.

virtual Any	getSettings () const
	Gets a const-reference to the render task settings.

virtual Any	getSettings ()
	Gets a reference to the render task settings.

const Vector< InputSlot * > &	getInputs () const

const Vector< OutputSlot * > &	getOutputs () const

const RenderTaskResourceUsage &	getResourceUsage () const

Public Member Functions inherited from CeresEngine::RefCounted< RenderTask >
	RefCounted (Args &&... args)
	Creates a new `RefCounted` object and constructs a new `Deleter` by forwarding `Args` to it.

void	retain () noexcept
	Retains the object by increment it's reference count by one.

bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Protected Member Functions
virtual void	compile (RenderTaskCompiler &compiler)=0
	Compiles the render task.

virtual bool	shouldConnect (const Slot &slot, const Slot &targetSlot) const
	An internal method called whenever a new connection is being made.

virtual void	willConnect (Slot &slot, Slot &targetSlot)
	An internal method called before the slot is connected.

virtual void	didConnect (Slot &slot, Connection &connection)
	An internal method called after the slot is connected.

virtual bool	shouldDisconnect (const Slot &slot, const Connection &connection) const
	An internal method called whenever a new disconnection is being made.

virtual void	willDisconnect (Slot &slot, Connection &connection)
	An internal method called before the slot is disconnected.

virtual void	didDisconnect (Slot &slot, Connection &connection)
	An internal method called whenever the slot is disconnected.

ImageRenderResource &	create (const GPUImageDescriptor &descriptor)

BufferRenderResource &	create (const GPUBufferDescriptor &descriptor)

Protected Attributes
RenderTaskResourceUsage	mResourceUsage

Private Attributes
RenderGraph &	mRenderGraph

Vector< InputSlot * >	mInputs

Vector< OutputSlot * >	mOutputs

Friends
class	RenderGraph

class	Slot

class	InputSlot

class	OutputSlot

Constructor & Destructor Documentation

◆ RenderTask()

CeresEngine::RenderTask::RenderTask ( RenderGraph & renderGraph )

inlineexplicit

◆ ~RenderTask()

virtual CeresEngine::RenderTask::~RenderTask ( )

virtual

Member Function Documentation

◆ check()

virtual RenderTaskStatus CeresEngine::RenderTask::check ( ) const

inlinevirtual

Returns true if the task is dirty and needs to be run.

◆ compile() [1/2]

RenderTaskResourceUsage & CeresEngine::RenderTask::compile ( )

Compiles the render task.

◆ compile() [2/2]

virtual void CeresEngine::RenderTask::compile ( RenderTaskCompiler & compiler )

protectedpure virtual

Compiles the render task.

◆ create() [1/2]

BufferRenderResource & CeresEngine::RenderTask::create ( const GPUBufferDescriptor & descriptor )

protected

◆ create() [2/2]

ImageRenderResource & CeresEngine::RenderTask::create ( const GPUImageDescriptor & descriptor )

protected

◆ didConnect()

virtual void CeresEngine::RenderTask::didConnect	(	Slot &	slot,
		Connection &	connection
	)

protectedvirtual

An internal method called after the slot is connected.

◆ didDisconnect()

virtual void CeresEngine::RenderTask::didDisconnect	(	Slot &	slot,
		Connection &	connection
	)

protectedvirtual

An internal method called whenever the slot is disconnected.

◆ execute()

virtual void CeresEngine::RenderTask::execute	(	RenderGraphContext &	context,
		GPUCommandBuffer &	commandBuffer
	)

pure virtual

Executes the render task with the given commandBuffer.

Parameters

commandBuffer The command buffer to encode the render task to.

Implemented in CeresEngine::PresentRenderTask, CeresEngine::VoxelConeTracing::VoxelizationRenderTask, CeresEngine::VoxelConeTracing::InjectRadianceRenderTask, CeresEngine::VoxelConeTracing::PropagateRadianceRenderTask, CeresEngine::GraphicsRenderTask, CeresEngine::SimpleComputeRenderTask, CeresEngine::SimpleGraphicsRenderTask, CeresEngine::SimpleGraphicsRenderTask2, and CeresEngine::VoxelConeTracing::VoxelizationRenderTask.

◆ getInputs()

const Vector< InputSlot * > & CeresEngine::RenderTask::getInputs ( ) const

inline

◆ getName()

virtual StringView CeresEngine::RenderTask::getName ( ) const

inlinevirtual

Returns a display name for the render task.

Reimplemented in CeresEngine::SimpleGraphicsRenderTask, CeresEngine::SimpleGraphicsRenderTask2, and CeresEngine::SimpleComputeRenderTask.

◆ getOutputs()

const Vector< OutputSlot * > & CeresEngine::RenderTask::getOutputs ( ) const

inline

◆ getResourceUsage()

const RenderTaskResourceUsage & CeresEngine::RenderTask::getResourceUsage ( ) const

inline

◆ getSettings() [1/2]

virtual Any CeresEngine::RenderTask::getSettings ( )

inlinevirtual

Gets a reference to the render task settings.

◆ getSettings() [2/2]

virtual Any CeresEngine::RenderTask::getSettings ( ) const

inlinevirtual

Gets a const-reference to the render task settings.

◆ shouldConnect()

virtual bool CeresEngine::RenderTask::shouldConnect	(	const Slot &	slot,
		const Slot &	targetSlot
	)		const

inlineprotectedvirtual

An internal method called whenever a new connection is being made.

The slot implementation can use this method to refuse connections.

◆ shouldDisconnect()

virtual bool CeresEngine::RenderTask::shouldDisconnect	(	const Slot &	slot,
		const Connection &	connection
	)		const

inlineprotectedvirtual

An internal method called whenever a new disconnection is being made.

The slot implementation can use this method to refuse disconnections.

◆ willConnect()

virtual void CeresEngine::RenderTask::willConnect	(	Slot &	slot,
		Slot &	targetSlot
	)

inlineprotectedvirtual

An internal method called before the slot is connected.

◆ willDisconnect()

virtual void CeresEngine::RenderTask::willDisconnect	(	Slot &	slot,
		Connection &	connection
	)

inlineprotectedvirtual

An internal method called before the slot is disconnected.

Friends And Related Symbol Documentation

◆ InputSlot

friend class InputSlot

friend

◆ OutputSlot

friend class OutputSlot

friend

◆ RenderGraph

friend class RenderGraph

friend

◆ Slot

friend class Slot

friend

Member Data Documentation

◆ mInputs

Vector<InputSlot*> CeresEngine::RenderTask::mInputs

private

◆ mOutputs

Vector<OutputSlot*> CeresEngine::RenderTask::mOutputs

private

◆ mRenderGraph

RenderGraph& CeresEngine::RenderTask::mRenderGraph

private

◆ mResourceUsage

RenderTaskResourceUsage CeresEngine::RenderTask::mResourceUsage

protected

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RenderGraph/RenderTask.hpp
