CeresEngine::RendererCamera Class Reference

A class that represents a camera inside the renderer. More...

#include <CeresEngine/Renderer/RendererCamera.hpp>

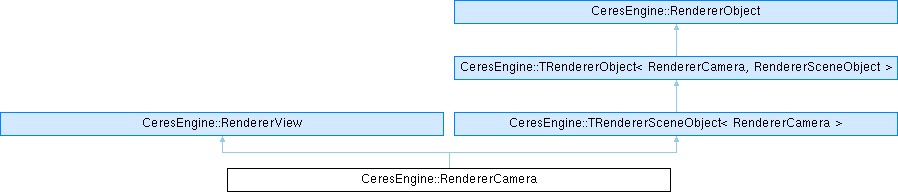

Inheritance diagram for CeresEngine::RendererCamera:

Public Member Functions
	RendererCamera (RendererCameraManager &manager, RendererScene &scene)
	Creates a new RendererCamera.
	~RendererCamera () noexcept override
	Destroys the renderer camera and releases any renderer (and RenderAPI)-related resources.
void	synchronize (const Transform &transform, const CameraComponent &component)
	Update the renderer camera with data from a transform and the component.
void	prepare (RendererContext &context) final
	Prepares the camera for the rendering of the current frame.
RendererScene &	getScene () const final
const CameraComponent &	getComponent () const noexcept
	A copy of the latest camera component.
const RendererCameraSettings &	getSettings () const final
const RendererCameraFlags &	getFlags () const noexcept
	A set of flags that customize and represent the state of the object.
void	setFlags (const RendererCameraFlags &flags)
	A set of flags that customize and represent the state of the object.
const RendererCameraDirtyFlags &	getDirtyFlags () const noexcept
	A set of flags that represent the dirty portions of the object.
bool	isDirty () const noexcept
	If set to true, the camera is dirty and needs to be synchronized from the entity.
void	markAsDirty (const RendererCameraDirtyFlags &flags=RendererCameraDirtyFlag::All) noexcept
	If set to true, the camera is dirty and needs to be synchronized from the entity.
const RendererCameraInfo &	getViewInfo () const final
	A structure that holds renderer-specific information for the view.
RendererCameraInfo &	getViewInfo () final
	A structure that holds renderer-specific information for the view.
const GPUBindlessBuffer &	getUniformBuffer () const final
	The uniform buffer storing the view GPU parameters used by the renderer.
const GPUImagePtr &	getRenderImage () const final
	The render target that the view should render to.
const ConvexVolume &	getFrustumVolume () const final
	Returns the latest view frustum volume, used to perform frustum culling.
Public Member Functions inherited from CeresEngine::RendererView
	RendererView ()
	Creates a new RendererView.
virtual	~RendererView ()
	Destroys the RendererView and releases any renderer (and RenderAPI)-related resources.
RenderGraph *	getRenderGraph () const noexcept
	The render graph instance used to render the view.
Public Member Functions inherited from CeresEngine::TRendererSceneObject< RendererCamera >
	TRendererSceneObject (Args &&... args)
	Creates a new TRendererSceneObject instance.
	~TRendererSceneObject () noexcept override
	Destroys an existing TRendererSceneObject instance.
Public Member Functions inherited from CeresEngine::TRendererObject< SelfType, BaseType >
template<typename... Args>
	TRendererObject (ManagerType &manager, Args &&... args)
	Creates a new TRendererObject instance.
void	destroy () noexcept override
	Destroys the RendererObject.
ManagerType &	getManager () const noexcept
	The owning object manager.
Public Member Functions inherited from CeresEngine::RendererObject
	RendererObject ()=default
	Creates a new RendererObject instance.
virtual	~RendererObject () noexcept=default
	Destroys an existing RendererObject instance.
RendererObjectID	getID () const noexcept
	An identifier that uniquely identifies this object in the renderer.

Private Types
using	super = TRendererSceneObject< RendererCamera >

Private Attributes
CameraComponent	mComponent
	A copy of the latest camera component.
RendererCameraFlags	mFlags
	A set of flags that customize and represent the state of the object.
RendererCameraDirtyFlags	mDirtyFlags = RendererCameraDirtyFlag::All
	A set of flags that represent the dirty portions of the object.
bool	mDirty = true
	If set to true, the camera is dirty and needs to be synchronized from the entity.
RendererCameraInfo	mInfo
	A structure that holds renderer-specific information for the camera.
RendererCameraParams	mParameters
	The GPU parameters. Will be copied to the GPU uniform buffer.
GPUDynamicBindlessBuffer< RendererCameraParams >	mUniformBuffer
	The uniform buffer storing the camera GPU parameters used by the renderer.

Friends
class	RendererCameraManager

Additional Inherited Members
Public Attributes inherited from CeresEngine::RendererObject
Event< void(RendererObjectID newID)>	willChangeID
	An event called whenever the object is about to change it's ID.
Event< void(RendererObjectID oldID)>	didChangeID
	An event called whenever the object changes it's ID.
Protected Member Functions inherited from CeresEngine::RendererView
virtual void	createRenderGraph ()
	Creates a new RenderGraph instance for the view.
Protected Attributes inherited from CeresEngine::TRendererObject< SelfType, BaseType >
ManagerType &	mManager
	The owning object manager.
Protected Attributes inherited from CeresEngine::RendererObject
RendererObjectID	mID
	An identifier that uniquely identifies this object in the renderer.

Detailed Description

A class that represents a camera inside the renderer.

Member Typedef Documentation

super

using CeresEngine::RendererCamera::super = TRendererSceneObject<RendererCamera>

private

Constructor & Destructor Documentation

RendererCamera()

CeresEngine::RendererCamera::RendererCamera ( RendererCameraManager &  manager, RendererScene &  scene  )

explicit

Creates a new RendererCamera.

Parameters

manager	The owning manager.
scene	A reference to the owning scene.

~RendererCamera()

CeresEngine::RendererCamera::~RendererCamera ( )

overridenoexcept

Destroys the renderer camera and releases any renderer (and RenderAPI)-related resources.

Member Function Documentation

getComponent()

const CameraComponent & CeresEngine::RendererCamera::getComponent ( ) const

inlinenoexcept

A copy of the latest camera component.

getDirtyFlags()

const RendererCameraDirtyFlags & CeresEngine::RendererCamera::getDirtyFlags ( ) const

inlinenoexcept

A set of flags that represent the dirty portions of the object.

getFlags()

const RendererCameraFlags & CeresEngine::RendererCamera::getFlags ( ) const

inlinenoexcept

A set of flags that customize and represent the state of the object.

getFrustumVolume()

const ConvexVolume & CeresEngine::RendererCamera::getFrustumVolume ( ) const

inlinefinalvirtual

Returns the latest view frustum volume, used to perform frustum culling.

Implements CeresEngine::RendererView.

getRenderImage()

const GPUImagePtr & CeresEngine::RendererCamera::getRenderImage ( ) const

inlinefinalvirtual

The render target that the view should render to.

Implements CeresEngine::RendererView.

getScene()

RendererScene & CeresEngine::RendererCamera::getScene ( ) const

inlinefinalvirtual

Implements CeresEngine::RendererView.

getSettings()

const RendererCameraSettings & CeresEngine::RendererCamera::getSettings ( ) const

inlinefinalvirtual

Implements CeresEngine::RendererView.

getUniformBuffer()

const GPUBindlessBuffer & CeresEngine::RendererCamera::getUniformBuffer ( ) const

inlinefinalvirtual

The uniform buffer storing the view GPU parameters used by the renderer.

Implements CeresEngine::RendererView.

getViewInfo() [1/2]

const RendererCameraInfo & CeresEngine::RendererCamera::getViewInfo ( ) const

inlinefinalvirtual

A structure that holds renderer-specific information for the view.

Implements CeresEngine::RendererView.

getViewInfo() [2/2]

RendererCameraInfo & CeresEngine::RendererCamera::getViewInfo ( )

inlinefinalvirtual

A structure that holds renderer-specific information for the view.

Implements CeresEngine::RendererView.

isDirty()

bool CeresEngine::RendererCamera::isDirty ( ) const

inlinenoexcept

If set to true, the camera is dirty and needs to be synchronized from the entity.

markAsDirty()

void CeresEngine::RendererCamera::markAsDirty ( const RendererCameraDirtyFlags &  flags = RendererCameraDirtyFlag::All )

noexcept

If set to true, the camera is dirty and needs to be synchronized from the entity.

prepare()

void CeresEngine::RendererCamera::prepare ( RendererContext &  context )

finalvirtual

Prepares the camera for the rendering of the current frame.

This will update uniform buffers and perform any other necessary operations necessary for rendering.

Parameters

context

A context struct that contains parameters given by the renderer.

Reimplemented from CeresEngine::RendererView.

setFlags()

void CeresEngine::RendererCamera::setFlags

(

const RendererCameraFlags &

flags

)

A set of flags that customize and represent the state of the object.

synchronize()

void CeresEngine::RendererCamera::synchronize	(	const Transform &	transform,
		const CameraComponent &	component
	)

Update the renderer camera with data from a transform and the component.

Note

This method is usually called from RenderingSystem during a synchronization point.

Parameters

transform	The camera transform.
component	The camera component.

Friends And Related Symbol Documentation

RendererCameraManager

friend class RendererCameraManager

friend

Member Data Documentation

mComponent

CameraComponent CeresEngine::RendererCamera::mComponent

private

A copy of the latest camera component.

mDirty

bool CeresEngine::RendererCamera::mDirty = true

private

If set to true, the camera is dirty and needs to be synchronized from the entity.

mDirtyFlags

RendererCameraDirtyFlags CeresEngine::RendererCamera::mDirtyFlags = RendererCameraDirtyFlag::All

private

A set of flags that represent the dirty portions of the object.

mFlags

RendererCameraFlags CeresEngine::RendererCamera::mFlags

private

A set of flags that customize and represent the state of the object.

mInfo

RendererCameraInfo CeresEngine::RendererCamera::mInfo

private

A structure that holds renderer-specific information for the camera.

mParameters

RendererCameraParams CeresEngine::RendererCamera::mParameters

private

The GPU parameters. Will be copied to the GPU uniform buffer.

mUniformBuffer

GPUDynamicBindlessBuffer<RendererCameraParams> CeresEngine::RendererCamera::mUniformBuffer

private

The uniform buffer storing the camera GPU parameters used by the renderer.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RendererCamera.hpp
