CeresEngine::Shader Class Reference

A resource that represents a shader that can be compiled and loaded into the runtime. More...

#include <CeresEngine/Material/Shader.hpp>

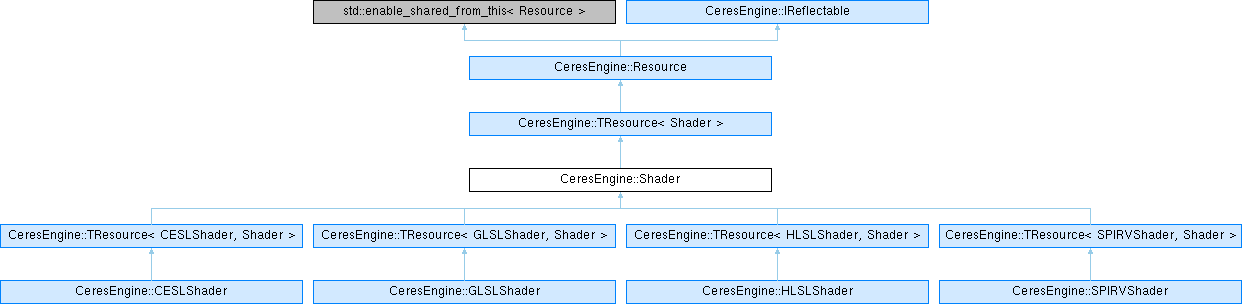

Inheritance diagram for CeresEngine::Shader:

Public Member Functions
	Shader ()=default
	Shader (const ShaderSource &source, const ShaderStages &stage)
	~Shader () noexcept override=default
const ShaderSource &	getSource () const noexcept
	The shader source to compile the final shader to.
void	setSource (const ShaderSource &source)
	The shader source to compile the final shader to.
virtual ShadingLanguage	getShadingLanguage () const noexcept=0
	Specifies the shading language of the shader resource.
virtual Optional< ShaderBinary >	compile (ShaderType type, const ShaderSpecializationConstants &specializationConstants={}) const =0
	Compiles the shader into a binary that can be loaded by the render API.
Async< Optional< ShaderBinary > >	compileAsync (ShaderType type, ShaderSpecializationConstants specializationConstants={})
	Asynchronously compiles the shader into a binary that can be loaded by the render API.
String	getSourceName () const
	Gets the shader source name.
Public Member Functions inherited from CeresEngine::TResource< Shader >
ResourceHandle< Shader >	getResourceHandle () const noexcept
	Generates a hash for the provided type.
SPtr< Shader >	getShared () noexcept
	Gets a shared pointer to the resource.
SPtr< const Shader >	getShared () const noexcept
	Gets a shared pointer to the resource.
const ResourceTypeInfo &	getResourceType () const noexcept override
	Returns the resource type information descriptor.
	TResource (ResourceData &data, InputStream &dataStream)
void	serialize (OutputStream &dataStream) const override
	Serializes a resource by writing data to dataStream.
Public Member Functions inherited from CeresEngine::Resource
	Resource ()
	Default constructor for the Resource class.
	Resource (ResourceData &data)
	Creates a new Resource instance by passing a ResourceData instance.
virtual	~Resource () noexcept=default
	Resource virtual destructor.
ResourceManager *	getResourceManager () const noexcept
HResource	getResourceHandle () const noexcept
	Generates a hash for the provided type.
UUID	getResourceID () const noexcept
HResource	getParentResource () const noexcept
	A parent resource to which this resource is attached to.
SPtr< ResourceMetadata >	getResourceMetadata () const noexcept
	A pointer to the user-defined resource metadata.
const PackagePtr &	getPackage () const noexcept
	The package from which the resource was loaded from.
template<typename T = Resource>
SPtr< T >	getShared () noexcept
	Gets a shared pointer to the resource.
template<typename T = Resource>
SPtr< const T >	getShared () const noexcept
	Gets a shared pointer to the resource.
	Resource (ResourceData &data, InputStream &dataStream)
	Creates a new resource by reading data from dataStream.
Public Member Functions inherited from CeresEngine::IReflectable
virtual	~IReflectable () noexcept=default

Protected Member Functions
ShaderSource	preProcessShader (const ShaderSource &sourceCode, const ShaderSpecializationConstants &specializationConstants, const URI &includeSearchPath) const
	Runs the shader pre-processor on the shader.
Optional< ShaderBinary >	compileShaderInternal (const ShaderSource &sourceCode, ShadingLanguage language, const URI &includeSearchPath) const
	Internal method to compile the given shaderSource using the ShaderC compiler.
Protected Member Functions inherited from CeresEngine::Resource
HResourceStream	createStream (const ResourceStreamFlags &flags=ResourceStreamFlag::Default)
	Creates a new resource stream.
void	destroyStream (HResourceStream &stream)
	Destroys a stream.
void	markAsDirty ()
	Marks the resource as dirty.

Protected Attributes
ShaderStages	mStages
	A set of stages supported by the shader.
ShaderSource	mSource = ShaderSource(ShaderType::Undefined, "")
	The shader source to compile the final shader to.

Friends
class	TUserTypeInfo< Shader >

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::Resource
template<typename Processor >
static constexpr void	reflect (Processor &&RTTI)
	Executes the given processor for every field of the struct.

Detailed Description

A resource that represents a shader that can be compiled and loaded into the runtime.

Constructor & Destructor Documentation

Shader() [1/2]

CeresEngine::Shader::Shader ( )

explicitdefault

Shader() [2/2]

CeresEngine::Shader::Shader ( const ShaderSource &  source, const ShaderStages &  stage  )

explicit

~Shader()

CeresEngine::Shader::~Shader ( )

overridedefaultnoexcept

Member Function Documentation

compile()

virtual Optional< ShaderBinary > CeresEngine::Shader::compile ( ShaderType  type, const ShaderSpecializationConstants &  specializationConstants = {}  ) const

pure virtual

Compiles the shader into a binary that can be loaded by the render API.

Parameters

type	The type of shader to compile.

Implemented in CeresEngine::CESLShader, CeresEngine::HLSLShader, CeresEngine::GLSLShader, and CeresEngine::SPIRVShader.

compileAsync()

Async< Optional< ShaderBinary > > CeresEngine::Shader::compileAsync	(	ShaderType	type,
		ShaderSpecializationConstants	specializationConstants = {}
	)

Asynchronously compiles the shader into a binary that can be loaded by the render API.

Parameters

type	The type of shader to compile.

compileShaderInternal()

Optional< ShaderBinary > CeresEngine::Shader::compileShaderInternal ( const ShaderSource &  sourceCode, ShadingLanguage  language, const URI &  includeSearchPath  ) const

protected

Internal method to compile the given shaderSource using the ShaderC compiler.

Parameters

sourceCode	The shader source code to be compiled.
language	The language to interpret the source as.
includeSearchPath	The URL of the include search path. Can be a relative URL, in that case the URL will be resolved in relation to the resource manager base URL.

Returns

A shader binary with the results of compiling the shader.

getShadingLanguage()

virtual ShadingLanguage CeresEngine::Shader::getShadingLanguage ( ) const

pure virtualnoexcept

Specifies the shading language of the shader resource.

Implemented in CeresEngine::CESLShader, CeresEngine::HLSLShader, CeresEngine::GLSLShader, and CeresEngine::SPIRVShader.

getSource()

const ShaderSource & CeresEngine::Shader::getSource ( ) const

inlinenoexcept

The shader source to compile the final shader to.

getSourceName()

String CeresEngine::Shader::getSourceName

(

)

const

Gets the shader source name.

preProcessShader()

ShaderSource CeresEngine::Shader::preProcessShader ( const ShaderSource &  sourceCode, const ShaderSpecializationConstants &  specializationConstants, const URI &  includeSearchPath  ) const

protected

Runs the shader pre-processor on the shader.

Parameters

sourceCode	The shader source code to be pre-processed.
specializationConstants	The shader specialization constants to be used when pre-processing the shader.
includeSearchPath	The URL of the include search path. Can be a relative URL, in that case the URL will be resolved in relation to the resource manager base URL.

Returns

The pre-processed shader source.

setSource()

void CeresEngine::Shader::setSource

(

const ShaderSource &

source

)

The shader source to compile the final shader to.

Friends And Related Symbol Documentation

TUserTypeInfo< Shader >

friend class TUserTypeInfo< Shader >

friend

Member Data Documentation

mSource

ShaderSource CeresEngine::Shader::mSource = ShaderSource(ShaderType::Undefined, "")

protected

The shader source to compile the final shader to.

mStages

ShaderStages CeresEngine::Shader::mStages

protected

A set of stages supported by the shader.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Material/Shader.hpp
