#include <CeresEngine/Renderer/RenderGraph/RenderTask.hpp>

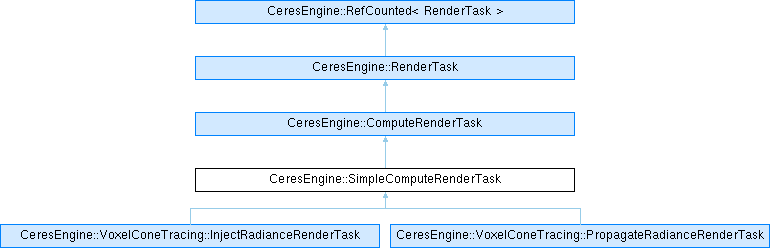

Inheritance diagram for CeresEngine::SimpleComputeRenderTask:

Public Member Functions
	SimpleComputeRenderTask (RenderGraph &renderGraph, const String &name)

void	execute (RenderGraphContext &context, GPUCommandBuffer &commandBuffer) override

StringView	getName () const override
	Returns a display name for the render task.

Public Member Functions inherited from CeresEngine::ComputeRenderTask
	RenderTask (RenderGraph &renderGraph)

Public Member Functions inherited from CeresEngine::RenderTask
	RenderTask (RenderGraph &renderGraph)

virtual	~RenderTask ()

RenderTaskResourceUsage &	compile ()
	Compiles the render task.

virtual RenderTaskStatus	check () const
	Returns true if the task is dirty and needs to be run.

virtual Any	getSettings () const
	Gets a const-reference to the render task settings.

virtual Any	getSettings ()
	Gets a reference to the render task settings.

const Vector< InputSlot * > &	getInputs () const

const Vector< OutputSlot * > &	getOutputs () const

const RenderTaskResourceUsage &	getResourceUsage () const

Public Member Functions inherited from CeresEngine::RefCounted< RenderTask >
	RefCounted (Args &&... args)
	Creates a new `RefCounted` object and constructs a new `Deleter` by forwarding `Args` to it.

void	retain () noexcept
	Retains the object by increment it's reference count by one.

bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Protected Member Functions
virtual void	initialize (GPUDevice &device)
	Perform a sequence of steps that initialize the compute render task.

virtual void	execute (RenderGraphContext &context, GPUCommandBuffer &commandBuffer, GPUComputePipeline &pipeline)=0
	Executes the compute render task with the given `commandBuffer`, `pipeline` and `renderTarget`.

virtual bool	isComputePipelineDirty (GPUComputePipeline &computePipeline) const
	Checks if the compute pipeline is dirty and needs to be recreated.

virtual GPUComputePipelinePtr	createComputePipeline (GPUDevice &device)=0
	Creates a new compute pipeline instance for the render task.

Protected Member Functions inherited from CeresEngine::RenderTask
virtual void	compile (RenderTaskCompiler &compiler)=0
	Compiles the render task.

virtual bool	shouldConnect (const Slot &slot, const Slot &targetSlot) const
	An internal method called whenever a new connection is being made.

virtual void	willConnect (Slot &slot, Slot &targetSlot)
	An internal method called before the slot is connected.

virtual void	didConnect (Slot &slot, Connection &connection)
	An internal method called after the slot is connected.

virtual bool	shouldDisconnect (const Slot &slot, const Connection &connection) const
	An internal method called whenever a new disconnection is being made.

virtual void	willDisconnect (Slot &slot, Connection &connection)
	An internal method called before the slot is disconnected.

virtual void	didDisconnect (Slot &slot, Connection &connection)
	An internal method called whenever the slot is disconnected.

ImageRenderResource &	create (const GPUImageDescriptor &descriptor)

BufferRenderResource &	create (const GPUBufferDescriptor &descriptor)

Private Attributes
String	mName
	A display name for the render task.

GPUComputePipelinePtr	mPipeline
	The cached compute pipeline instance.

bool	mInitialized = false
	A flag that indicates if the render task initializer has been called.

Additional Inherited Members
Protected Attributes inherited from CeresEngine::RenderTask
RenderTaskResourceUsage	mResourceUsage

Constructor & Destructor Documentation

◆ SimpleComputeRenderTask()

CeresEngine::SimpleComputeRenderTask::SimpleComputeRenderTask	(	RenderGraph &	renderGraph,
		const String &	name
	)

inlineexplicit

Member Function Documentation

◆ createComputePipeline()

virtual GPUComputePipelinePtr CeresEngine::SimpleComputeRenderTask::createComputePipeline ( GPUDevice & device )

protectedpure virtual

Creates a new compute pipeline instance for the render task.

Parameters

device The device in which the implementation should create the compute pipeline instance from.

Implemented in CeresEngine::VoxelConeTracing::InjectRadianceRenderTask, and CeresEngine::VoxelConeTracing::PropagateRadianceRenderTask.

◆ execute() [1/2]

void CeresEngine::SimpleComputeRenderTask::execute	(	RenderGraphContext &	context,
		GPUCommandBuffer &	commandBuffer
	)

overridevirtual

Implements CeresEngine::RenderTask.

◆ execute() [2/2]

virtual void CeresEngine::SimpleComputeRenderTask::execute	(	RenderGraphContext &	context,
		GPUCommandBuffer &	commandBuffer,
		GPUComputePipeline &	pipeline
	)

protectedpure virtual

Executes the compute render task with the given commandBuffer, pipeline and renderTarget.

Parameters

commandBuffer	The command buffer to encode the render task to.
pipeline	The compute pipeline for the task.

Implemented in CeresEngine::VoxelConeTracing::InjectRadianceRenderTask, and CeresEngine::VoxelConeTracing::PropagateRadianceRenderTask.

◆ getName()

StringView CeresEngine::SimpleComputeRenderTask::getName ( ) const

inlineoverridevirtual

Returns a display name for the render task.

Reimplemented from CeresEngine::RenderTask.

◆ initialize()

virtual void CeresEngine::SimpleComputeRenderTask::initialize ( GPUDevice & device )

inlineprotectedvirtual

Perform a sequence of steps that initialize the compute render task.

These operations are only executed once in the first execution.

Reimplemented in CeresEngine::VoxelConeTracing::InjectRadianceRenderTask, and CeresEngine::VoxelConeTracing::PropagateRadianceRenderTask.

◆ isComputePipelineDirty()

virtual bool CeresEngine::SimpleComputeRenderTask::isComputePipelineDirty ( GPUComputePipeline & computePipeline ) const

inlineprotectedvirtual

Checks if the compute pipeline is dirty and needs to be recreated.

Parameters

computePipeline A reference to the previous compute pipeline. The implementation can use this to compare the existing pipeline to check if it needs to recreate it.

Returns: true if the implementation wishes to recreate the compute pipeline.

Member Data Documentation

◆ mInitialized

bool CeresEngine::SimpleComputeRenderTask::mInitialized = false

private

A flag that indicates if the render task initializer has been called.

◆ mName

String CeresEngine::SimpleComputeRenderTask::mName

private

A display name for the render task.

◆ mPipeline

GPUComputePipelinePtr CeresEngine::SimpleComputeRenderTask::mPipeline

private

The cached compute pipeline instance.

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Renderer/RenderGraph/RenderTask.hpp
