CeresEngine::Texture Class Reference

A texture that can be imported into the renderer. More...

#include <CeresEngine/Texture/Texture.hpp>

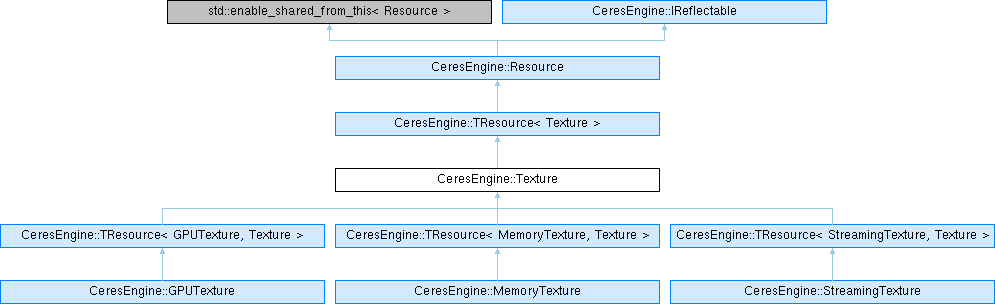

Inheritance diagram for CeresEngine::Texture:

Public Member Functions
	Texture (const TextureProperties &properties)
	Creates a new texture.
	Texture (ResourceData &resourceData, const TextureProperties &properties)
	Creates a new texture.
	~Texture () noexcept override
	Destroys the texture object.
bool	isStreaming () const noexcept
	Determines if the texture is a streaming texture.
const TextureProperties &	getProperties () const noexcept
	A structure that describes properties of an texture.
const TExtent3< UInt32 > &	getExtent () const noexcept
	Texture extent.
Format	getFormat () const noexcept
	Hardware texture format. By default Format::RGBA8UNorm.
virtual Async< Bitmap >	getBitmap (UInt32 layer=0, UInt32 mip=0) const =0
	Gets a bitmap pixel data for the given layer and mip level.
virtual Async	setBitmap (const Bitmap &bitmap, UInt32 layer=0, UInt32 mip=0)=0
	Sets a new bitmap pixel data for the given layer and mip level.
Public Member Functions inherited from CeresEngine::TResource< Texture >
ResourceHandle< Texture >	getResourceHandle () const noexcept
	Generates a hash for the provided type.
SPtr< Texture >	getShared () noexcept
	Gets a shared pointer to the resource.
SPtr< const Texture >	getShared () const noexcept
	Gets a shared pointer to the resource.
const ResourceTypeInfo &	getResourceType () const noexcept override
	Returns the resource type information descriptor.
	TResource (ResourceData &data, InputStream &dataStream)
void	serialize (OutputStream &dataStream) const override
	Serializes a resource by writing data to dataStream.
Public Member Functions inherited from CeresEngine::Resource
	Resource ()
	Default constructor for the Resource class.
	Resource (ResourceData &data)
	Creates a new Resource instance by passing a ResourceData instance.
virtual	~Resource () noexcept=default
	Resource virtual destructor.
ResourceManager *	getResourceManager () const noexcept
HResource	getResourceHandle () const noexcept
	Generates a hash for the provided type.
UUID	getResourceID () const noexcept
HResource	getParentResource () const noexcept
	A parent resource to which this resource is attached to.
SPtr< ResourceMetadata >	getResourceMetadata () const noexcept
	A pointer to the user-defined resource metadata.
const PackagePtr &	getPackage () const noexcept
	The package from which the resource was loaded from.
template<typename T = Resource>
SPtr< T >	getShared () noexcept
	Gets a shared pointer to the resource.
template<typename T = Resource>
SPtr< const T >	getShared () const noexcept
	Gets a shared pointer to the resource.
	Resource (ResourceData &data, InputStream &dataStream)
	Creates a new resource by reading data from dataStream.
Public Member Functions inherited from CeresEngine::IReflectable
virtual	~IReflectable () noexcept=default

Protected Attributes
TextureProperties	mProperties
	A structure that describes properties of an texture.

Private Types
using	super = TResource< Texture >

Friends
class	TUserTypeInfo< Texture >

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::Resource
template<typename Processor >
static constexpr void	reflect (Processor &&RTTI)
	Executes the given processor for every field of the struct.
Protected Member Functions inherited from CeresEngine::Resource
HResourceStream	createStream (const ResourceStreamFlags &flags=ResourceStreamFlag::Default)
	Creates a new resource stream.
void	destroyStream (HResourceStream &stream)
	Destroys a stream.
void	markAsDirty ()
	Marks the resource as dirty.

Detailed Description

A texture that can be imported into the renderer.

Member Typedef Documentation

super

using CeresEngine::Texture::super = TResource<Texture>

private

Constructor & Destructor Documentation

Texture() [1/2]

CeresEngine::Texture::Texture ( const TextureProperties &  properties )

explicit

Creates a new texture.

Parameters

properties

The texture properties to initialize with.

Texture() [2/2]

CeresEngine::Texture::Texture ( ResourceData &  resourceData, const TextureProperties &  properties  )

explicit

Creates a new texture.

Parameters

properties

The texture properties to initialize with.

~Texture()

CeresEngine::Texture::~Texture ( )

overridenoexcept

Destroys the texture object.

Member Function Documentation

getBitmap()

virtual Async< Bitmap > CeresEngine::Texture::getBitmap ( UInt32  layer = 0, UInt32  mip = 0  ) const

pure virtual

Gets a bitmap pixel data for the given layer and mip level.

If either the layer (or mip level) are missing, a null pixel data is returned.

Implemented in CeresEngine::MemoryTexture, CeresEngine::StreamingTexture, and CeresEngine::GPUTexture.

getExtent()

const TExtent3< UInt32 > & CeresEngine::Texture::getExtent ( ) const

inlinenoexcept

Texture extent.

By default (1, 1, 1).

Remarks

The height component is only used for 2D, 3D, and Cube textures (i.e. TextureType::Texture2D, TextureType::Texture2DArray, TextureType::Texture3D, TextureType::TextureCube, TextureType::TextureCubeArray, TextureType::Texture2DMS, TextureType::Texture2DMSArray). The depth component is only used for 3D textures (i.e. TextureType::Texture3D). For cube textures, the width and height component must be equal.

getFormat()

Format CeresEngine::Texture::getFormat ( ) const

inlinenoexcept

Hardware texture format. By default Format::RGBA8UNorm.

getProperties()

const TextureProperties & CeresEngine::Texture::getProperties ( ) const

inlinenoexcept

A structure that describes properties of an texture.

isStreaming()

bool CeresEngine::Texture::isStreaming ( ) const

noexcept

Determines if the texture is a streaming texture.

setBitmap()

virtual Async CeresEngine::Texture::setBitmap ( const Bitmap &  bitmap, UInt32  layer = 0, UInt32  mip = 0  )

pure virtual

Sets a new bitmap pixel data for the given layer and mip level.

Implemented in CeresEngine::MemoryTexture, CeresEngine::StreamingTexture, and CeresEngine::GPUTexture.

Friends And Related Symbol Documentation

TUserTypeInfo< Texture >

friend class TUserTypeInfo< Texture >

friend

Member Data Documentation

mProperties

TextureProperties CeresEngine::Texture::mProperties

protected

A structure that describes properties of an texture.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/Texture/Texture.hpp
