CeresEngine::VKRenderPass Class Reference

#include <CeresEngine/RenderAPI/Vulkan/VKRenderPass.hpp>

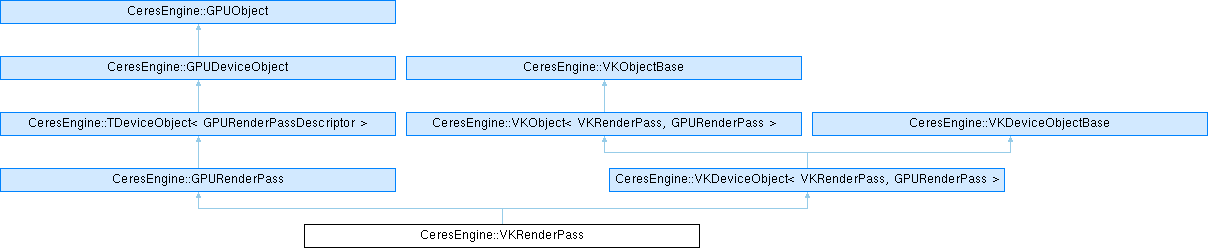

Inheritance diagram for CeresEngine::VKRenderPass:

Public Types
using	Allocator = VKObjectAllocator
	An allocator type used to allocate new VKRenderPass instances from a memory pool.
Public Types inherited from CeresEngine::TDeviceObject< GPURenderPassDescriptor >
using	Descriptor = GPURenderPassDescriptor
	An type-alias to the descriptor struct type.

Public Member Functions
	VKRenderPass (VKDevice &device, const GPURenderPassDescriptor &descriptor)
	~VKRenderPass () final
void	destroy () noexcept final
	operator VkRenderPass () const noexcept
	The render pass object.
void	begin (GPUCommandBuffer &commandBuffer, GPURenderTarget &renderTarget, const Color &clearColor=Color(0.0, 0.0, 0.0, 0.0)) final
void	end (GPUCommandBuffer &commandBuffer, GPURenderTarget &renderTarget) final
UInt32	getNumberOfColorAttachments () const
void	prepareRenderTarget (VkCommandBuffer commandBuffer, const VKRenderTarget &renderTarget)
void	finishRenderTarget (VkCommandBuffer commandBuffer, const VKRenderTarget &renderTarget)
Public Member Functions inherited from CeresEngine::GPURenderPass
	GPURenderPass (const GPURenderPass &)=delete
	Deleted copy constructor.
GPURenderPass &	operator= (const GPURenderPass &)=delete
	GPURenderPass (GPURenderPass &&)=delete
	Deleted move constructor.
GPURenderPass &	operator= (GPURenderPass &&)=delete
template<typename Func , typename... Args>
decltype(auto)	with (GPUCommandBuffer &commandBuffer, GPURenderTarget &renderTarget, Func &&block, Args &&... args)
	Prepares the render pass for execution.
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPURenderPassDescriptor >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.
Public Member Functions inherited from CeresEngine::VKDeviceObjectBase
	VKDeviceObjectBase (VKDevice &device) noexcept
	Creates a new VKDeviceObjectBase from the given device.
	~VKDeviceObjectBase () noexcept
	Destroys the VKDeviceObjectBase.

Static Public Member Functions
static Allocator &	getAllocator () noexcept
	Returns the allocator for VKRenderPass.
static void *	operator new (size_t size) noexcept
	Allocates memory for a new instance of VKRenderPass.
static void	operator delete (void *p, std::size_t size) noexcept
	Deletes memory for an instance of VKRenderPass.
Static Public Member Functions inherited from CeresEngine::VKObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Static Public Member Functions inherited from CeresEngine::VKObjectBase
static void *	operator new (size_t size) noexcept
static void	operator delete (void *p, std::size_t sz) noexcept

Private Attributes
const GPURenderPassDescriptor	descriptorVK
	A structure that describes the render pass and it's properties.
VkRenderPass	mRenderPass = VK_NULL_HANDLE
	The render pass object.
UInt32	mNumberOfColorAttachments = 0
	The number of color attachments in the render pass.
Vector< GPUAttachmentFormatDescriptor, VKAllocator >	mColorAttachments {gVKAllocator()}
	Specifies the color attachments used within the render pass.
GPUAttachmentFormatDescriptor	mDepthAttachment
	Specifies the depth attachment used within the render pass.
GPUAttachmentFormatDescriptor	mStencilAttachment
	Specifies the depth attachment used within the render pass.

Additional Inherited Members
Public Attributes inherited from CeresEngine::TDeviceObject< GPURenderPassDescriptor >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Public Attributes inherited from CeresEngine::VKDeviceObjectBase
VKDevice &	deviceVK
	The owning VKDevice instance.
Protected Member Functions inherited from CeresEngine::VKDeviceObject< VKRenderPass, GPURenderPass >
	VKDeviceObject (VKDevice &device) noexcept
	Creates a new VKDeviceObject from the given device.

Member Typedef Documentation

Allocator

using CeresEngine::VKRenderPass::Allocator = VKObjectAllocator

An allocator type used to allocate new VKRenderPass instances from a memory pool.

Constructor & Destructor Documentation

VKRenderPass()

CeresEngine::VKRenderPass::VKRenderPass	(	VKDevice &	device,
		const GPURenderPassDescriptor &	descriptor
	)

~VKRenderPass()

CeresEngine::VKRenderPass::~VKRenderPass ( )

final

Member Function Documentation

begin()

void CeresEngine::VKRenderPass::begin ( GPUCommandBuffer &  commandBuffer, GPURenderTarget &  renderTarget, const Color &  clearColor = Color(0.0, 0.0, 0.0, 0.0)  )

finalvirtual

Implements CeresEngine::GPURenderPass.

destroy()

void CeresEngine::VKRenderPass::destroy ( )

finalvirtualnoexcept

Reimplemented from CeresEngine::GPUObject.

end()

void CeresEngine::VKRenderPass::end ( GPUCommandBuffer &  commandBuffer, GPURenderTarget &  renderTarget  )

finalvirtual

Implements CeresEngine::GPURenderPass.

finishRenderTarget()

void CeresEngine::VKRenderPass::finishRenderTarget	(	VkCommandBuffer	commandBuffer,
		const VKRenderTarget &	renderTarget
	)

getAllocator()

static Allocator & CeresEngine::VKRenderPass::getAllocator ( )

staticnoexcept

Returns the allocator for VKRenderPass.

getNumberOfColorAttachments()

UInt32 CeresEngine::VKRenderPass::getNumberOfColorAttachments ( ) const

inline

Returns

The number of color attachments in the render pass

operator delete()

static void CeresEngine::VKRenderPass::operator delete ( void *  p, std::size_t  size  )

staticnoexcept

Deletes memory for an instance of VKRenderPass.

operator new()

static void * CeresEngine::VKRenderPass::operator new ( size_t  size )

staticnoexcept

Allocates memory for a new instance of VKRenderPass.

operator VkRenderPass()

CeresEngine::VKRenderPass::operator VkRenderPass ( ) const

inlinenoexcept

The render pass object.

prepareRenderTarget()

void CeresEngine::VKRenderPass::prepareRenderTarget	(	VkCommandBuffer	commandBuffer,
		const VKRenderTarget &	renderTarget
	)

Member Data Documentation

descriptorVK

const GPURenderPassDescriptor CeresEngine::VKRenderPass::descriptorVK

private

A structure that describes the render pass and it's properties.

mColorAttachments

Vector<GPUAttachmentFormatDescriptor, VKAllocator> CeresEngine::VKRenderPass::mColorAttachments {gVKAllocator()}

private

Specifies the color attachments used within the render pass.

A render context usually uses an BGRA format instead of an RGBA format.

mDepthAttachment

GPUAttachmentFormatDescriptor CeresEngine::VKRenderPass::mDepthAttachment

private

Specifies the depth attachment used within the render pass.

Remarks

The depth attachment and stencil attachment usually share the same format (e.g. Format::D24UNormS8UInt). They are separated here to specify different load and store operations.

mNumberOfColorAttachments

UInt32 CeresEngine::VKRenderPass::mNumberOfColorAttachments = 0

private

The number of color attachments in the render pass.

mRenderPass

VkRenderPass CeresEngine::VKRenderPass::mRenderPass = VK_NULL_HANDLE

private

The render pass object.

mStencilAttachment

GPUAttachmentFormatDescriptor CeresEngine::VKRenderPass::mStencilAttachment

private

Specifies the depth attachment used within the render pass.

Remarks

The depth attachment and stencil attachment usually share the same format (e.g. Format::D24UNormS8UInt). They are separated here to specify different load and store operations.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/Vulkan/VKRenderPass.hpp
