CeresEngine::GLImage Class Reference

#include <CeresEngine/RenderAPI/OpenGL/GLImage.hpp>

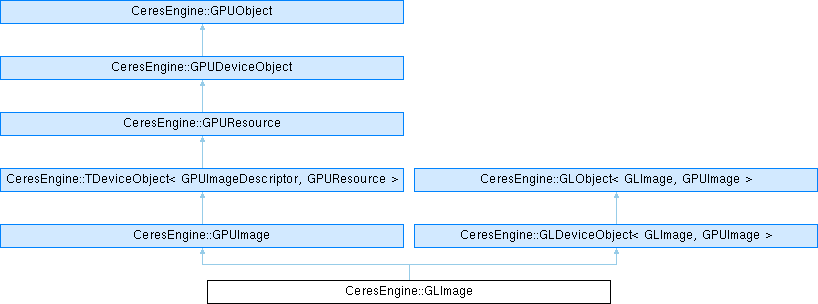

Inheritance diagram for CeresEngine::GLImage:

Public Member Functions
	GLImage (GLDevicePtr device, const GPUImageDescriptor &descriptor)
	~GLImage () final
GPUImageViewPtr	createView (const GPUImageViewDescriptor &descriptor) final
GPUImageType	type () const
GLuint	handle () const
void	updateState (const GPUSamplerDescriptor &samplerDescriptor)
	Update the image with the given sampler descriptor.
Public Member Functions inherited from CeresEngine::GPUImage
	GPUImage (const GPUImage &)=delete
	Deleted copy constructor.
GPUImage &	operator= (const GPUImage &)=delete
	GPUImage (GPUImage &&)=delete
	Deleted move constructor.
GPUImage &	operator= (GPUImage &&)=delete
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPUImageDescriptor, GPUResource >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUResource
	GPUDeviceObject (GPUDevice &device)
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.

Private Attributes
GLObjectHandle<&glad_glGenTextures, &glad_glDeleteTextures >	textureID {}
	The OpenGL device image.
GLImageState	objectState
	The OpenGL image state cache.
GPUImageDescriptor	mDescriptor
	The image descriptor.

Additional Inherited Members
Public Types inherited from CeresEngine::TDeviceObject< GPUImageDescriptor, GPUResource >
using	Descriptor = GPUImageDescriptor
	An type-alias to the descriptor struct type.
Static Public Member Functions inherited from CeresEngine::GPUImage
static UInt32	numMipLevels (UInt32 width, UInt32 height=1, UInt32 depth=1) noexcept
	Returns the number of MIP-map levels for a image with the specified size.
static UInt32	numMipLevels (const GPUImageDescriptor &imageDesc) noexcept
	Returns the number of MIP-map levels for the specified image descriptor.
static UInt32	bufferSize (Format format, UInt32 numTexels) noexcept
	Returns the required buffer size (in bytes) of a image with the specified hardware format and number of texels.
static UInt32	size (const GPUImageDescriptor &imageDesc) noexcept
static bool	isMipMapped (const GPUImageDescriptor &imageDesc) noexcept
	Returns true if the specified image descriptor describes a image with MIP-mapping enabled.
static bool	isArray (GPUImageType type) noexcept
	Returns true if the specified image type is an array image.
static bool	isMultiSample (GPUImageType type) noexcept
	Returns true if the specified image type is a multi-sample image.
static bool	isCube (GPUImageType type) noexcept
	Returns true if the specified image type is a cube image.
Static Public Member Functions inherited from CeresEngine::GLObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static RC< ChildTypeName >	safeCast (const RC< ParentType > &ptr)
	Safely casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	safeCast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	safeCast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Public Attributes inherited from CeresEngine::TDeviceObject< GPUImageDescriptor, GPUResource >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.
Protected Member Functions inherited from CeresEngine::GLDeviceObject< GLImage, GPUImage >
	GLDeviceObject (GLDevicePtr device)
	Creates a new GLDeviceObject from the given device.
Protected Attributes inherited from CeresEngine::GLDeviceObject< GLImage, GPUImage >
GLDevice &	deviceGL
	The owning GLDevice instance.

Constructor & Destructor Documentation

GLImage()

CeresEngine::GLImage::GLImage	(	GLDevicePtr	device,
		const GPUImageDescriptor &	descriptor
	)

~GLImage()

CeresEngine::GLImage::~GLImage ( )

final

Member Function Documentation

createView()

GPUImageViewPtr CeresEngine::GLImage::createView ( const GPUImageViewDescriptor &  descriptor )

finalvirtual

Implements CeresEngine::GPUImage.

handle()

GLuint CeresEngine::GLImage::handle ( ) const

inline

Returns

The OpenGL object handle

type()

GPUImageType CeresEngine::GLImage::type ( ) const

inline

Returns

The image descriptor

updateState()

void CeresEngine::GLImage::updateState

(

const GPUSamplerDescriptor &

samplerDescriptor

)

Update the image with the given sampler descriptor.

Parameters

samplerDescriptor

The image sample descriptor.

Member Data Documentation

mDescriptor

GPUImageDescriptor CeresEngine::GLImage::mDescriptor

private

The image descriptor.

objectState

GLImageState CeresEngine::GLImage::objectState

private

The OpenGL image state cache.

textureID

GLObjectHandle<& glad_glGenTextures , & glad_glDeleteTextures > CeresEngine::GLImage::textureID {}

private

The OpenGL device image.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/OpenGL/GLImage.hpp
