#include <CeresEngine/RenderAPI/GPUBuffer.hpp>

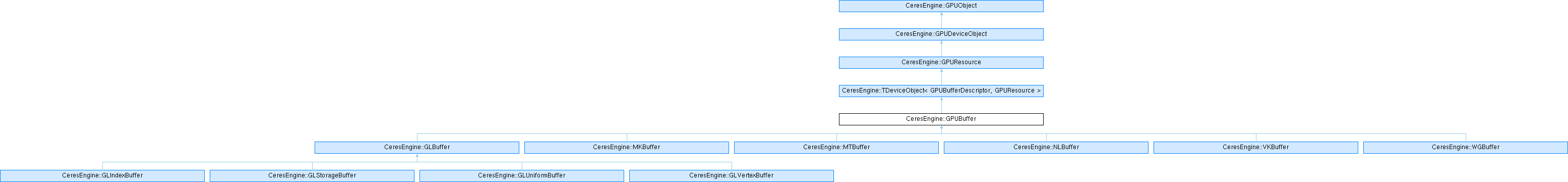

Inheritance diagram for CeresEngine::GPUBuffer:

Public Member Functions
	GPUBuffer (const GPUBuffer &)=delete
	Deleted copy constructor.

GPUBuffer &	operator= (const GPUBuffer &)=delete

	GPUBuffer (GPUBuffer &&)=delete
	Deleted move constructor.

GPUBuffer &	operator= (GPUBuffer &&)=delete

Async< ByteBuffer >	read (GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous read operation on the buffer.

Async< ByteBuffer >	read (GPUCommandBuffer &commandBuffer, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous read operation on the buffer in an specific command buffer.

Async	write (ByteBuffer &&rawData, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous write operation on the buffer.

Async	write (GPUCommandBuffer &commandBuffer, ByteBuffer &&rawData, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous write operation on the buffer in an specific command buffer.

virtual GPUBufferData	map ()=0
	Maps the buffer into the computers memory.

virtual void	unmap ()=0
	Unmaps the previously mapped GPU memory buffer.

virtual GPUBufferSize	getSize () const =0

virtual void	flush (GPUBufferSize offset=0, GPUBufferSize size=whole)=0
	Flushes the cached memory data starting at `offset` with `size` bytes.

virtual void	invalidate (GPUBufferSize offset=0, GPUBufferSize size=whole)=0
	Invalidates the cached memory data starting at `offset` with `size` bytes.

template<typename Block >
void	data (Block &&block)
	Executes `block` with a pointer that gives direct access to the buffer data.

	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.

	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.

	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.

Public Member Functions inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.

	TDeviceObject (const TDeviceObject &)=delete

	TDeviceObject (TDeviceObject &&)=delete

	~TDeviceObject () override=default

TDeviceObject &	operator= (const TDeviceObject &)=delete

TDeviceObject &	operator= (TDeviceObject &&)=delete

Public Member Functions inherited from CeresEngine::GPUResource
	GPUDeviceObject (GPUDevice &device)

Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)

	~GPUDeviceObject () override

Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default

virtual	~GPUObject ()=default

	GPUObject (const GPUObject &)=delete

GPUObject &	operator= (const GPUObject &)=delete

	GPUObject (GPUObject &&)=delete

GPUObject &	operator= (GPUObject &&)=delete

void	retain () noexcept
	Retains the object by increment it's reference count by one.

bool	release () noexcept
	Releases the object by decrementing it's reference count by one.

Static Public Attributes
static const constexpr GPUBufferSize	whole = ~0UL
	A constant the represents the whole buffer length.

Additional Inherited Members
Public Types inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
using	Descriptor = GPUBufferDescriptor
	An type-alias to the descriptor struct type.

Public Attributes inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.

Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.

Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.

Constructor & Destructor Documentation

◆ GPUBuffer() [1/2]

CeresEngine::GPUBuffer::GPUBuffer ( const GPUBuffer & )

delete

Deleted copy constructor.

◆ GPUBuffer() [2/2]

CeresEngine::GPUBuffer::GPUBuffer ( GPUBuffer && )

delete

Deleted move constructor.

Member Function Documentation

◆ data()

template<typename Block >

void CeresEngine::GPUBuffer::data ( Block && block )

inline

Executes block with a pointer that gives direct access to the buffer data.

Parameters

block The block to be executed with a pointer to the GPU buffer.

◆ flush()

virtual void CeresEngine::GPUBuffer::flush	(	GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

pure virtual

Flushes the cached memory data starting at offset with size bytes.

Parameters

offset	The starting offset to be flushed
size	The amount of bytes to be flushed

Implemented in CeresEngine::MTBuffer, CeresEngine::MKBuffer, CeresEngine::NLBuffer, CeresEngine::GLBuffer, CeresEngine::VKBuffer, and CeresEngine::WGBuffer.

◆ getSize()

virtual GPUBufferSize CeresEngine::GPUBuffer::getSize ( ) const

pure virtual

Returns: The buffer size in memory

Implemented in CeresEngine::MTBuffer, CeresEngine::MKBuffer, CeresEngine::NLBuffer, CeresEngine::GLBuffer, CeresEngine::VKBuffer, and CeresEngine::WGBuffer.

◆ invalidate()

virtual void CeresEngine::GPUBuffer::invalidate	(	GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

pure virtual

Invalidates the cached memory data starting at offset with size bytes.

Parameters

offset	The starting offset to be flushed
size	The amount of bytes to be flushed

Implemented in CeresEngine::MTBuffer, CeresEngine::MKBuffer, CeresEngine::NLBuffer, CeresEngine::GLBuffer, CeresEngine::VKBuffer, and CeresEngine::WGBuffer.

◆ map()

virtual GPUBufferData CeresEngine::GPUBuffer::map ( )

pure virtual

Maps the buffer into the computers memory.

Returns: A pointer to the GPU memory block

Implemented in CeresEngine::MTBuffer, CeresEngine::MKBuffer, CeresEngine::NLBuffer, CeresEngine::GLBuffer, CeresEngine::VKBuffer, and CeresEngine::WGBuffer.

◆ operator=() [1/2]

GPUBuffer & CeresEngine::GPUBuffer::operator= ( const GPUBuffer & )

delete

◆ operator=() [2/2]

GPUBuffer & CeresEngine::GPUBuffer::operator= ( GPUBuffer && )

delete

◆ read() [1/2]

Async< ByteBuffer > CeresEngine::GPUBuffer::read	(	GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

Performs an asynchronous read operation on the buffer.

Parameters

offset	The offset into the buffer to start reading the contents at.
size	The amount of bytes to be read from the buffer.

Returns: A continuable that is marked as complete once the device has finished copying the buffer data into a host buffer.

◆ read() [2/2]

Async< ByteBuffer > CeresEngine::GPUBuffer::read	(	GPUCommandBuffer &	commandBuffer,
		GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

Performs an asynchronous read operation on the buffer in an specific command buffer.

Parameters

commandBuffer	The command buffer to execute the copy commands on.
offset	The offset into the buffer to start reading the contents at.
size	The amount of bytes to be read from the buffer.

Returns: A continuable that is marked as complete once the device has finished copying the buffer data into a host buffer.

◆ TDeviceObject() [1/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject ( const TDeviceObject & )

delete

Inherited constructors.

◆ TDeviceObject() [2/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject	(	GPUDevice &	device,
		const Descriptor &	descriptor
	)

inlineexplicit

Inherited constructors.

◆ TDeviceObject() [3/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject ( TDeviceObject && )

delete

Inherited constructors.

◆ unmap()

virtual void CeresEngine::GPUBuffer::unmap ( )

pure virtual

Unmaps the previously mapped GPU memory buffer.

Implemented in CeresEngine::MTBuffer, CeresEngine::MKBuffer, CeresEngine::NLBuffer, CeresEngine::GLBuffer, CeresEngine::VKBuffer, and CeresEngine::WGBuffer.

◆ write() [1/2]

Async CeresEngine::GPUBuffer::write	(	ByteBuffer &&	rawData,
		GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

Performs an asynchronous write operation on the buffer.

Parameters

rawData	A raw byte buffer to be copied into the device buffer.
offset	The offset into the buffer to start writing the contents at.
size	The amount of bytes to be written to the buffer.

Returns: A continuable that is marked as complete once the device has finished copying host buffer into the device buffer.

◆ write() [2/2]

Async CeresEngine::GPUBuffer::write	(	GPUCommandBuffer &	commandBuffer,
		ByteBuffer &&	rawData,
		GPUBufferSize	offset = `0`,
		GPUBufferSize	size = `whole`
	)

Performs an asynchronous write operation on the buffer in an specific command buffer.

Parameters

commandBuffer	The command buffer to execute the copy commands on.
rawData	A raw byte buffer to be copied into the device buffer.
offset	The offset into the buffer to start writing the contents at.
size	The amount of bytes to be written to the buffer.

Returns: A continuable that is marked as complete once the device has finished copying host buffer into the device buffer.

Member Data Documentation

◆ whole

const constexpr GPUBufferSize CeresEngine::GPUBuffer::whole = ~0UL

inlinestaticconstexpr

A constant the represents the whole buffer length.

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/GPUBuffer.hpp
