CeresEngine::MTCommandQueue Class Reference

Metal RenderAPI command queue object. More...

#include <CeresEngine/RenderAPI/Metal/MTCommandQueue.hpp>

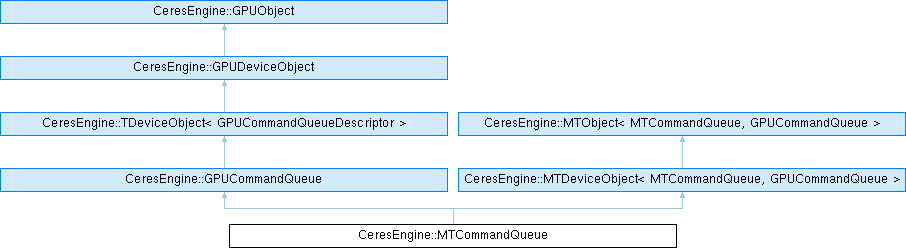

Inheritance diagram for CeresEngine::MTCommandQueue:

Public Types
using	MTLCommandQueueType = void *
Public Types inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
using	Descriptor = GPUCommandQueueDescriptor
	An type-alias to the descriptor struct type.

Public Member Functions
	MTCommandQueue (MTDevicePtr device)
	~MTCommandQueue () final
	operator MTLCommandQueueType () const noexcept
	The Metal API command queue object.
GPUCommandBufferPtr	createCommandBuffer (const GPUCommandBufferDescriptor &descriptor) final
Async	submit (GPUCommandBuffer &commandBuffer) final
void	wait () final
Public Member Functions inherited from CeresEngine::GPUCommandQueue
	GPUCommandQueue (const GPUCommandQueue &)=delete
	Deleted copy constructor.
GPUCommandQueue &	operator= (const GPUCommandQueue &)=delete
	GPUCommandQueue (GPUCommandQueue &&)=delete
	Deleted move constructor.
GPUCommandQueue &	operator= (GPUCommandQueue &&)=delete
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.

Private Attributes
const GPUCommandQueueDescriptor	mDescriptor
	The CommandQueue descriptor structure.
MTLCommandQueueType	mCommandQueue
	The Metal API command queue object.
MTCommandBufferPtr	mCommandBuffer
	The pending Metal command buffer.

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::MTObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static RC< ChildTypeName >	safeCast (const RC< ParentType > &ptr)
	Safely casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	safeCast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	safeCast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Public Attributes inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.
Protected Member Functions inherited from CeresEngine::MTDeviceObject< MTCommandQueue, GPUCommandQueue >
	MTDeviceObject (MTDevicePtr device)
	Creates a new MTDeviceObject from the given device.
Protected Attributes inherited from CeresEngine::MTDeviceObject< MTCommandQueue, GPUCommandQueue >
MTDevice &	deviceMT
	The owning MTDevice instance.

Detailed Description

Metal RenderAPI command queue object.

Member Typedef Documentation

MTLCommandQueueType

using CeresEngine::MTCommandQueue::MTLCommandQueueType = void*

Constructor & Destructor Documentation

MTCommandQueue()

CeresEngine::MTCommandQueue::MTCommandQueue ( MTDevicePtr  device )

explicit

~MTCommandQueue()

CeresEngine::MTCommandQueue::~MTCommandQueue ( )

final

Member Function Documentation

createCommandBuffer()

GPUCommandBufferPtr CeresEngine::MTCommandQueue::createCommandBuffer ( const GPUCommandBufferDescriptor &  descriptor )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

operator MTLCommandQueueType()

CeresEngine::MTCommandQueue::operator MTLCommandQueueType ( ) const

inlinenoexcept

The Metal API command queue object.

submit()

Async CeresEngine::MTCommandQueue::submit ( GPUCommandBuffer &  commandBuffer )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

wait()

void CeresEngine::MTCommandQueue::wait ( )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

Member Data Documentation

mCommandBuffer

MTCommandBufferPtr CeresEngine::MTCommandQueue::mCommandBuffer

private

The pending Metal command buffer.

mCommandQueue

MTLCommandQueueType CeresEngine::MTCommandQueue::mCommandQueue

private

The Metal API command queue object.

mDescriptor

const GPUCommandQueueDescriptor CeresEngine::MTCommandQueue::mDescriptor

private

The CommandQueue descriptor structure.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/Metal/MTCommandQueue.hpp
