CeresEngine::UIClipView Class Reference

An object that clips a document view to a scroll view's frame. More...

#include <CeresEngine/UI/UIClipView.hpp>

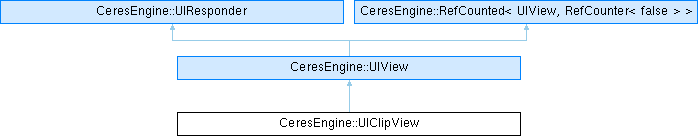

Inheritance diagram for CeresEngine::UIClipView:

Public Member Functions
UIView *	getDocumentView () const
	The clip view's document view.
void	setDocumentView (UIView *documentView)
	The clip view's document view.
void	scroll (const UIPoint &newOrigin)
	Changes the origin of the clip view's bounds rectangle to newOrigin.
UIRect	getDocumentRect () const
	The rectangle defining the document view's frame, adjusted to the size of the clip view if the document view is smaller.
UIRect	getDocumentVisibleRect () const
	The exposed rectangle of the clip view's document view, in the document view's own coordinate system.
void	layoutSubviews () override
	Lays out subviews.
void	displayIgnoringOpacity (UIGraphicsContext &context, const UIRect &aRect) override
	Displays the view but does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.
Public Member Functions inherited from CeresEngine::UIView
	UIView ()
	Initializes new UIView object with an empty frame rectangle.
	UIView (const String &name)
	Initializes new UIView object with an empty frame rectangle and custom name.
	UIView (const UIRect &frame, const String &name="")
	Initializes new UIView object with a frame rectangle.
	UIView (const UISize &size, const String &name="")
	Initializes new UIView object with an frame rectangle size.
	UIView (const UIPoint &origin, const UISize &size, const String &name="")
	Initializes new UIView object with an frame rectangle size.
	UIView (const double x, const double y, const double width, const double height, const String &name="")
	Initializes new UIView object with an frame rectangle size.
	~UIView () override
	Destroys a UIView.
UIView *	getSuperView () const
	The view that is the parent of the current view.
const Vector< UIView * > &	getSubViews () const
	The list of views embedded in the current view.
void	setSubViews (const Vector< UIView * > &subViews)
	The list of views embedded in the current view.
UInt32	getSubViewCount () const noexcept
	Gets the number of sub-views in the view.
UIView *	getSubView (UInt32 index) const
	Gets the sub-view at the given index.
UInt32	getSubViewIndex (const UIView *view) const
	Gtes the sub-view index for the given sub-view, if it is a sub-view.
void	addSubView (UIView *view)
	Adds a view to the view's subviews so it's displayed above its siblings.
void	addSubView (const UIViewPtr &view)
	Adds a view to the view's subviews so it's displayed above its siblings.
template<typename T , typename... Args>
T *	addSubView (Args &&... args)
	Adds a view to the view's subviews so it's displayed above its siblings.
void	replaceSubView (UIView *view, UIView *replacement)
	Replaces one of the view's subviews with another view.
void	removeFromSuperview ()
	Unlinks the view from its superview and its window, removes it from the responder chain, and invalidates its cursor rectangles.
bool	isDescendant (const UIView *view) const
	Returns true if the view is a subview of a given view or if it's identical to that view; otherwise, it returns false.
UIView *	getOpaqueAncestor () const
	The view's closest opaque ancestor, which might be the view itself.
virtual UIWindow *	getWindow () const
	The view's window object, if it is installed in a window.
UIRect	getFrame () const
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
virtual void	setFrame (const UIRect &frame)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
void	setFrame (const UIPoint &point, const UISize &size)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
void	setFrame (const UIPoint &point, const double width, const double height)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
void	setFrame (const double x, const double y, const UISize &size)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
void	setFrame (const double x, const double y, const double width, const double height)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.
void	setFrameOrigin (const UIPoint &point)
	Sets the origin of the view's frame rectangle to the specified point, effectively repositioning it within its superview.
void	setFrameOrigin (const double x, const double y)
	Sets the origin of the view's frame rectangle to the specified point, effectively repositioning it within its superview.
void	setFrameSize (const UISize &size)
	Sets the size of the view's frame rectangle to the specified dimensions, resizing it within its superview without affecting its coordinate system.
void	setFrameSize (const double width, const double height)
	Sets the size of the view's frame rectangle to the specified dimensions, resizing it within its superview without affecting its coordinate system.
UIRect	getBounds () const
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
virtual void	setBounds (const UIRect &bounds)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
void	setBounds (const UIPoint &point, const UISize &size)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
void	setBounds (const UIPoint &point, const double width, const double height)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
void	setBounds (const double x, const double y, const UISize &size)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
void	setBounds (const double x, const double y, const double width, const double height)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.
void	setBoundsOrigin (const UIPoint &point)
	Sets the origin of the view's bounds rectangle to a specified point.
void	setBoundsOrigin (const double x, const double y)
	Sets the origin of the view's bounds rectangle to a specified point.
void	setBoundsSize (const UISize &size)
	Sets the size of the view's bounds rectangle to specified dimensions, inversely scaling its coordinate system relative to its frame rectangle.
void	setBoundsSize (const double width, const double height)
	Sets the size of the view's bounds rectangle to specified dimensions, inversely scaling its coordinate system relative to its frame rectangle.
virtual bool	acceptsFirstMouse (const UIEvent &theEvent)
	Overridden by subclasses to return true if the view should call mouseDown() for an initial mouse-down event, false if not.
UIView *	hitTest (UIPoint aPoint, const Optional< const UIEvent & > &event=nullopt)
	Returns the farthest descendant of the view in the view hierarchy (including itself) that contains a specified point, or nil if that point lies completely outside the view.
virtual bool	isPointInside (const UIPoint &point, const Optional< const UIEvent & > &event=nullopt)
	Returns a Boolean value indicating whether the receiver contains the specified point.
bool	isMousePoint (const UIPoint &aPoint, const UIRect &aRect)
	Returns whether a region of the view contains a specified point, accounting for whether the view is flipped or not.
virtual bool	getMouseDownCanMoveWindow () const
	This property lets you determine the region by which a window can be moved.
const UIAppearance &	getAppearance () const noexcept
	The UI appearance to be used by the view.
void	setAppearance (UIAppearance *appearance)
	The UI appearance to be used by the view.
UIColor	getTintColor () const
	The first non-default tint color value in the view's hierarchy, ascending from and starting with the view itself.
void	setTintColor (const UIColor &color)
	The first non-default tint color value in the view's hierarchy, ascending from and starting with the view itself.
void	clearTintColor ()
	Clears the tint color for the current view.
const UIColor &	getBackgroundColor () const noexcept
	The view's background color.
void	setBackgroundColor (const UIColor &color)
	The view's background color.
const UICornerRadius &	getCornerRadius () const noexcept
	The view's background corner radius.
void	setCornerRadius (const UICornerRadius &color)
	The view's background corner radius.
double	getAlpha () const noexcept
	This property contains the opacity value from the view's layer.
void	setAlpha (double alpha)
	This property contains the opacity value from the view's layer.
bool	isOpaque () const noexcept
	A Boolean value indicating whether the view fills its frame rectangle with opaque content.
void	setOpaque (bool isOpaque)
	A Boolean value indicating whether the view fills its frame rectangle with opaque content.
UIRect	getVisibleRect () const
	Visibility, as reflected by this property, does not account for whether other view or window objects overlap the current view or whether the current view is installed in a window at all.
bool	isVisible () const
	A Boolean value indicating whether the view is visible.
void	setVisible (bool visible)
	A Boolean value indicating whether the view is visible.
bool	isHidden () const
	A Boolean value indicating whether the view is hidden.
void	setHidden (const bool hidden)
	A Boolean value indicating whether the view is hidden.
bool	isHiddenOrHasHiddenAncestor () const
	A Boolean value indicating whether the view is hidden from sight because it, or one of its ancestors, is marked as hidden.
bool	isActive () const
	A Boolean value indicating whether the view is active.
void	setActive (bool active)
	A Boolean value indicating whether the view is active.
bool	getAutoresizesSubViews () const
	A Boolean value indicating whether the view applies the autoresizing behavior to its subviews when its frame size changes.
void	setAutoresizesSubViews (bool state)
	Generates a hash for the provided type.
const UIViewAutoresizingMask &	getAutoresizingMask () const
	The options that determine how the view is resized relative to its superview.
void	setAutoresizingMask (const UIViewAutoresizingMask &autoresizingMask)
	The options that determine how the view is resized relative to its superview.
virtual void	resizeSubviews (const UISize &oldBoundsSize)
	Informs the view's subviews that the view's bounds rectangle size has changed.
virtual void	resize (const UISize &oldBoundsSize)
	Informs the view that the bounds size of its superview has changed.
virtual UISize	getIntrinsicContentSize () const
	The natural size for the receiving view, considering only properties of the view itself.
bool	getNeedsLayout () const
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.
void	setNeedsLayout ()
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.
void	setNeedsLayout (bool state)
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.
void	layout ()
	Perform layout in concert with the layout system.
void	layoutIfNeeded ()
	Updates the layout of the receiving view and its subviews based on the current views and constraints.
virtual UISize	calculateFittingLayoutSize (const UISize &targetSize) const
	Returns the optimal size of the view based on its current constraints.
UISize	calculateMinimumLayoutSize () const
	Returns the minimum size of the view based on its current constraints.
UISize	calculateMaximumLayoutSize () const
	Returns the maximum size of the view based on its current constraints.
bool	getNeedsUpdateConstraints () const
	A Boolean value that determines whether the view’s constraints need updating.
void	setNeedsUpdateConstraints ()
	A Boolean value that determines whether the view’s constraints need updating.
void	setNeedsUpdateConstraints (bool state)
	A Boolean value that determines whether the view’s constraints need updating.
virtual void	updateConstraints ()
	Updates constraints for the view.
void	updateConstraintsIfNeeded ()
	Updates the constraints for the receiving view and its subviews.
Span< const UILayoutConstraint >	getConstraints () const
	Returns the constraints held by the view.
void	setConstraints (Vector< UILayoutConstraint > &&constraints)
	Returns the constraints held by the view.
void	setConstraints (const Span< const UILayoutConstraint > &constraints)
	Returns the constraints held by the view.
void	addConstraint (const UILayoutConstraint &constraint)
	Adds a constraint on the layout of the receiving view or its subviews.
void	addConstraints (const Span< const UILayoutConstraint > &constraints)
	Adds multiple constraints on the layout of the receiving view or its subviews.
void	addConstraints (const InitializerList< UILayoutConstraint > constraints)
	Adds multiple constraints on the layout of the receiving view or its subviews.
void	removeConstraint (const UILayoutConstraint &constraint)
	Removes the specified constraint from the view.
void	removeConstraints (const Span< const UILayoutConstraint > &constraints)
	Removes the specified constraints from the view.
void	removeConstraints (const InitializerList< UILayoutConstraint > constraints)
	Removes the specified constraints from the view.
const UIEdgeInsets &	getLayoutMargins () const
	The default spacing to use when laying out content in the view.
void	setLayoutMargins (const UIEdgeInsets &layoutMargins)
	The default spacing to use when laying out content in the view.
double	getLayoutTopMargin () const
	The default spacing to use when laying out content in the view.
void	setTopLayoutMargin (double topLayoutMargin)
	Generates a hash for the provided type.
double	getBottomLayoutMargin () const
	The default spacing to use when laying out content in the view.
void	setBottomLayoutMargin (double bottomLayoutMargin)
	The default spacing to use when laying out content in the view.
double	getLeftLayoutMargin () const
	The default spacing to use when laying out content in the view.
void	setLeftLayoutMargin (double leftLayoutMargin)
	The default spacing to use when laying out content in the view.
double	getRightLayoutMargin () const
	The default spacing to use when laying out content in the view.
void	setRightLayoutMargin (double rightLayoutMargin)
	The default spacing to use when laying out content in the view.
void	setNeedsDisplay ()
	The displayIfNeeded methods check the value of this property to avoid unnecessary drawing, and all display methods set the value back to false when the view is up to date.
void	setNeedsDisplay (const UIRect &invalidRect)
	Marks the region of the view within the specified rectangle as needing display, increasing the view's existing invalid region to include it.
bool	getNeedsDisplay () const
	The displayIfNeeded methods check the value of this property to avoid unnecessary drawing, and all display methods set the value back to false when the view is up to date.
void	display (UIGraphicsContext &context)
	Displays the view and all its subviews if possible.
void	display (UIGraphicsContext &context, const UIRect &aRect)
	Acts as display(), but confining drawing to a rectangular region of the view.
void	displayIgnoringOpacity (UIGraphicsContext &context)
	Displays the view but does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.
void	displayIfNeeded (UIGraphicsContext &context)
	Displays the view and all its subviews if any part of the view has been marked as needing display.
void	displayIfNeeded (UIGraphicsContext &context, const UIRect &aRect)
	Acts as displayIfNeeded(), but confining drawing to a rectangular region of the view.
void	displayIfNeededIgnoringOpacity (UIGraphicsContext &context)
	Acts as displayIfNeeded(), except that this method doesn’t back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.
void	displayIfNeededIgnoringOpacity (UIGraphicsContext &context, const UIRect &aRect)
	Displays the view but confines drawing to a specified region and does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.
bool	canDraw () const
	A Boolean value indicating whether drawing commands will produce any results.
virtual void	draw (UIGraphicsContext &context, const UIRect &dirtyRect)
	Overridden by subclasses to draw the view's texture within the specified rectangle.
const Vector< UIRect > &	getRectsBeingDrawn () const
	Returns by a list of non-overlapping rectangles that define the area the view is being asked to draw in draw().
bool	needsToDraw (const UIRect &aRect) const noexcept
	Returns a Boolean value indicating whether the specified rectangle intersects any part of the area that the view is being asked to draw.
virtual bool	getClearsContextBeforeDrawing () const noexcept
	A Boolean value that determines whether the view's bounds should be automatically cleared before drawing.
virtual bool	getClipsToBounds () const
	A Boolean value that determines whether subviews are confined to the bounds of the view.
double	getContentScaleFactor () const
	The scale factor applied to the view.
void	setContentScaleFactor (const Optional< double > &contentScaleFactor)
	The scale factor applied to the view.
bool	isFirstResponder () const noexcept
	Determines if this view is the current first responder.
virtual UIScrollView *	getScrollView () const
	Gets the closest parent scroll view to this view.
virtual bool	canBecomeKeyView () const
	When the value of this property is true, the view can become the key view.
virtual bool	needsPanelToBecomeKey () const
	The default value of this property is false.
UIView *	getNextKeyView () const
	The view object that follows the current view in the key view loop.
void	setNextKeyView (UIView *nextKeyView)
	The view object that follows the current view in the key view loop.
UIView *	getNextValidKeyView () const
	The value in this property is nullptr if there is no view that follows the current view and accepts the first responder status.
UIView *	getPreviousKeyView () const
	The value in this property is nullptr if there is no view preceding the current view in the key view loop.
UIView *	getPreviousValidKeyView () const
	The value in this property is nullptr if there is no view that precedes the current view and accepts the first responder status.
AffineTransform	getTransformFrom (const UIView *aView=nullptr) const
const AffineTransform &	getTransformFromWindow () const
AffineTransform	getTransformFromSuperView () const
const AffineTransform &	getTransformFromBacking () const
AffineTransform	getTransformTo (const UIView *aView=nullptr) const
const AffineTransform &	getTransformToWindow () const
AffineTransform	getTransformToSuperView () const
const AffineTransform &	getTransformToBacking () const
UIPoint	convertFrom (const UIPoint &aPoint, const UIView *aView=nullptr) const
	Converts a point from the coordinate system of a given view to that of the view.
UIPoint	convertFromWindow (const UIPoint &aPoint) const
	Converts a point from the coordinate system of a given view to that of the view.
UIPoint	convertFromSuperView (const UIPoint &aPoint) const
	Converts a point from the coordinate system of a given view to that of the view.
UIPoint	convertFromBacking (const UIPoint &aPoint) const
	Converts a point from its pixel aligned backing store coordinate system to the view’s interior coordinate system.
UIPoint	convertTo (const UIPoint &aPoint, const UIView *aView=nullptr) const
	Converts a point from the view's coordinate system to that of a given view.
UIPoint	convertToWindow (const UIPoint &aPoint) const
	Converts a point from the view's coordinate system to that of a given view.
UIPoint	convertToSuperView (const UIPoint &aPoint) const
	Converts a point from the view's coordinate system to that of a given view.
UIPoint	convertToBacking (const UIPoint &aPoint) const
	Converts a point from the view’s interior coordinate system to its pixel aligned backing store coordinate system.
UISize	convertFrom (const UISize &aSize, const UIView *aView=nullptr) const
	Converts a size from another view's coordinate system to that of the view.
UISize	convertFromWindow (const UISize &aSize) const
	Converts a point from the coordinate system of a given view to that of the view.
UISize	convertFromSuperView (const UISize &aSize) const
	Converts a point from the coordinate system of a given view to that of the view.
UISize	convertFromBacking (const UISize &aSize) const
	Converts a size from its pixel aligned backing store coordinate system to the view’s interior coordinate system.
UISize	convertTo (const UISize &aSize, const UIView *aView=nullptr) const
	Converts a size from the view's coordinate system to that of another view.
UISize	convertToWindow (const UISize &aSize) const
	Converts a point from the view's coordinate system to that of a given view.
UISize	convertToSuperView (const UISize &aSize) const
	Converts a point from the view's coordinate system to that of a given view.
UISize	convertToBacking (const UISize &aSize) const
	Converts a size from the view’s interior coordinate system to its pixel aligned backing store coordinate system.
UIRect	convertFrom (const UIRect &aRect, const UIView *aView=nullptr) const
	Converts a rectangle from the coordinate system of another view to that of the view.
UIRect	convertFromWindow (const UIRect &aRect) const
	Converts a point from the coordinate system of a given view to that of the view.
UIRect	convertFromSuperView (const UIRect &aRect) const
	Converts a point from the coordinate system of a given view to that of the view.
UIRect	convertFromBacking (const UIRect &aRect) const
	Converts a rectangle from its pixel aligned backing store coordinate system to the view’s interior coordinate system.
UIRect	convertTo (const UIRect &aRect, const UIView *aView=nullptr) const
	Converts a rectangle from the view's coordinate system to that of another view.
UIRect	convertToWindow (const UIRect &aRect) const
	Converts a point from the view's coordinate system to that of a given view.
UIRect	convertToSuperView (const UIRect &aRect) const
	Converts a point from the view's coordinate system to that of a given view.
UIRect	convertToBacking (const UIRect &aRect) const
	Converts a rectangle from the view’s interior coordinate system to its pixel aligned backing store coordinate system.
UIViewController *	getViewController () const noexcept
	The UIView controller, if any.
const String &	getName () const
	A human readable string that represents the view.
void	setName (const String &name)
	Generates a hash for the provided type.
virtual StringView	getTypeName () const
	A string that represents the view type.
UIResponder *	getNextResponder () const final
	The next responder after this one, or nil if it has none.
Public Member Functions inherited from CeresEngine::UIResponder
virtual	~UIResponder ()=default
virtual bool	acceptsFirstResponder () const
	A Boolean value that indicates whether the responder accepts first responder status.
virtual bool	becomeFirstResponder ()
	Notifies the receiver that it's about to become first responder in its window.
virtual bool	resignFirstResponder ()
	Notifies the receiver that it's been asked to relinquish its status as first responder in its window.
virtual void	mouseDown (const UIMouseEvent &event)
	Informs the receiver that the user has pressed the left mouse button.
virtual void	mouseDragged (const UIMouseEvent &event)
	Informs the receiver that the user has moved the mouse with the left button pressed.
virtual void	mouseUp (const UIMouseEvent &event)
	Informs the receiver that the user has released the left mouse button.
virtual void	mouseMoved (const UIMouseEvent &event)
	Informs the receiver that the mouse has moved.
virtual void	mouseEntered (const UIMouseEvent &event)
	Informs the receiver that the cursor has entered a tracking rectangle.
virtual void	mouseExited (const UIMouseEvent &event)
	Informs the receiver that the cursor has exited a tracking rectangle.
virtual void	rightMouseDown (const UIMouseEvent &event)
	Informs the receiver that the user has pressed the right mouse button.
virtual void	rightMouseDragged (const UIMouseEvent &event)
	Informs the receiver that the user has moved the mouse with the right button pressed.
virtual void	rightMouseUp (const UIMouseEvent &event)
	Informs the receiver that the user has released the right mouse button.
virtual void	otherMouseDown (const UIMouseEvent &event)
	Informs the receiver that the user has pressed a mouse button other than the left or right one.
virtual void	otherMouseDragged (const UIMouseEvent &event)
	Informs the receiver that the user has moved the mouse with a button other than the left or right button pressed.
virtual void	otherMouseUp (const UIMouseEvent &event)
	Informs the receiver that the user has released a mouse button other than the left or right button.
virtual void	scrollWheel (const UIMouseEvent &event)
	Informs the receiver that the mouse's scroll wheel has moved.
virtual void	keyDown (const UIKeyEvent &event)
	Informs the receiver that the user has pressed a key.
virtual void	keyUp (const UIKeyEvent &event)
	Informs the receiver that the user has released a key.
virtual void	interpretKeyEvents (const Vector< UIKeyEvent > &events)
	Handles a series of key events.
virtual bool	performKeyEquivalent (const UIKeyEvent &event)
	Handle a key equivalent.
virtual void	flushBufferedKeyEvents ()
	Clears any unprocessed key events when overridden by subclasses.
virtual void	cursorUpdate (const UIEvent &event)
	Informs the receiver that the mouse cursor has moved into a cursor rectangle.
virtual void	flagsChanged (const UIEvent &event)
	Informs the receiver that the user has pressed or released a modifier key (Shift, Control, and so on).
Public Member Functions inherited from CeresEngine::RefCounted< UIView, RefCounter< false > >
	RefCounted (Args &&... args)
	Creates a new RefCounted object and constructs a new Deleter by forwarding Args to it.
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Protected Member Functions
UIPoint	constrainScrollPoint (UIPoint point)
void	notifyScrollViewOfChange ()
Protected Member Functions inherited from CeresEngine::UIView
virtual void	didAddSubview (UIView &view)
	Overridden by subclasses to perform additional actions when subviews are added to the view.
virtual void	willRemoveSubview (UIView &view)
	Overridden by subclasses to perform additional actions before subviews are removed from the view.
virtual void	didRemoveSubview (UIView &view)
	Overridden by subclasses to perform additional actions when subviews are removed to the view.
virtual void	willMoveToSuperView (UIView *superView)
	Informs the view that its superview is about to change to the specified superview (which may be nil).
virtual void	didMoveToSuperView (UIView *superView)
	Informs the view that its superview has changed (possibly to nil).
virtual void	willMoveToWindow (UIWindow *window)
	Informs the view that it's being added to the view hierarchy of the specified window object (which may be nil).
virtual void	didMoveToWindow (UIWindow *window)
	Informs the view that it has been added to a new view hierarchy.
virtual void	didHide ()
	Invoked when the view is hidden, either directly, or in response to an ancestor being hidden.
virtual void	didUnhide ()
	Invoked when the view is unhidden, either directly, or in response to an ancestor being unhidden.
virtual void	willDraw ()
	Informs the view that it will be required to draw content.
virtual void	tintColorDidChange ()
	Called by the system when the tintColor property changes.
virtual void	didChangeFrame (const UIRect &oldFrame)
	Called whenever the view frame changes, either internally or programmatically by calls to setFrame.
virtual void	didChangeBounds (const UIRect &oldBounds)
	Called whenever the view bounds changes, either internally or programmatically by calls to setBounds.
void	invalidateIntrinsicContentSize ()
	Invalidates the view's intrinsic content size.
void	updateIntrinsicContentSize ()

Private Types
using	super = UIView

Private Attributes
UIViewPtr	mDocumentView
	The clip view's document view.
UIEdgeInsets	mContentInsets
	The distance that the content view is inset from the enclosing scroll view.

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::UIResponder
static void	dispatch (UIResponder *const firstResponder, const UIEvent &event)
	Dispatches a UIEvent to the given first responder.
Public Attributes inherited from CeresEngine::UIView
const UILayoutAnchor	left
	The left side of the object's alignment rectangle.
const UILayoutAnchor	right
	The right side of the object's alignment rectangle.
const UILayoutAnchor	top
	The top of the object's alignment rectangle.
const UILayoutAnchor	bottom
	The bottom of the object's alignment rectangle.
const UILayoutAnchor	width
	The width of the object's alignment rectangle.
const UILayoutAnchor	height
	The height of the object's alignment rectangle.
const UILayoutAnchor	centerX
	The center along the x-axis of the object's alignment rectangle.
const UILayoutAnchor	centerY
	The center along the y-axis of the object's alignment rectangle.
const UILayoutAnchor	lastBaseline
	The object's baseline.
const UILayoutAnchor	firstBaseline
	The object's baseline.
const UILayoutAnchor	leftMargin
	The object's left margin.
const UILayoutAnchor	rightMargin
	The object's right margin.
const UILayoutAnchor	topMargin
	The object's top margin.
const UILayoutAnchor	bottomMargin
	The object's bottom margin.
const UILayoutAnchor	centerXWithinMargins
	The center along the x-axis between the object's left and right margin.
const UILayoutAnchor	centerYWithinMargins
	The center along the y-axis between the object's top and bottom margin.
Static Public Attributes inherited from CeresEngine::UIView
static const double	kNoInstrinsicMetric
	Used to indicate that a view has no intrinsic metric for a given numeric property.
static const UISize	kNoIntrinsicSize
	Used to indicate that a view has no intrinsic metric for a given size property.
static const UInt32	kInvalidViewIndex
	Used to indicate that an invalid view index.
static const UIRect	kDefaultFrame
	A rectangle that represents the default frame set by a view without an explicit frame.
static const UIColorAppearanceProperty	tintColorProperty
	Determines the default value for the tintColor property if not overridden by the view.
static const UIPaintAppearanceProperty	labelPaintProperty
	The primary color to use for text labels.
static const UIPaintAppearanceProperty	secondaryLabelPaintProperty
	The secondary color to use for text labels.
static const UIPaintAppearanceProperty	tertiaryLabelPaintProperty
	The tertiary color to use for text labels.
static const UIPaintAppearanceProperty	quaternaryLabelPaintProperty
	The quaternary color to use for text labels and separators.
static const UIPaintAppearanceProperty	textPaintProperty
	The color to use for text.
static const UIPaintAppearanceProperty	placeholderTextPaintProperty
	The color to use for placeholder text in controls or text views.
static const UIPaintAppearanceProperty	selectedTextPaintProperty
	The color to use for selected text.
static const UIPaintAppearanceProperty	textBackgroundPaintProperty
	The color to use for the background area behind text.
static const UIPaintAppearanceProperty	selectedTextBackgroundPaintProperty
	The color to use for the background of selected text.
static const UIPaintAppearanceProperty	keyboardFocusIndicatorPaintProperty
	The color to use for the keyboard focus ring around controls.
static const UIPaintAppearanceProperty	unemphasizedSelectedTextPaintProperty
	The color to use for selected text in an unemphasized context.
static const UIPaintAppearanceProperty	unemphasizedSelectedTextBackgroundPaintProperty
	The color to use for the text background in an unemphasized context.
static const UIPaintAppearanceProperty	linkPaintProperty
	The color to use for links.
static const UIPaintAppearanceProperty	separatorPaintProperty
	The color to use for separators between different sections of content.
static const UIPaintAppearanceProperty	selectedContentBackgroundPaintProperty
	The color to use for the background of selected and emphasized content.
static const UIPaintAppearanceProperty	unemphasizedSelectedContentBackgroundPaintProperty
	The color to use for selected and unemphasized content.
static const UIPaintAppearanceProperty	selectedMenuItemTextPaintProperty
	The color to use for the text in menu items.
static const UIPaintAppearanceProperty	gridPaintProperty
	The color to use for the optional gridlines, such as those in a table view.
static const UIPaintAppearanceProperty	headerTextPaintProperty
	The color to use for text in header cells in table views and outline views.
static const UIPaintAppearanceProperty	alternatingContentBackgroundColorsProperty
	The colors to use for alternating content, typically found in table views and collection views.
static const UIPaintAppearanceProperty	controlAccentPaintProperty
	The user's current accent color preference.
static const UIPaintAppearanceProperty	controlPaintProperty
	The color to use for the flat surfaces of a control.
static const UIPaintAppearanceProperty	controlBackgroundPaintProperty
	The color to use for the background of large controls, such as scroll views or table views.
static const UIPaintAppearanceProperty	controlTextPaintProperty
	The color to use for text on enabled controls.
static const UIPaintAppearanceProperty	disabledControlTextPaintProperty
	The color to use for text on disabled controls.
static const UIPaintAppearanceProperty	currentControlTintProperty
	The current system control tint color.
static const UIPaintAppearanceProperty	selectedControlPaintProperty
	The color to use for the face of a selected control—that is, a control that has been clicked or is being dragged.
static const UIPaintAppearanceProperty	selectedControlTextPaintProperty
	The color to use for text in a selected control—that is, a control being clicked or dragged.
static const UIPaintAppearanceProperty	alternateSelectedControlTextPaintProperty
	The color to use for text in a selected control.
static const UIPaintAppearanceProperty	scrubberTexturedBackgroundPaintProperty
	The patterned color to use for the background of a scrubber control.
static const UIPaintAppearanceProperty	windowBackgroundPaintProperty
	The color to use for the window background.
static const UIPaintAppearanceProperty	windowFrameTextPaintProperty
	The color to use for text in a window's frame.
static const UIPaintAppearanceProperty	underPageBackgroundPaintProperty
	The color to use in the area beneath your window's views.
static const UIPaintAppearanceProperty	findHighlightPaintProperty
	The highlight color to use for the bubble that shows inline search result values.
static const UIPaintAppearanceProperty	highlightPaintProperty
	The color to use as a virtual light source on the screen.
static const UIPaintAppearanceProperty	shadowPaintProperty
	The color to use for virtual shadows cast by raised objects on the screen.
static const UIFontAppearanceProperty	fontProperty
	The default font used by all UI elements.
static const UIFloatAppearanceProperty	fontSizeProperty
	The default font size used by all UI elements.

Detailed Description

An object that clips a document view to a scroll view's frame.

An UIClipView holds the document view of an UIScrollView, clipping the document view to its frame, handling the details of scrolling in an efficient manner, and updating the UIScrollView when the document view's size or position changes.

You don't typically use the UIClipView class directly; it's provided primarily as the scrolling machinery for the UIScrollView class. However, you might use the UIClipView class to implement a class similar to UIScrollView.

Member Typedef Documentation

super

using CeresEngine::UIClipView::super = UIView

private

Member Function Documentation

constrainScrollPoint()

UIPoint CeresEngine::UIClipView::constrainScrollPoint ( UIPoint  point )

protected

displayIgnoringOpacity()

void CeresEngine::UIClipView::displayIgnoringOpacity ( UIGraphicsContext &  context, const UIRect &  aRect  )

overridevirtual

Displays the view but does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.

Parameters

context

The graphics context in which drawing will occur.

Reimplemented from CeresEngine::UIView.

getDocumentRect()

UIRect CeresEngine::UIClipView::getDocumentRect

(

)

const

The rectangle defining the document view's frame, adjusted to the size of the clip view if the document view is smaller.

getDocumentView()

UIView * CeresEngine::UIClipView::getDocumentView ( ) const

inline

The clip view's document view.

getDocumentVisibleRect()

UIRect CeresEngine::UIClipView::getDocumentVisibleRect

(

)

const

The exposed rectangle of the clip view's document view, in the document view's own coordinate system.

Note that this rectangle doesn't reflect the effects of any clipping that may occur above the UIClipView itself.

layoutSubviews()

void CeresEngine::UIClipView::layoutSubviews ( )

overridevirtual

Lays out subviews.

Subclasses can override this method as needed to perform more precise layout of their subviews. You should override this method only if the autoresizing behavior of the subviews do not offer the behavior you want. You can use your implementation to set the frame rectangles of your subviews directly.

You should not call this method directly. If you want to force a layout update, call the setNeedsLayout() method instead to do so prior to the next drawing update. If you want to update the layout of your views immediately, call the layoutIfNeeded() method.

Reimplemented from CeresEngine::UIView.

notifyScrollViewOfChange()

void CeresEngine::UIClipView::notifyScrollViewOfChange ( )

protected

scroll()

void CeresEngine::UIClipView::scroll

(

const UIPoint &

newOrigin

)

Changes the origin of the clip view's bounds rectangle to newOrigin.

setDocumentView()

void CeresEngine::UIClipView::setDocumentView

(

UIView *

documentView

)

The clip view's document view.

Member Data Documentation

mContentInsets

UIEdgeInsets CeresEngine::UIClipView::mContentInsets

private

The distance that the content view is inset from the enclosing scroll view.

When the enclosing scroll view's contentInsets value is nonzero (that is, the value is not {0,0,0,0}), the scroll view sets the frame of its content view to the scroll view's bounds minus the scroll view's border, if it has one. (When the contentInsets value is equal to zero, the scroll view adjusts its contentView.frame to fit inside all the other views the scroll view maintains.)

mDocumentView

UIViewPtr CeresEngine::UIClipView::mDocumentView

private

The clip view's document view.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/UI/UIClipView.hpp
