CeresEngine::VKBuffer Class Reference

#include <CeresEngine/RenderAPI/Vulkan/VKBuffer.hpp>

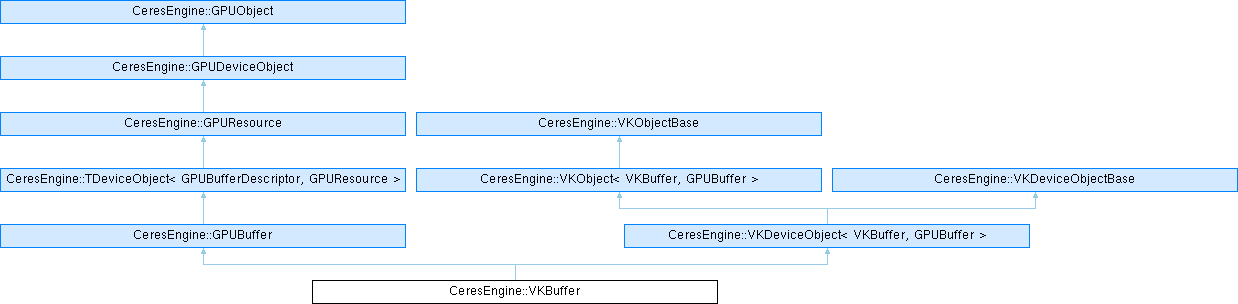

Inheritance diagram for CeresEngine::VKBuffer:

Public Types
using	Allocator = VKObjectAllocator
	An allocator type used to allocate new VKBuffer instances from a memory pool.
Public Types inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
using	Descriptor = GPUBufferDescriptor
	An type-alias to the descriptor struct type.

Public Member Functions
	VKBuffer (VKDevice &device, VKMemoryAllocator &memoryAllocator, const GPUBufferDescriptor &descriptor)
	Creates a new Vulkan buffer object.
	~VKBuffer () final
	Destroys the buffer object and releases the GPU memory.
	operator VkBuffer () const noexcept
	The Vulkan buffer object.
GPUBufferData	map () final
void	unmap () final
GPUBufferSize	getSize () const final
void	flush (GPUBufferSize offset=0, GPUBufferSize size=whole) final
void	invalidate (GPUBufferSize offset=0, GPUBufferSize size=whole) final
Public Member Functions inherited from CeresEngine::GPUBuffer
	GPUBuffer (const GPUBuffer &)=delete
	Deleted copy constructor.
GPUBuffer &	operator= (const GPUBuffer &)=delete
	GPUBuffer (GPUBuffer &&)=delete
	Deleted move constructor.
GPUBuffer &	operator= (GPUBuffer &&)=delete
Async< ByteBuffer >	read (GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous read operation on the buffer.
Async< ByteBuffer >	read (GPUCommandBuffer &commandBuffer, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous read operation on the buffer in an specific command buffer.
Async	write (ByteBuffer &&rawData, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous write operation on the buffer.
Async	write (GPUCommandBuffer &commandBuffer, ByteBuffer &&rawData, GPUBufferSize offset=0, GPUBufferSize size=whole)
	Performs an asynchronous write operation on the buffer in an specific command buffer.
template<typename Block >
void	data (Block &&block)
	Executes block with a pointer that gives direct access to the buffer data.
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUResource
	GPUDeviceObject (GPUDevice &device)
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.
Public Member Functions inherited from CeresEngine::VKDeviceObjectBase
	VKDeviceObjectBase (VKDevice &device) noexcept
	Creates a new VKDeviceObjectBase from the given device.
	~VKDeviceObjectBase () noexcept
	Destroys the VKDeviceObjectBase.

Static Public Member Functions
static Allocator &	getAllocator () noexcept
	Returns the allocator for VKBuffer.
static void *	operator new (size_t size) noexcept
	Allocates memory for a new instance of VKBuffer.
static void	operator delete (void *p, std::size_t size) noexcept
	Deletes memory for an instance of VKBuffer.
Static Public Member Functions inherited from CeresEngine::VKObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Static Public Member Functions inherited from CeresEngine::VKObjectBase
static void *	operator new (size_t size) noexcept
static void	operator delete (void *p, std::size_t sz) noexcept

Private Attributes
const GPUBufferDescriptor	descriptorVK
	A structure that describes the buffer and it's properties.
VkBuffer	mBuffer = VK_NULL_HANDLE
	The Vulkan buffer object.
VKMemoryAllocation	mBufferMemory
	The allocated memory.
GPUBufferData	mMappedMemory = nullptr
	The buffer mapped memory address.

Additional Inherited Members
Public Attributes inherited from CeresEngine::TDeviceObject< GPUBufferDescriptor, GPUResource >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Public Attributes inherited from CeresEngine::VKDeviceObjectBase
VKDevice &	deviceVK
	The owning VKDevice instance.
Static Public Attributes inherited from CeresEngine::GPUBuffer
static const constexpr GPUBufferSize	whole = ~0UL
	A constant the represents the whole buffer length.
Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.
Protected Member Functions inherited from CeresEngine::VKDeviceObject< VKBuffer, GPUBuffer >
	VKDeviceObject (VKDevice &device) noexcept
	Creates a new VKDeviceObject from the given device.

Member Typedef Documentation

Allocator

using CeresEngine::VKBuffer::Allocator = VKObjectAllocator

An allocator type used to allocate new VKBuffer instances from a memory pool.

Constructor & Destructor Documentation

VKBuffer()

CeresEngine::VKBuffer::VKBuffer	(	VKDevice &	device,
		VKMemoryAllocator &	memoryAllocator,
		const GPUBufferDescriptor &	descriptor
	)

Creates a new Vulkan buffer object.

Parameters

device	The device to allocate a new buffer from.
memoryAllocator	The memory allocator
descriptor	The buffer descriptor

~VKBuffer()

CeresEngine::VKBuffer::~VKBuffer ( )

final

Destroys the buffer object and releases the GPU memory.

Member Function Documentation

flush()

void CeresEngine::VKBuffer::flush ( GPUBufferSize  offset = 0, GPUBufferSize  size = whole  )

finalvirtual

Implements CeresEngine::GPUBuffer.

getAllocator()

static Allocator & CeresEngine::VKBuffer::getAllocator ( )

staticnoexcept

Returns the allocator for VKBuffer.

getSize()

GPUBufferSize CeresEngine::VKBuffer::getSize ( ) const

finalvirtual

Implements CeresEngine::GPUBuffer.

invalidate()

void CeresEngine::VKBuffer::invalidate ( GPUBufferSize  offset = 0, GPUBufferSize  size = whole  )

finalvirtual

Implements CeresEngine::GPUBuffer.

map()

GPUBufferData CeresEngine::VKBuffer::map ( )

finalvirtual

Implements CeresEngine::GPUBuffer.

operator delete()

static void CeresEngine::VKBuffer::operator delete ( void *  p, std::size_t  size  )

staticnoexcept

Deletes memory for an instance of VKBuffer.

operator new()

static void * CeresEngine::VKBuffer::operator new ( size_t  size )

staticnoexcept

Allocates memory for a new instance of VKBuffer.

operator VkBuffer()

CeresEngine::VKBuffer::operator VkBuffer ( ) const

inlinenoexcept

The Vulkan buffer object.

unmap()

void CeresEngine::VKBuffer::unmap ( )

finalvirtual

Implements CeresEngine::GPUBuffer.

Member Data Documentation

descriptorVK

const GPUBufferDescriptor CeresEngine::VKBuffer::descriptorVK

private

A structure that describes the buffer and it's properties.

mBuffer

VkBuffer CeresEngine::VKBuffer::mBuffer = VK_NULL_HANDLE

private

The Vulkan buffer object.

mBufferMemory

VKMemoryAllocation CeresEngine::VKBuffer::mBufferMemory

private

The allocated memory.

mMappedMemory

GPUBufferData CeresEngine::VKBuffer::mMappedMemory = nullptr

private

The buffer mapped memory address.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/Vulkan/VKBuffer.hpp
