CeresEngine::VKSwapchain Class Reference

#include <CeresEngine/RenderAPI/Vulkan/VKSwapchain.hpp>

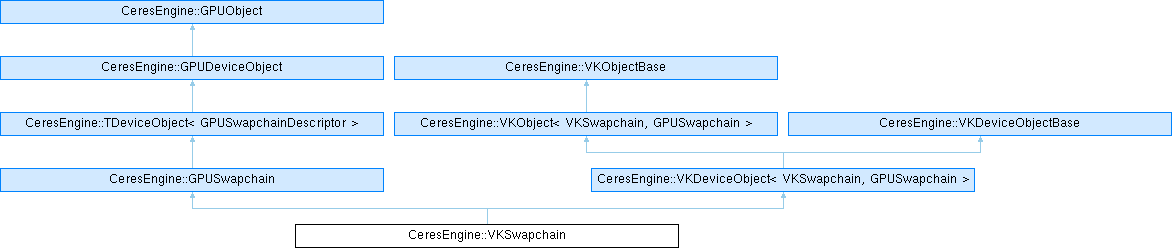

Inheritance diagram for CeresEngine::VKSwapchain:

Public Member Functions
	VKSwapchain (VKDevice &device, const GPUSwapchainDescriptor &descriptor, VkSurfaceKHR surface)
	Creates a new VKSwapchain for the given device
	~VKSwapchain () override
	Destroys the VKSwapchain object.
GPUImagePtr	nextRenderImage () override
void	present () override
	Presents a image from the getSwapchain. The command buffer that signals.
VkSemaphore	getImageAvailableSemaphore () const
VkSemaphore	getRenderFinishedSemaphore () const
Public Member Functions inherited from CeresEngine::GPUSwapchain
	GPUSwapchain (const GPUSwapchain &)=delete
	Deleted copy constructor.
GPUSwapchain &	operator= (const GPUSwapchain &)=delete
	GPUSwapchain (GPUSwapchain &&)=delete
	Deleted move constructor.
GPUSwapchain &	operator= (GPUSwapchain &&)=delete
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPUSwapchainDescriptor >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.
Public Member Functions inherited from CeresEngine::VKDeviceObjectBase
	VKDeviceObjectBase (VKDevice &device) noexcept
	Creates a new VKDeviceObjectBase from the given device.
	~VKDeviceObjectBase () noexcept
	Destroys the VKDeviceObjectBase.

Protected Attributes
VkSurfaceKHR	mSurface = VK_NULL_HANDLE
	The Vulkan surface object.
VkSwapchainKHR	mSwapchain = VK_NULL_HANDLE
	The Vulkan swapchain object.
Vector< VKImagePtr, VKAllocator >	mRenderImages {gVKAllocator()}
	The Vulkan framebuffer object.
VKCommandQueuePtr	mPresentQueue
	The Vulkan presentation queue.
UInt32	mCurrentRenderImageIndex = 0
	The currently active swapchain index.
SmallVector< VkSemaphore, 3 >	mImageAvailableSemaphore
	The Vulkan available semaphore.
SmallVector< VkSemaphore, 3 >	mRenderFinishedSemaphore
	The Vulkan render finished semaphore.
GPUSwapchainDescriptor	mDescriptor
	The swapchain descriptor.
size_t	mCurrentFrame = 0

Private Member Functions
void	recreate ()
	Recrreates the Vulkan swapchain.

Additional Inherited Members
Public Types inherited from CeresEngine::TDeviceObject< GPUSwapchainDescriptor >
using	Descriptor = GPUSwapchainDescriptor
	An type-alias to the descriptor struct type.
Static Public Member Functions inherited from CeresEngine::VKObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Static Public Member Functions inherited from CeresEngine::VKObjectBase
static void *	operator new (size_t size) noexcept
static void	operator delete (void *p, std::size_t sz) noexcept
Public Attributes inherited from CeresEngine::TDeviceObject< GPUSwapchainDescriptor >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Public Attributes inherited from CeresEngine::VKDeviceObjectBase
VKDevice &	deviceVK
	The owning VKDevice instance.
Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.
Protected Member Functions inherited from CeresEngine::VKDeviceObject< VKSwapchain, GPUSwapchain >
	VKDeviceObject (VKDevice &device) noexcept
	Creates a new VKDeviceObject from the given device.

Constructor & Destructor Documentation

VKSwapchain()

CeresEngine::VKSwapchain::VKSwapchain ( VKDevice &  device, const GPUSwapchainDescriptor &  descriptor, VkSurfaceKHR  surface  )

explicit

Creates a new VKSwapchain for the given device

Parameters

device	The device to create a swapchain for
descriptor	The swapchain descriptor
surface	The Vulkan surface

~VKSwapchain()

CeresEngine::VKSwapchain::~VKSwapchain ( )

override

Destroys the VKSwapchain object.

Member Function Documentation

getImageAvailableSemaphore()

VkSemaphore CeresEngine::VKSwapchain::getImageAvailableSemaphore

(

)

const

getRenderFinishedSemaphore()

VkSemaphore CeresEngine::VKSwapchain::getRenderFinishedSemaphore

(

)

const

nextRenderImage()

GPUImagePtr CeresEngine::VKSwapchain::nextRenderImage ( )

overridevirtual

Returns

The next render image in the getSwapchain

Implements CeresEngine::GPUSwapchain.

present()

void CeresEngine::VKSwapchain::present ( )

overridevirtual

Presents a image from the getSwapchain. The command buffer that signals.

Implements CeresEngine::GPUSwapchain.

recreate()

void CeresEngine::VKSwapchain::recreate ( )

private

Recrreates the Vulkan swapchain.

Member Data Documentation

mCurrentFrame

size_t CeresEngine::VKSwapchain::mCurrentFrame = 0

protected

mCurrentRenderImageIndex

UInt32 CeresEngine::VKSwapchain::mCurrentRenderImageIndex = 0

protected

The currently active swapchain index.

mDescriptor

GPUSwapchainDescriptor CeresEngine::VKSwapchain::mDescriptor

protected

The swapchain descriptor.

mImageAvailableSemaphore

SmallVector<VkSemaphore, 3> CeresEngine::VKSwapchain::mImageAvailableSemaphore

protected

The Vulkan available semaphore.

mPresentQueue

VKCommandQueuePtr CeresEngine::VKSwapchain::mPresentQueue

protected

The Vulkan presentation queue.

mRenderFinishedSemaphore

SmallVector<VkSemaphore, 3> CeresEngine::VKSwapchain::mRenderFinishedSemaphore

protected

The Vulkan render finished semaphore.

mRenderImages

Vector<VKImagePtr, VKAllocator> CeresEngine::VKSwapchain::mRenderImages {gVKAllocator()}

protected

The Vulkan framebuffer object.

mSurface

VkSurfaceKHR CeresEngine::VKSwapchain::mSurface = VK_NULL_HANDLE

protected

The Vulkan surface object.

mSwapchain

VkSwapchainKHR CeresEngine::VKSwapchain::mSwapchain = VK_NULL_HANDLE

protected

The Vulkan swapchain object.

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/Vulkan/VKSwapchain.hpp
