#include <CeresEngine/RenderAPI/GPUCommandBuffer.hpp>

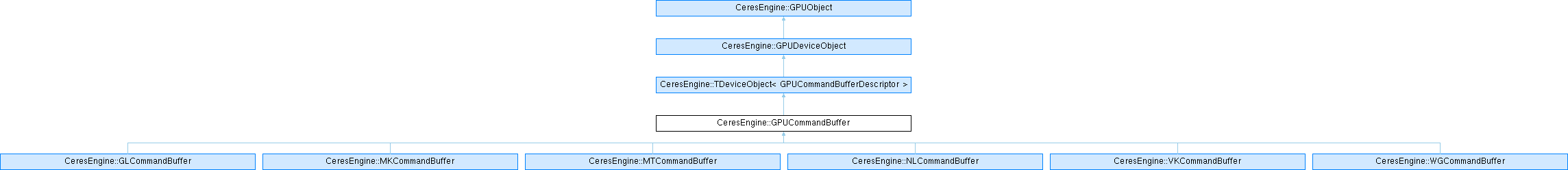

Inheritance diagram for CeresEngine::GPUCommandBuffer:

Public Member Functions
	GPUCommandBuffer (const GPUCommandBuffer &)=delete
	Deleted copy constructor.

GPUCommandBuffer &	operator= (const GPUCommandBuffer &)=delete

	GPUCommandBuffer (GPUCommandBuffer &&)=delete
	Deleted move constructor.

GPUCommandBuffer &	operator= (GPUCommandBuffer &&)=delete

virtual void	bindResourceSet (GPUResourceSet &resourceSet, UInt32 firstSet=0, Int32 offset=-1)=0
	Binds the specified resource heap to the graphics pipeline.

void	bindResourceSet (const GPUResourceSetPtr &resourceSet, const UInt32 firstSet=0, const Int32 offset=-1)

virtual void	bindVertexBuffer (GPUBuffer &vertexBuffer, UInt32 offset=0, UInt32 slot=0)=0
	Binds a vertex buffer for drawing.

void	bindVertexBuffer (const GPUBufferPtr &vertexBuffer, const UInt32 offset=0, const UInt32 slot=0)

virtual void	bindVertexBuffer (const GPUVertexBuffer &vertexBuffer)
	Binds a vertex buffer for drawing.

virtual void	bindIndexBuffer (GPUBuffer &indexBuffer, UInt32 offset=0, IndexType indexType=IndexType::UInt32)=0
	Binds a index buffer for drawing.

void	bindIndexBuffer (const GPUBufferPtr &indexBuffer, const UInt32 offset=0, const IndexType indexType=IndexType::UInt32)

virtual void	bindIndexBuffer (const GPUIndexBuffer &indexBuffer)
	Binds a index buffer for drawing.

virtual void	draw (UInt32 vertexCount, UInt32 instanceCount=1, UInt32 firstVertex=0, UInt32 firstInstance=0)=0
	Submits a draw command using the bound vertex buffer.

virtual void	draw (GPUBuffer &buffer, UInt32 drawCount, UInt32 bufferOffset=0, UInt32 stride=sizeof(GPUDrawIndirectCommand))=0
	Submits an indirect draw command using the bound vertex buffer.

void	draw (const GPUIndirectBuffer &buffer, UInt32 drawCount, UInt32 stride=sizeof(GPUDrawIndirectCommand))

virtual void	drawIndexed (UInt32 indexCount, UInt32 instanceCount=1, UInt32 firstVertex=0, Int32 vertexOffset=0, UInt32 firstInstance=0)=0
	Submits a draw command using the bound vertex and index buffer.

virtual void	drawIndexed (GPUBuffer &buffer, UInt32 drawCount, UInt32 bufferOffset=0, UInt32 stride=sizeof(GPUDrawIndexedIndirectCommand))=0
	Submits an indirect indexed draw command using the bound vertex and index buffer.

void	drawIndexed (const GPUIndirectBuffer &buffer, UInt32 drawCount, UInt32 stride=sizeof(GPUDrawIndexedIndirectCommand))

virtual void	dispatch (UInt32 groupCountX, UInt32 groupCountY, UInt32 groupCountZ)=0
	Dispatches a compute command.

virtual void	setViewport (const Viewport &viewport)
	Sets a single viewport.

virtual void	setViewports (const SmallVector< Viewport, 16 > &viewports)=0
	Sets an array of viewports.

virtual void	setScissor (const Scissor &scissor)
	Sets a single scissor rectangle.

virtual void	setScissors (const SmallVector< Scissor, 16 > &scissors)=0
	Sets an array of scissor rectangles, but only if the scissor test was enabled in the previously set graphics pipeline (otherwise, this function has no effect).

void	buildAccelerationStructures ()

void	buildAccelerationStructuresIndirect ()

void	copyAccelerationStructure ()

void	copyAccelerationStructureToMemory ()

void	copyMemoryToAccelerationStructure ()

void	writeAccelerationStructuresProperties ()

void	setRayTracingPipelineStackSize ()

void	traceRays ()

void	traceRaysIndirect ()

virtual void	drawMeshTasks (UInt32 groupCountX, UInt32 groupCountY, UInt32 groupCountZ)=0
	Draw mesh task work items.

virtual void	drawMeshTasksIndirect (GPUBuffer &buffer, UInt64 offset, UInt32 drawCount, UInt32 stride)=0
	Issue an indirect mesh tasks draw into a command buffer.

virtual void	drawMeshTasksIndirect (GPUBuffer &buffer, UInt64 offset, GPUBuffer &countBuffer, UInt64 countBufferOffset, uint32_t maxDrawCount, uint32_t stride)=0
	Perform an indirect mesh tasks draw with the draw count sourced from a buffer.

virtual void	updateBuffer (GPUBuffer &dstBuffer, std::uint64_t dstOffset, const void *data, std::uint16_t dataSize)=0
	Updates the data of the specified buffer during encoding the command buffer.

virtual void	copyBuffer (GPUBuffer &dstBuffer, std::uint64_t dstOffset, GPUBuffer &srcBuffer, std::uint64_t srcOffset, std::uint64_t size)=0
	Encodes a buffer copy command for the specified buffer region.

virtual void	fillBuffer (GPUBuffer &dstBuffer, std::uint64_t dstOffset, std::uint32_t value, std::uint64_t fillSize=~0u)=0
	Fills the destination buffer with copies of the specified 32-bit value.

virtual void	copyBufferFromImage (GPUBuffer &dstBuffer, std::uint64_t dstOffset, GPUImage &srcImage, const GPUImageRegion &srcImageRegion, std::uint32_t rowStride=0, std::uint32_t layerStride=0)=0
	Encodes a buffer copy command that blits data from a source image.

virtual void	copyImage (GPUImage &dstImage, const GPUImageLocation &dstLocation, GPUImage &srcImage, const GPUImageLocation &srcLocation, const TExtent3< UInt32 > &extent)=0
	Encodes a image copy command for the specified image regions.

virtual void	copyImageFromBuffer (GPUImage &dstImage, const GPUImageRegion &dstRegion, GPUBuffer &srcBuffer, std::uint64_t srcOffset, std::uint32_t rowStride=0, std::uint32_t layerStride=0)=0
	Encodes a image copy command that blits data from a source buffer.

virtual void	resolveImage (GPUImage &dstImage, const GPUImageLocation &dstLocation, GPUImage &srcImage, const GPUImageLocation &srcLocation, const TExtent3< UInt32 > &extent)=0

virtual void	clear (GPUImage &image)=0

virtual void	generateMips (GPUImage &image)=0
	Generates all MIP-maps for the specified image.

virtual void	generateMips (GPUImage &texture, const GPUImageSubresource &subresource)=0
	Generates a range of MIP-maps for the specified texture.

virtual void	barrier (GPUImage &image, GPUImageLayout layout)=0

virtual void	begin ()=0
	Begins with the encoding (also referred to as "recording") of this command buffer.

virtual void	end ()=0
	Ends the encoding (also referred to as "recording") of this command buffer.

virtual void	wait ()=0

template<typename Func >
decltype(auto)	record (Func &&recorder)
	Records a sequence of commands to be executed by the GPU.

	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.

	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.

	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.

Public Member Functions inherited from CeresEngine::TDeviceObject< GPUCommandBufferDescriptor >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.

	TDeviceObject (const TDeviceObject &)=delete

	TDeviceObject (TDeviceObject &&)=delete

	~TDeviceObject () override=default

TDeviceObject &	operator= (const TDeviceObject &)=delete

TDeviceObject &	operator= (TDeviceObject &&)=delete

Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)

	~GPUDeviceObject () override

Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default

virtual	~GPUObject ()=default

	GPUObject (const GPUObject &)=delete

GPUObject &	operator= (const GPUObject &)=delete

	GPUObject (GPUObject &&)=delete

GPUObject &	operator= (GPUObject &&)=delete

void	retain () noexcept
	Retains the object by increment it's reference count by one.

bool	release () noexcept
	Releases the object by decrementing it's reference count by one.

Public Attributes
Event< void()>	didFinish
	An event triggered whenever the command buffer has finished execution.

Public Attributes inherited from CeresEngine::TDeviceObject< GPUCommandBufferDescriptor >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.

Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.

Additional Inherited Members
Public Types inherited from CeresEngine::TDeviceObject< GPUCommandBufferDescriptor >
using	Descriptor = GPUCommandBufferDescriptor
	An type-alias to the descriptor struct type.

Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.

Constructor & Destructor Documentation

◆ GPUCommandBuffer() [1/2]

CeresEngine::GPUCommandBuffer::GPUCommandBuffer ( const GPUCommandBuffer & )

delete

Deleted copy constructor.

◆ GPUCommandBuffer() [2/2]

CeresEngine::GPUCommandBuffer::GPUCommandBuffer ( GPUCommandBuffer && )

delete

Deleted move constructor.

Member Function Documentation

◆ barrier()

virtual void CeresEngine::GPUCommandBuffer::barrier	(	GPUImage &	image,
		GPUImageLayout	layout
	)

pure virtual

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, and CeresEngine::VKCommandBuffer.

◆ begin()

virtual void CeresEngine::GPUCommandBuffer::begin ( )

pure virtual

Begins with the encoding (also referred to as "recording") of this command buffer.

Remarks: All functions of the CommandBuffer interface must be used between a call to begin() and end().; This function also resets all previously encoded commands.

See also: end

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ bindIndexBuffer() [1/3]

void CeresEngine::GPUCommandBuffer::bindIndexBuffer	(	const GPUBufferPtr &	indexBuffer,
		const UInt32	offset = `0`,
		const IndexType	indexType = `IndexType::UInt32`
	)

inline

◆ bindIndexBuffer() [2/3]

virtual void CeresEngine::GPUCommandBuffer::bindIndexBuffer ( const GPUIndexBuffer & indexBuffer )

virtual

Binds a index buffer for drawing.

Parameters

indexBuffer The index buffer to be bound

◆ bindIndexBuffer() [3/3]

virtual void CeresEngine::GPUCommandBuffer::bindIndexBuffer	(	GPUBuffer &	indexBuffer,
		UInt32	offset = `0`,
		IndexType	indexType = `IndexType::UInt32`
	)

pure virtual

Binds a index buffer for drawing.

Parameters

indexBuffer	The index buffer to be bound
offset	The amount of bytes to offset the buffer
indexType	The index buffer type. By default uses `uint32`.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ bindResourceSet() [1/2]

void CeresEngine::GPUCommandBuffer::bindResourceSet	(	const GPUResourceSetPtr &	resourceSet,
		const UInt32	firstSet = `0`,
		const Int32	offset = `-1`
	)

inline

◆ bindResourceSet() [2/2]

virtual void CeresEngine::GPUCommandBuffer::bindResourceSet	(	GPUResourceSet &	resourceSet,
		UInt32	firstSet = `0`,
		Int32	offset = `-1`
	)

pure virtual

Binds the specified resource heap to the graphics pipeline.

Parameters

resourceSet	Specifies the resource heap that contains all shader resources that will be bound to the shader pipeline.
firstSet	Specifies the set number of the first layout resource.
offset	The offset to apply to the buffer before binding

Remarks: This may invalidate the previously bound resource heap for both the graphics and compute pipeline.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ bindVertexBuffer() [1/3]

void CeresEngine::GPUCommandBuffer::bindVertexBuffer	(	const GPUBufferPtr &	vertexBuffer,
		const UInt32	offset = `0`,
		const UInt32	slot = `0`
	)

inline

◆ bindVertexBuffer() [2/3]

virtual void CeresEngine::GPUCommandBuffer::bindVertexBuffer ( const GPUVertexBuffer & vertexBuffer )

virtual

Binds a vertex buffer for drawing.

Parameters

vertexBuffer The vertex buffer to be bound

◆ bindVertexBuffer() [3/3]

virtual void CeresEngine::GPUCommandBuffer::bindVertexBuffer	(	GPUBuffer &	vertexBuffer,
		UInt32	offset = `0`,
		UInt32	slot = `0`
	)

pure virtual

Binds a vertex buffer for drawing.

Parameters

vertexBuffer	The vertex buffer to be bound.
offset	The amount of bytes to offset the buffer.
slot	The slot to bind the vertex buffer to.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ buildAccelerationStructures()

void CeresEngine::GPUCommandBuffer::buildAccelerationStructures ( )

◆ buildAccelerationStructuresIndirect()

void CeresEngine::GPUCommandBuffer::buildAccelerationStructuresIndirect ( )

◆ clear()

virtual void CeresEngine::GPUCommandBuffer::clear ( GPUImage & image )

pure virtual

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ copyAccelerationStructure()

void CeresEngine::GPUCommandBuffer::copyAccelerationStructure ( )

◆ copyAccelerationStructureToMemory()

void CeresEngine::GPUCommandBuffer::copyAccelerationStructureToMemory ( )

◆ copyBuffer()

virtual void CeresEngine::GPUCommandBuffer::copyBuffer	(	GPUBuffer &	dstBuffer,
		std::uint64_t	dstOffset,
		GPUBuffer &	srcBuffer,
		std::uint64_t	srcOffset,
		std::uint64_t	size
	)

pure virtual

Encodes a buffer copy command for the specified buffer region.

Parameters

dstBuffer	Specifies the destination buffer whose data is to be updated.
dstOffset	Specifies the destination offset (in bytes) at which the destination buffer is to be updated. This offset plus the size (i.e. `dstOffset + size`) must be less than or equal to the size of the destination buffer.
srcBuffer	Specifies the source buffer whose data is to be read from.
srcOffset	Specifies the source offset (in bytes) at which the source buffer is to be read from. This offset plus the size (i.e. `srcOffset + size`) must be less than or equal to the size of the source buffer.
size	Specifies the size of the buffer region to copy.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ copyBufferFromImage()

virtual void CeresEngine::GPUCommandBuffer::copyBufferFromImage	(	GPUBuffer &	dstBuffer,
		std::uint64_t	dstOffset,
		GPUImage &	srcImage,
		const GPUImageRegion &	srcImageRegion,
		std::uint32_t	rowStride = `0`,
		std::uint32_t	layerStride = `0`
	)

pure virtual

Encodes a buffer copy command that blits data from a source image.

Parameters

dstBuffer	Specifies the destination buffer whose data is to be updated. This buffer must have been created with the usage flag `BufferUsage::Destination`.
dstOffset	Specifies the destination offset (in bytes) at which the source buffer is to be updated. This must be a multiple of 4.
srcImage	Specifies the source image whose data is to be read from. This image must have been created with the usage flag `ImageUsage::Source` and its format must not be compressed or packed.
srcImageRegion	Specifies the source region where the image is to be read from. Note that the `numMipLevels` attribute of this parameter must be 1.
rowStride	Specifies an optional stride (in bytes) per row in the source buffer. By default 0.
layerStride	Specifies an optional stride (in bytes) per layer in the source buffer. This must be a multiple of `rowStride`. If `rowStride` is zero, then `layerStride` must also be zero. By default 0.

Remarks: This is called "copy buffer from image" instead of "copy image to buffer" to be uniform with the notation buffer := image, or memcpy(destination, source, size).; If rowStride is 0, the source data is considered to be tightly packed for each array layer and the required alignment is managed automatically.; If rowStride is not 0, it must be greater than or equal to the size (in bytes) of each row in the image region with respect to the image's format.; The same rules of rowStride also apply to layerStride.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ copyImage()

virtual void CeresEngine::GPUCommandBuffer::copyImage	(	GPUImage &	dstImage,
		const GPUImageLocation &	dstLocation,
		GPUImage &	srcImage,
		const GPUImageLocation &	srcLocation,
		const TExtent3< UInt32 > &	extent
	)

pure virtual

Encodes a image copy command for the specified image regions.

Parameters

dstImage	Specifies the destination image whose data is to be updated.
dstLocation	Specifies the destination location, including MIP-map level and offset. Its offset plus the extent (i.e. `dstLocation.offset + extent`) must be less than or equal to the size of the destination image.
srcImage	Specifies the source image whose data is to be read from.
srcLocation	Specifies the source location, including MIP-map level and offset. Its offset plus the extent (i.e. `srcLocation.offset + extent`) must be less than or equal to the size of the source image.
extent	Specifies the extent of the image region to copy (see ImageDescriptor::extent). For this function, the extent also includes the array layers, i.e. `y` component for 1D arrays (`ImageType::Image1DArray`), and `z` component for 2D and cube arrays (`ImageType::Image2DArray` and `ImageType::ImageCubeArray`).

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ copyImageFromBuffer()

virtual void CeresEngine::GPUCommandBuffer::copyImageFromBuffer	(	GPUImage &	dstImage,
		const GPUImageRegion &	dstRegion,
		GPUBuffer &	srcBuffer,
		std::uint64_t	srcOffset,
		std::uint32_t	rowStride = `0`,
		std::uint32_t	layerStride = `0`
	)

pure virtual

Encodes a image copy command that blits data from a source buffer.

Parameters

dstImage	Specifies the destination image whose data is to be updated. This image must have been created with the usage flag `ImageUsage::Destination` and its format must not be compressed or packed.
dstRegion	Specifies the destination region where the image is to be updated. Note that the `numMipLevels` attribute of this parameter must be 1.
srcBuffer	Specifies the source buffer whose data is to be read from. This buffer must have been created with the usage flag `BufferUsage::Source`.
srcOffset	Specifies the source offset (in bytes) at which the source buffer is to be read from. This must be a multiple of 4.
rowStride	Specifies an optional stride (in bytes) per row in the source buffer. By default 0.
layerStride	Specifies an optional stride (in bytes) per layer in the source buffer. This must be a multiple of `rowStride`. If `rowStride` is zero, then `layerStride` must also be zero. By default 0.

Remarks: This is called "copy image from buffer" instead of "copy buffer to image" to be uniform with the notation image := buffer, or memcpy(destination, source, size).; If rowStride is 0, the source data is considered to be tightly packed for each array layer and the required alignment is managed automatically.; If rowStride is not 0, it must be greater than or equal to the size (in bytes) of each row in the image region with respect to the image's format.; The same rules of rowStride also apply to layerStride.

See also: CopyBufferFromImage; GetMemoryFootprint

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ copyMemoryToAccelerationStructure()

void CeresEngine::GPUCommandBuffer::copyMemoryToAccelerationStructure ( )

◆ dispatch()

virtual void CeresEngine::GPUCommandBuffer::dispatch	(	UInt32	groupCountX,
		UInt32	groupCountY,
		UInt32	groupCountZ
	)

pure virtual

Dispatches a compute command.

Parameters

groupCountX	The number of local workgroups to dispatch in the X dimension.
groupCountY	The number of local workgroups to dispatch in the Y dimension.
groupCountZ	The number of local workgroups to dispatch in the Z dimension.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ draw() [1/3]

void CeresEngine::GPUCommandBuffer::draw	(	const GPUIndirectBuffer &	buffer,
		UInt32	drawCount,
		UInt32	stride = `sizeof(GPUDrawIndirectCommand)`
	)

◆ draw() [2/3]

virtual void CeresEngine::GPUCommandBuffer::draw	(	GPUBuffer &	buffer,
		UInt32	drawCount,
		UInt32	bufferOffset = `0`,
		UInt32	stride = `sizeof(GPUDrawIndirectCommand)`
	)

pure virtual

Submits an indirect draw command using the bound vertex buffer.

Parameters

buffer	A buffer that holds `drawCount` structs of type `DrawIndirectCommand`. This buffer must have been created with `BufferUsage::Indirect` usage flag.
drawCount	The number of draws to execute, and can be zero.
bufferOffset	The byte offset into buffer where parameters begin.
stride	The byte stride between successive sets of draw parameters.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ draw() [3/3]

virtual void CeresEngine::GPUCommandBuffer::draw	(	UInt32	vertexCount,
		UInt32	instanceCount = `1`,
		UInt32	firstVertex = `0`,
		UInt32	firstInstance = `0`
	)

pure virtual

Submits a draw command using the bound vertex buffer.

Note: Instancing is automatically enabled/disabled based on instanceCount.

Parameters

vertexCount	The number of vertices per instance
instanceCount	The number of instances to be drawn
firstVertex	The vertex to start the draw command from
firstInstance	The instance to start the draw command from

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ drawIndexed() [1/3]

void CeresEngine::GPUCommandBuffer::drawIndexed	(	const GPUIndirectBuffer &	buffer,
		UInt32	drawCount,
		UInt32	stride = `sizeof(GPUDrawIndexedIndirectCommand)`
	)

◆ drawIndexed() [2/3]

virtual void CeresEngine::GPUCommandBuffer::drawIndexed	(	GPUBuffer &	buffer,
		UInt32	drawCount,
		UInt32	bufferOffset = `0`,
		UInt32	stride = `sizeof(GPUDrawIndexedIndirectCommand)`
	)

pure virtual

Submits an indirect indexed draw command using the bound vertex and index buffer.

Parameters

buffer	A buffer that holds `drawCount` structs of type `DrawIndexedIndirectCommand`. This buffer must have been created with `BufferUsage::Indirect` usage flag.
drawCount	The number of draws to execute, and can be zero.
bufferOffset	The byte offset into buffer where parameters begin.
stride	The byte stride between successive sets of draw parameters.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ drawIndexed() [3/3]

virtual void CeresEngine::GPUCommandBuffer::drawIndexed	(	UInt32	indexCount,
		UInt32	instanceCount = `1`,
		UInt32	firstVertex = `0`,
		Int32	vertexOffset = `0`,
		UInt32	firstInstance = `0`
	)

pure virtual

Submits a draw command using the bound vertex and index buffer.

Note: Instancing is automatically enabled/disabled based on instanceCount.

Parameters

indexCount	The number of vertex indices per instance
instanceCount	The number of instances to be drawn
firstVertex	The vertex to start the draw command from
vertexOffset	The offset to the first vertex
firstInstance	The instance to start the draw command from

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ drawMeshTasks()

virtual void CeresEngine::GPUCommandBuffer::drawMeshTasks	(	UInt32	groupCountX,
		UInt32	groupCountY,
		UInt32	groupCountZ
	)

pure virtual

Draw mesh task work items.

Parameters

groupCountX	The number of local workgroups to dispatch in the X dimension.
groupCountY	The number of local workgroups to dispatch in the Y dimension.
groupCountZ	The number of local workgroups to dispatch in the Z dimension.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, and CeresEngine::VKCommandBuffer.

◆ drawMeshTasksIndirect() [1/2]

virtual void CeresEngine::GPUCommandBuffer::drawMeshTasksIndirect	(	GPUBuffer &	buffer,
		UInt64	offset,
		GPUBuffer &	countBuffer,
		UInt64	countBufferOffset,
		uint32_t	maxDrawCount,
		uint32_t	stride
	)

pure virtual

Perform an indirect mesh tasks draw with the draw count sourced from a buffer.

Parameters

buffer
offset	The byte offset into buffer where parameters begin.
countBuffer	The buffer containing the draw count.
countBufferOffset	The byte offset into `countBuffer` where the draw count begins.
maxDrawCount	Specifies the maximum number of draws that will be executed. The actual number of executed draw calls is the minimum of the count specified in `countBuffer` and `maxDrawCount`.
stride	The byte stride between successive sets of draw parameters.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, and CeresEngine::VKCommandBuffer.

◆ drawMeshTasksIndirect() [2/2]

virtual void CeresEngine::GPUCommandBuffer::drawMeshTasksIndirect	(	GPUBuffer &	buffer,
		UInt64	offset,
		UInt32	drawCount,
		UInt32	stride
	)

pure virtual

Issue an indirect mesh tasks draw into a command buffer.

Parameters

buffer	The buffer containing draw parameters.
offset	The byte offset into buffer where parameters begin.
drawCount	The number of draws to execute, and can be zero.
stride	The byte stride between successive sets of draw parameters.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, and CeresEngine::VKCommandBuffer.

◆ end()

virtual void CeresEngine::GPUCommandBuffer::end ( )

pure virtual

Ends the encoding (also referred to as "recording") of this command buffer.

Remarks: After this call, the command buffer can be submitted to the CommandQueue or executed by a primary command buffer.

See also: begin; CommandQueue::submit(CommandBuffer&)

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ fillBuffer()

virtual void CeresEngine::GPUCommandBuffer::fillBuffer	(	GPUBuffer &	dstBuffer,
		std::uint64_t	dstOffset,
		std::uint32_t	value,
		std::uint64_t	fillSize = `~0u`
	)

pure virtual

Fills the destination buffer with copies of the specified 32-bit value.

Parameters

dstBuffer	Specifies the destination buffer whose data is to be updated. This command works with all kinds of buffers, but for performance reasons it is recommended to create this buffer with the usage flag `BufferUsage::Storage`.
dstOffset	Specifies the destination offset (in bytes) at which the destination buffer is to be updated.
value	Specifies the 32-bit value to fill the buffer with.
fillSize	Specifies the fill size (in bytes) of the buffer region. This must be a multiple of 4. By default `~0u`. If this is equal to `~0u`, `dstOffset` is ignored and the entire buffer will be filled.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ generateMips() [1/2]

virtual void CeresEngine::GPUCommandBuffer::generateMips ( GPUImage & image )

pure virtual

Generates all MIP-maps for the specified image.

Parameters

image Specifies the image whose MIP-maps are to be generated. This image must have been created with the binding flags ImageUsage::Sampled and ImageUsage::ColorAttachment.

Remarks: You can only call this method outside of a render pass.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ generateMips() [2/2]

virtual void CeresEngine::GPUCommandBuffer::generateMips	(	GPUImage &	texture,
		const GPUImageSubresource &	subresource
	)

pure virtual

Generates a range of MIP-maps for the specified texture.

Parameters

texture	Specifies the image whose MIP-maps are to be generated. This image must have been created with the usage flags `ImageUsageFlag::Sampled` and `ImageUsageFlag::Attachment`.
subresource	Specifies the texture subresource, i.e. the range of MIP-maps that are to be updated.

Remarks: This function guarantees to generate only the MIP-maps in the specified range (specified by subresource). However, this function may introduce a performance penalty compared to generating the full MIP chain if texture views are not natively supported by the backend. It is therefore recommended to use this function only if the range of MIP-maps is significantly smaller than the entire MIP chain, e.g. only a single slice of a large 2D array texture, and use the primary generateMips function otherwise.; You can only call this method outside of a render pass.

See also: generateMips(Image&)

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ operator=() [1/2]

GPUCommandBuffer & CeresEngine::GPUCommandBuffer::operator= ( const GPUCommandBuffer & )

delete

◆ operator=() [2/2]

GPUCommandBuffer & CeresEngine::GPUCommandBuffer::operator= ( GPUCommandBuffer && )

delete

◆ record()

template<typename Func >

decltype(auto) CeresEngine::GPUCommandBuffer::record ( Func && recorder )

inline

Records a sequence of commands to be executed by the GPU.

Parameters

recorder A block to be executed by the command buffer.

◆ resolveImage()

virtual void CeresEngine::GPUCommandBuffer::resolveImage	(	GPUImage &	dstImage,
		const GPUImageLocation &	dstLocation,
		GPUImage &	srcImage,
		const GPUImageLocation &	srcLocation,
		const TExtent3< UInt32 > &	extent
	)

pure virtual

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ setRayTracingPipelineStackSize()

void CeresEngine::GPUCommandBuffer::setRayTracingPipelineStackSize ( )

◆ setScissor()

virtual void CeresEngine::GPUCommandBuffer::setScissor ( const Scissor & scissor )

virtual

Sets a single scissor rectangle.

Remarks: Similar to scissors but only a single scissor rectangle is set.; This must only be used if the currently bound graphics pipeline state was created with scissors being empty. Otherwise, the behavior is undefined.

See also: scissors; GraphicsPipelineDescriptor::scissors

Reimplemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ setScissors()

virtual void CeresEngine::GPUCommandBuffer::setScissors ( const SmallVector< Scissor, 16 > & scissors )

pure virtual

Sets an array of scissor rectangles, but only if the scissor test was enabled in the previously set graphics pipeline (otherwise, this function has no effect).

Parameters

scissors The scissor rectangles to be set. Most render system have a limit of 16 viewports.

Remarks: This must only be used if the currently bound graphics pipeline state was created with scissors being empty. Otherwise, the behavior is undefined.

See also: GraphicsPipelineDescriptor::scissors; RasterizerDescriptor::scissorTestEnabled

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ setViewport()

virtual void CeresEngine::GPUCommandBuffer::setViewport ( const Viewport & viewport )

virtual

Sets a single viewport.

Remarks: Similar to viewports but only a single viewport is set.; This must only be used if the currently bound graphics pipeline state was created with viewports being empty. Otherwise, the behavior is undefined.

See also: GraphicsPipelineDescriptor::viewports

Reimplemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ setViewports()

virtual void CeresEngine::GPUCommandBuffer::setViewports ( const SmallVector< Viewport, 16 > & viewports )

pure virtual

Sets an array of viewports.

Parameters

viewports The viewports to be set. Most render system have a limit of 16 viewports.

Remarks: This must only be used if the currently bound graphics pipeline state was created with viewports being empty. Otherwise, the behavior is undefined.

See also: GraphicsPipelineDescriptor::viewports; RenderingLimits::maxViewports

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ TDeviceObject() [1/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject ( const TDeviceObject & )

delete

Inherited constructors.

◆ TDeviceObject() [2/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject	(	GPUDevice &	device,
		const Descriptor &	descriptor
	)

inlineexplicit

Inherited constructors.

◆ TDeviceObject() [3/3]

CeresEngine::TDeviceObject< TDescriptor, TParent >::TDeviceObject ( TDeviceObject && )

delete

Inherited constructors.

◆ traceRays()

void CeresEngine::GPUCommandBuffer::traceRays ( )

◆ traceRaysIndirect()

void CeresEngine::GPUCommandBuffer::traceRaysIndirect ( )

◆ updateBuffer()

virtual void CeresEngine::GPUCommandBuffer::updateBuffer	(	GPUBuffer &	dstBuffer,
		std::uint64_t	dstOffset,
		const void *	data,
		std::uint16_t	dataSize
	)

pure virtual

Updates the data of the specified buffer during encoding the command buffer.

Parameters

dstBuffer	Specifies the destination buffer whose data is to be updated.
dstOffset	Specifies the destination offset (in bytes) at which the buffer is to be updated. This offset plus the data block size (i.e. `dstOffset + dataSize`) must be less than or equal to the size of the buffer.
data	Raw pointer to the data with which the buffer is to be updated. This must not be `nullptr`!
dataSize	Specifies the size (in bytes) of the data block which is to be updated. This is limited to 2^16 = 65536 bytes, because it may be written to the command buffer itself before it is copied to the destination buffer (depending on the backend).

Remarks: To update buffers larger than 65536 bytes, use writeBuffer() or Buffer::map.

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ wait()

virtual void CeresEngine::GPUCommandBuffer::wait ( )

pure virtual

Implemented in CeresEngine::MTCommandBuffer, CeresEngine::MKCommandBuffer, CeresEngine::NLCommandBuffer, CeresEngine::GLCommandBuffer, CeresEngine::VKCommandBuffer, and CeresEngine::WGCommandBuffer.

◆ writeAccelerationStructuresProperties()

void CeresEngine::GPUCommandBuffer::writeAccelerationStructuresProperties ( )

Member Data Documentation

◆ didFinish

Event<void()> CeresEngine::GPUCommandBuffer::didFinish

An event triggered whenever the command buffer has finished execution.

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/GPUCommandBuffer.hpp

Public Member Functions

Public Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ GPUCommandBuffer() [1/2]

◆ GPUCommandBuffer() [2/2]

Member Function Documentation

◆ barrier()

◆ begin()

◆ bindIndexBuffer() [1/3]

◆ bindIndexBuffer() [2/3]

◆ bindIndexBuffer() [3/3]

◆ bindResourceSet() [1/2]

◆ bindResourceSet() [2/2]

◆ bindVertexBuffer() [1/3]

◆ bindVertexBuffer() [2/3]

◆ bindVertexBuffer() [3/3]

◆ buildAccelerationStructures()

◆ buildAccelerationStructuresIndirect()

◆ clear()

◆ copyAccelerationStructure()

◆ copyAccelerationStructureToMemory()

◆ copyBuffer()

◆ copyBufferFromImage()

◆ copyImage()

◆ copyImageFromBuffer()

◆ copyMemoryToAccelerationStructure()

◆ dispatch()

◆ draw() [1/3]

◆ draw() [2/3]

◆ draw() [3/3]

◆ drawIndexed() [1/3]

◆ drawIndexed() [2/3]

◆ drawIndexed() [3/3]

◆ drawMeshTasks()

◆ drawMeshTasksIndirect() [1/2]

◆ drawMeshTasksIndirect() [2/2]

◆ end()

◆ fillBuffer()

◆ generateMips() [1/2]

◆ generateMips() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ record()

◆ resolveImage()

◆ setRayTracingPipelineStackSize()

◆ setScissor()

◆ setScissors()

◆ setViewport()

◆ setViewports()

◆ TDeviceObject() [1/3]

◆ TDeviceObject() [2/3]

◆ TDeviceObject() [3/3]

◆ traceRays()

◆ traceRaysIndirect()

◆ updateBuffer()

◆ wait()

◆ writeAccelerationStructuresProperties()

Member Data Documentation

◆ didFinish
