A view that arranges two or more views in a linear stack running horizontally or vertically. More...

#include <CeresEngine/UI/UISplitView.hpp>

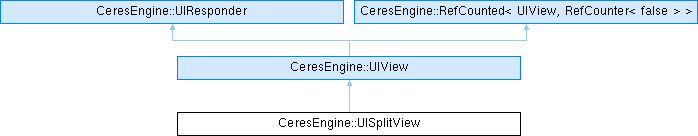

Inheritance diagram for CeresEngine::UISplitView:

Public Types
enum class	DividerStyle { Thick , Thin , PaneSplitter }
	Constants that specify the style of the split view's dividers. More...

Public Member Functions
	UISplitView ()
	Creates a new `UISplitView` with default settings.

	UISplitView (DividerStyle dividerStyle)
	Create a new `UISplitView` with a custom divider style.

	UISplitView (DividerStyle dividerStyle, const UIColor &dividerColor)
	Create a new `UISplitView` with a custom divider style.

	~UISplitView () override
	Destroys the `UISplitView` and releases it's subviews.

void	setPosition (double position, UInt32 index)
	Sets the position of the divider at the specified index.

void	adjustSubViews ()
	Adjusts the sizes of the split view's subviews so they (plus the dividers) fill the split view.

UInt32	getDividerIndexAtPoint (const UIPoint &point) const
	Computes the divider index for the view at the given `point`.

virtual UIRect	getDividerRectAtIndex (UInt32 index) const
	Gets the divider rect for the divider with the given `index`.

bool	isSubviewCollapsed (const UIView *subView) const
	Returns whether the specified view is in a collapsed state.

bool	isVertical () const noexcept
	A Boolean value that determines the geometric orientation of the split view's dividers.

void	setVertical (bool vertical)
	Generates a hash for the provided type.

DividerStyle	getDividerStyle () const noexcept
	The style of divider between views.

void	setDividerStyle (DividerStyle dividerStyle)
	The style of divider between views.

const UIColor &	getDividerColor () const noexcept
	The color of the dividers that the split view draws between subviews.

void	setDividerColor (const UIColor &dividerColor)
	The color of the dividers that the split view draws between subviews.

virtual double	getDividerThickness () const noexcept
	The thickness of the dividers for the split view.

void	mouseDown (const UIMouseEvent &event) override
	Informs the receiver that the user has pressed the left mouse button.

void	mouseUp (const UIMouseEvent &event) override
	Informs the receiver that the user has released the left mouse button.

void	mouseDragged (const UIMouseEvent &event) override
	Informs the receiver that the user has moved the mouse with the left button pressed.

	UIView ()
	Initializes new `UIView` object with an empty frame rectangle.

	UIView (const String &name)
	Initializes new `UIView` object with an empty frame rectangle and custom name.

	UIView (const UIRect &frame, const String &name="")
	Initializes new `UIView` object with a frame rectangle.

	UIView (const UISize &size, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

	UIView (const UIPoint &origin, const UISize &size, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

	UIView (const double x, const double y, const double width, const double height, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

Public Member Functions inherited from CeresEngine::UIView
	UIView ()
	Initializes new `UIView` object with an empty frame rectangle.

	UIView (const String &name)
	Initializes new `UIView` object with an empty frame rectangle and custom name.

	UIView (const UIRect &frame, const String &name="")
	Initializes new `UIView` object with a frame rectangle.

	UIView (const UISize &size, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

	UIView (const UIPoint &origin, const UISize &size, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

	UIView (const double x, const double y, const double width, const double height, const String &name="")
	Initializes new `UIView` object with an frame rectangle size.

	~UIView () override
	Destroys a `UIView`.

UIView *	getSuperView () const
	The view that is the parent of the current view.

const Vector< UIView * > &	getSubViews () const
	The list of views embedded in the current view.

void	setSubViews (const Vector< UIView * > &subViews)
	The list of views embedded in the current view.

UInt32	getSubViewCount () const noexcept
	Gets the number of sub-views in the view.

UIView *	getSubView (UInt32 index) const
	Gets the sub-view at the given index.

UInt32	getSubViewIndex (const UIView *view) const
	Gtes the sub-view index for the given sub-view, if it is a sub-view.

void	addSubView (UIView *view)
	Adds a view to the view's subviews so it's displayed above its siblings.

void	addSubView (const UIViewPtr &view)
	Adds a view to the view's subviews so it's displayed above its siblings.

template<typename T , typename... Args>
T *	addSubView (Args &&... args)
	Adds a view to the view's subviews so it's displayed above its siblings.

void	replaceSubView (UIView view, UIView replacement)
	Replaces one of the view's subviews with another view.

void	removeFromSuperview ()
	Unlinks the view from its superview and its window, removes it from the responder chain, and invalidates its cursor rectangles.

bool	isDescendant (const UIView *view) const
	Returns true if the view is a subview of a given view or if it's identical to that view; otherwise, it returns false.

UIView *	getOpaqueAncestor () const
	The view's closest opaque ancestor, which might be the view itself.

virtual UIWindow *	getWindow () const
	The view's window object, if it is installed in a window.

UIRect	getFrame () const
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

virtual void	setFrame (const UIRect &frame)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

void	setFrame (const UIPoint &point, const UISize &size)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

void	setFrame (const UIPoint &point, const double width, const double height)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

void	setFrame (const double x, const double y, const UISize &size)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

void	setFrame (const double x, const double y, const double width, const double height)
	The view's frame rectangle, which defines its position and size in its superview's coordinate system.

void	setFrameOrigin (const UIPoint &point)
	Sets the origin of the view's frame rectangle to the specified point, effectively repositioning it within its superview.

void	setFrameOrigin (const double x, const double y)
	Sets the origin of the view's frame rectangle to the specified point, effectively repositioning it within its superview.

void	setFrameSize (const UISize &size)
	Sets the size of the view's frame rectangle to the specified dimensions, resizing it within its superview without affecting its coordinate system.

void	setFrameSize (const double width, const double height)
	Sets the size of the view's frame rectangle to the specified dimensions, resizing it within its superview without affecting its coordinate system.

UIRect	getBounds () const
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

virtual void	setBounds (const UIRect &bounds)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

void	setBounds (const UIPoint &point, const UISize &size)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

void	setBounds (const UIPoint &point, const double width, const double height)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

void	setBounds (const double x, const double y, const UISize &size)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

void	setBounds (const double x, const double y, const double width, const double height)
	The view's bounds rectangle, which expresses its location and size in its own coordinate system.

void	setBoundsOrigin (const UIPoint &point)
	Sets the origin of the view's bounds rectangle to a specified point.

void	setBoundsOrigin (const double x, const double y)
	Sets the origin of the view's bounds rectangle to a specified point.

void	setBoundsSize (const UISize &size)
	Sets the size of the view's bounds rectangle to specified dimensions, inversely scaling its coordinate system relative to its frame rectangle.

void	setBoundsSize (const double width, const double height)
	Sets the size of the view's bounds rectangle to specified dimensions, inversely scaling its coordinate system relative to its frame rectangle.

virtual bool	acceptsFirstMouse (const UIEvent &theEvent)
	Overridden by subclasses to return `true` if the view should call `mouseDown()` for an initial mouse-down event, `false` if not.

UIView *	hitTest (UIPoint aPoint, const Optional< const UIEvent & > &event=nullopt)
	Returns the farthest descendant of the view in the view hierarchy (including itself) that contains a specified point, or nil if that point lies completely outside the view.

virtual bool	isPointInside (const UIPoint &point, const Optional< const UIEvent & > &event=nullopt)
	Returns a Boolean value indicating whether the receiver contains the specified point.

bool	isMousePoint (const UIPoint &aPoint, const UIRect &aRect)
	Returns whether a region of the view contains a specified point, accounting for whether the view is flipped or not.

virtual bool	getMouseDownCanMoveWindow () const
	This property lets you determine the region by which a window can be moved.

const UIAppearance &	getAppearance () const noexcept
	The UI appearance to be used by the view.

void	setAppearance (UIAppearance *appearance)
	The UI appearance to be used by the view.

UIColor	getTintColor () const
	The first non-default tint color value in the view's hierarchy, ascending from and starting with the view itself.

void	setTintColor (const UIColor &color)
	The first non-default tint color value in the view's hierarchy, ascending from and starting with the view itself.

void	clearTintColor ()
	Clears the tint color for the current view.

const UIColor &	getBackgroundColor () const noexcept
	The view's background color.

void	setBackgroundColor (const UIColor &color)
	The view's background color.

const UICornerRadius &	getCornerRadius () const noexcept
	The view's background corner radius.

void	setCornerRadius (const UICornerRadius &color)
	The view's background corner radius.

double	getAlpha () const noexcept
	This property contains the opacity value from the view's layer.

void	setAlpha (double alpha)
	This property contains the opacity value from the view's layer.

bool	isOpaque () const noexcept
	A Boolean value indicating whether the view fills its frame rectangle with opaque content.

void	setOpaque (bool isOpaque)
	A Boolean value indicating whether the view fills its frame rectangle with opaque content.

UIRect	getVisibleRect () const
	Visibility, as reflected by this property, does not account for whether other view or window objects overlap the current view or whether the current view is installed in a window at all.

bool	isVisible () const
	A Boolean value indicating whether the view is visible.

void	setVisible (bool visible)
	A Boolean value indicating whether the view is visible.

bool	isHidden () const
	A Boolean value indicating whether the view is hidden.

void	setHidden (const bool hidden)
	A Boolean value indicating whether the view is hidden.

bool	isHiddenOrHasHiddenAncestor () const
	A Boolean value indicating whether the view is hidden from sight because it, or one of its ancestors, is marked as hidden.

bool	isActive () const
	A Boolean value indicating whether the view is active.

void	setActive (bool active)
	A Boolean value indicating whether the view is active.

bool	getAutoresizesSubViews () const
	A Boolean value indicating whether the view applies the autoresizing behavior to its subviews when its frame size changes.

void	setAutoresizesSubViews (bool state)
	Generates a hash for the provided type.

const UIViewAutoresizingMask &	getAutoresizingMask () const
	The options that determine how the view is resized relative to its superview.

void	setAutoresizingMask (const UIViewAutoresizingMask &autoresizingMask)
	The options that determine how the view is resized relative to its superview.

virtual void	resizeSubviews (const UISize &oldBoundsSize)
	Informs the view's subviews that the view's bounds rectangle size has changed.

virtual void	resize (const UISize &oldBoundsSize)
	Informs the view that the bounds size of its superview has changed.

virtual UISize	getIntrinsicContentSize () const
	The natural size for the receiving view, considering only properties of the view itself.

bool	getNeedsLayout () const
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.

void	setNeedsLayout ()
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.

void	setNeedsLayout (bool state)
	A Boolean value indicating whether the view needs a layout pass before it can be drawn.

void	layout ()
	Perform layout in concert with the layout system.

void	layoutIfNeeded ()
	Updates the layout of the receiving view and its subviews based on the current views and constraints.

virtual UISize	calculateFittingLayoutSize (const UISize &targetSize) const
	Returns the optimal size of the view based on its current constraints.

UISize	calculateMinimumLayoutSize () const
	Returns the minimum size of the view based on its current constraints.

UISize	calculateMaximumLayoutSize () const
	Returns the maximum size of the view based on its current constraints.

bool	getNeedsUpdateConstraints () const
	A Boolean value that determines whether the view’s constraints need updating.

void	setNeedsUpdateConstraints ()
	A Boolean value that determines whether the view’s constraints need updating.

void	setNeedsUpdateConstraints (bool state)
	A Boolean value that determines whether the view’s constraints need updating.

virtual void	updateConstraints ()
	Updates constraints for the view.

void	updateConstraintsIfNeeded ()
	Updates the constraints for the receiving view and its subviews.

Span< const UILayoutConstraint >	getConstraints () const
	Returns the constraints held by the view.

void	setConstraints (Vector< UILayoutConstraint > &&constraints)
	Returns the constraints held by the view.

void	setConstraints (const Span< const UILayoutConstraint > &constraints)
	Returns the constraints held by the view.

void	addConstraint (const UILayoutConstraint &constraint)
	Adds a constraint on the layout of the receiving view or its subviews.

void	addConstraints (const Span< const UILayoutConstraint > &constraints)
	Adds multiple constraints on the layout of the receiving view or its subviews.

void	addConstraints (const InitializerList< UILayoutConstraint > constraints)
	Adds multiple constraints on the layout of the receiving view or its subviews.

void	removeConstraint (const UILayoutConstraint &constraint)
	Removes the specified constraint from the view.

void	removeConstraints (const Span< const UILayoutConstraint > &constraints)
	Removes the specified constraints from the view.

void	removeConstraints (const InitializerList< UILayoutConstraint > constraints)
	Removes the specified constraints from the view.

const UIEdgeInsets &	getLayoutMargins () const
	The default spacing to use when laying out content in the view.

void	setLayoutMargins (const UIEdgeInsets &layoutMargins)
	The default spacing to use when laying out content in the view.

double	getLayoutTopMargin () const
	The default spacing to use when laying out content in the view.

void	setTopLayoutMargin (double topLayoutMargin)
	Generates a hash for the provided type.

double	getBottomLayoutMargin () const
	The default spacing to use when laying out content in the view.

void	setBottomLayoutMargin (double bottomLayoutMargin)
	The default spacing to use when laying out content in the view.

double	getLeftLayoutMargin () const
	The default spacing to use when laying out content in the view.

void	setLeftLayoutMargin (double leftLayoutMargin)
	The default spacing to use when laying out content in the view.

double	getRightLayoutMargin () const
	The default spacing to use when laying out content in the view.

void	setRightLayoutMargin (double rightLayoutMargin)
	The default spacing to use when laying out content in the view.

void	setNeedsDisplay ()
	The displayIfNeeded methods check the value of this property to avoid unnecessary drawing, and all display methods set the value back to false when the view is up to date.

void	setNeedsDisplay (const UIRect &invalidRect)
	Marks the region of the view within the specified rectangle as needing display, increasing the view's existing invalid region to include it.

bool	getNeedsDisplay () const
	The displayIfNeeded methods check the value of this property to avoid unnecessary drawing, and all display methods set the value back to false when the view is up to date.

void	display (UIGraphicsContext &context)
	Displays the view and all its subviews if possible.

void	display (UIGraphicsContext &context, const UIRect &aRect)
	Acts as `display()`, but confining drawing to a rectangular region of the view.

void	displayIgnoringOpacity (UIGraphicsContext &context)
	Displays the view but does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.

virtual void	displayIgnoringOpacity (UIGraphicsContext &context, const UIRect &aRect)
	Displays the view but confines drawing to a specified region and does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.

void	displayIfNeeded (UIGraphicsContext &context)
	Displays the view and all its subviews if any part of the view has been marked as needing display.

void	displayIfNeeded (UIGraphicsContext &context, const UIRect &aRect)
	Acts as `displayIfNeeded()`, but confining drawing to a rectangular region of the view.

void	displayIfNeededIgnoringOpacity (UIGraphicsContext &context)
	Acts as `displayIfNeeded()`, except that this method doesn’t back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.

void	displayIfNeededIgnoringOpacity (UIGraphicsContext &context, const UIRect &aRect)
	Displays the view but confines drawing to a specified region and does not back up to the first opaque ancestor—it simply causes the view and its descendants to execute their drawing code.

bool	canDraw () const
	A Boolean value indicating whether drawing commands will produce any results.

const Vector< UIRect > &	getRectsBeingDrawn () const
	Returns by a list of non-overlapping rectangles that define the area the view is being asked to draw in `draw()`.

bool	needsToDraw (const UIRect &aRect) const noexcept
	Returns a Boolean value indicating whether the specified rectangle intersects any part of the area that the view is being asked to draw.

virtual bool	getClearsContextBeforeDrawing () const noexcept
	A Boolean value that determines whether the view's bounds should be automatically cleared before drawing.

virtual bool	getClipsToBounds () const
	A Boolean value that determines whether subviews are confined to the bounds of the view.

double	getContentScaleFactor () const
	The scale factor applied to the view.

void	setContentScaleFactor (const Optional< double > &contentScaleFactor)
	The scale factor applied to the view.

bool	isFirstResponder () const noexcept
	Determines if this view is the current first responder.

virtual UIScrollView *	getScrollView () const
	Gets the closest parent scroll view to this view.

virtual bool	canBecomeKeyView () const
	When the value of this property is true, the view can become the key view.

virtual bool	needsPanelToBecomeKey () const
	The default value of this property is `false`.

UIView *	getNextKeyView () const
	The view object that follows the current view in the key view loop.

void	setNextKeyView (UIView *nextKeyView)
	The view object that follows the current view in the key view loop.

UIView *	getNextValidKeyView () const
	The value in this property is `nullptr` if there is no view that follows the current view and accepts the first responder status.

UIView *	getPreviousKeyView () const
	The value in this property is `nullptr` if there is no view preceding the current view in the key view loop.

UIView *	getPreviousValidKeyView () const
	The value in this property is `nullptr` if there is no view that precedes the current view and accepts the first responder status.

AffineTransform	getTransformFrom (const UIView *aView=nullptr) const

const AffineTransform &	getTransformFromWindow () const

AffineTransform	getTransformFromSuperView () const

const AffineTransform &	getTransformFromBacking () const

AffineTransform	getTransformTo (const UIView *aView=nullptr) const

const AffineTransform &	getTransformToWindow () const

AffineTransform	getTransformToSuperView () const

const AffineTransform &	getTransformToBacking () const

UIPoint	convertFrom (const UIPoint &aPoint, const UIView *aView=nullptr) const
	Converts a point from the coordinate system of a given view to that of the view.

UIPoint	convertFromWindow (const UIPoint &aPoint) const
	Converts a point from the coordinate system of a given view to that of the view.

UIPoint	convertFromSuperView (const UIPoint &aPoint) const
	Converts a point from the coordinate system of a given view to that of the view.

UIPoint	convertFromBacking (const UIPoint &aPoint) const
	Converts a point from its pixel aligned backing store coordinate system to the view’s interior coordinate system.

UIPoint	convertTo (const UIPoint &aPoint, const UIView *aView=nullptr) const
	Converts a point from the view's coordinate system to that of a given view.

UIPoint	convertToWindow (const UIPoint &aPoint) const
	Converts a point from the view's coordinate system to that of a given view.

UIPoint	convertToSuperView (const UIPoint &aPoint) const
	Converts a point from the view's coordinate system to that of a given view.

UIPoint	convertToBacking (const UIPoint &aPoint) const
	Converts a point from the view’s interior coordinate system to its pixel aligned backing store coordinate system.

UISize	convertFrom (const UISize &aSize, const UIView *aView=nullptr) const
	Converts a size from another view's coordinate system to that of the view.

UISize	convertFromWindow (const UISize &aSize) const
	Converts a point from the coordinate system of a given view to that of the view.

UISize	convertFromSuperView (const UISize &aSize) const
	Converts a point from the coordinate system of a given view to that of the view.

UISize	convertFromBacking (const UISize &aSize) const
	Converts a size from its pixel aligned backing store coordinate system to the view’s interior coordinate system.

UISize	convertTo (const UISize &aSize, const UIView *aView=nullptr) const
	Converts a size from the view's coordinate system to that of another view.

UISize	convertToWindow (const UISize &aSize) const
	Converts a point from the view's coordinate system to that of a given view.

UISize	convertToSuperView (const UISize &aSize) const
	Converts a point from the view's coordinate system to that of a given view.

UISize	convertToBacking (const UISize &aSize) const
	Converts a size from the view’s interior coordinate system to its pixel aligned backing store coordinate system.

UIRect	convertFrom (const UIRect &aRect, const UIView *aView=nullptr) const
	Converts a rectangle from the coordinate system of another view to that of the view.

UIRect	convertFromWindow (const UIRect &aRect) const
	Converts a point from the coordinate system of a given view to that of the view.

UIRect	convertFromSuperView (const UIRect &aRect) const
	Converts a point from the coordinate system of a given view to that of the view.

UIRect	convertFromBacking (const UIRect &aRect) const
	Converts a rectangle from its pixel aligned backing store coordinate system to the view’s interior coordinate system.

UIRect	convertTo (const UIRect &aRect, const UIView *aView=nullptr) const
	Converts a rectangle from the view's coordinate system to that of another view.

UIRect	convertToWindow (const UIRect &aRect) const
	Converts a point from the view's coordinate system to that of a given view.

UIRect	convertToSuperView (const UIRect &aRect) const
	Converts a point from the view's coordinate system to that of a given view.

UIRect	convertToBacking (const UIRect &aRect) const
	Converts a rectangle from the view’s interior coordinate system to its pixel aligned backing store coordinate system.

UIViewController *	getViewController () const noexcept
	The UIView controller, if any.

const String &	getName () const
	A human readable string that represents the view.

void	setName (const String &name)
	Generates a hash for the provided type.

virtual StringView	getTypeName () const
	A string that represents the view type.

UIResponder *	getNextResponder () const final
	The next responder after this one, or nil if it has none.

Public Member Functions inherited from CeresEngine::UIResponder
virtual	~UIResponder ()=default

virtual bool	acceptsFirstResponder () const
	A Boolean value that indicates whether the responder accepts first responder status.

virtual bool	becomeFirstResponder ()
	Notifies the receiver that it's about to become first responder in its window.

virtual bool	resignFirstResponder ()
	Notifies the receiver that it's been asked to relinquish its status as first responder in its window.

virtual void	mouseMoved (const UIMouseEvent &event)
	Informs the receiver that the mouse has moved.

virtual void	mouseEntered (const UIMouseEvent &event)
	Informs the receiver that the cursor has entered a tracking rectangle.

virtual void	mouseExited (const UIMouseEvent &event)
	Informs the receiver that the cursor has exited a tracking rectangle.

virtual void	rightMouseDown (const UIMouseEvent &event)
	Informs the receiver that the user has pressed the right mouse button.

virtual void	rightMouseDragged (const UIMouseEvent &event)
	Informs the receiver that the user has moved the mouse with the right button pressed.

virtual void	rightMouseUp (const UIMouseEvent &event)
	Informs the receiver that the user has released the right mouse button.

virtual void	otherMouseDown (const UIMouseEvent &event)
	Informs the receiver that the user has pressed a mouse button other than the left or right one.

virtual void	otherMouseDragged (const UIMouseEvent &event)
	Informs the receiver that the user has moved the mouse with a button other than the left or right button pressed.

virtual void	otherMouseUp (const UIMouseEvent &event)
	Informs the receiver that the user has released a mouse button other than the left or right button.

virtual void	scrollWheel (const UIMouseEvent &event)
	Informs the receiver that the mouse's scroll wheel has moved.

virtual void	keyDown (const UIKeyEvent &event)
	Informs the receiver that the user has pressed a key.

virtual void	keyUp (const UIKeyEvent &event)
	Informs the receiver that the user has released a key.

virtual void	interpretKeyEvents (const Vector< UIKeyEvent > &events)
	Handles a series of key events.

virtual bool	performKeyEquivalent (const UIKeyEvent &event)
	Handle a key equivalent.

virtual void	flushBufferedKeyEvents ()
	Clears any unprocessed key events when overridden by subclasses.

virtual void	cursorUpdate (const UIEvent &event)
	Informs the receiver that the mouse cursor has moved into a cursor rectangle.

virtual void	flagsChanged (const UIEvent &event)
	Informs the receiver that the user has pressed or released a modifier key (Shift, Control, and so on).

Public Member Functions inherited from CeresEngine::RefCounted< UIView, RefCounter< false > >
	RefCounted (Args &&... args)
	Creates a new `RefCounted` object and constructs a new `Deleter` by forwarding `Args` to it.

void	retain () noexcept
	Retains the object by increment it's reference count by one.

bool	release () noexcept
	Relases the object by decrementing it's reference count by one.

Public Attributes
struct {

UIDelegate< UISplitView, void()> willResizeSubviews
	Notifies the delegate when the split view is about to resize its subviews. More...

UIDelegate< UISplitView, void()> didResizeSubviews
	Notifies the delegate when the split view resizes its subviews. More...

UIDelegate< UISplitView, bool(UIView *subView)> canCollapseSubview = false
	Allows the delegate to determine whether the user can collapse and expand the specified subview. More...

UIDelegate< UISplitView, void()> layoutSubviews
	Allows the delegate to specify custom sizing behavior for the subviews of the split view. More...

UIDelegate< UISplitView, double(double proposedMinimum, UInt32 dividerIndex)> constrainMinimumCoordinate
	Allows the delegate to constrain the minimum coordinate limit of a divider when the user drags it. More...

UIDelegate< UISplitView, double(double proposedMaximum, UInt32 dividerIndex)> constrainMaximumCoordinate
	Allows the delegate to constrain the maximum coordinate limit of a divider when the user drags it. More...

UIDelegate< UISplitView, double(double proposedPosition, UInt32 dividerIndex)> constrainSplitPosition
	Allows the delegate to constrain the divider to certain positions. More...

}	delegate

Public Attributes inherited from CeresEngine::UIView
const UILayoutAnchor	left
	The left side of the object's alignment rectangle.

const UILayoutAnchor	right
	The right side of the object's alignment rectangle.

const UILayoutAnchor	top
	The top of the object's alignment rectangle.

const UILayoutAnchor	bottom
	The bottom of the object's alignment rectangle.

const UILayoutAnchor	width
	The width of the object's alignment rectangle.

const UILayoutAnchor	height
	The height of the object's alignment rectangle.

const UILayoutAnchor	centerX
	The center along the x-axis of the object's alignment rectangle.

const UILayoutAnchor	centerY
	The center along the y-axis of the object's alignment rectangle.

const UILayoutAnchor	lastBaseline
	The object's baseline.

const UILayoutAnchor	firstBaseline
	The object's baseline.

const UILayoutAnchor	leftMargin
	The object's left margin.

const UILayoutAnchor	rightMargin
	The object's right margin.

const UILayoutAnchor	topMargin
	The object's top margin.

const UILayoutAnchor	bottomMargin
	The object's bottom margin.

const UILayoutAnchor	centerXWithinMargins
	The center along the x-axis between the object's left and right margin.

const UILayoutAnchor	centerYWithinMargins
	The center along the y-axis between the object's top and bottom margin.

Protected Member Functions
virtual void	drawDivider (UIGraphicsContext &context, const UIRect &aRect)
	Draws a divider between two of the split view's subviews.

void	layoutSubviews () override
	Lays out subviews.

void	didAddSubview (UIView &view) override
	Overridden by subclasses to perform additional actions when subviews are added to the view.

void	didRemoveSubview (UIView &view) override
	Overridden by subclasses to perform additional actions when subviews are removed to the view.

void	draw (UIGraphicsContext &context, const UIRect &dirtyRect) override
	Overridden by subclasses to draw the view's texture within the specified rectangle.

Protected Member Functions inherited from CeresEngine::UIView
virtual void	willRemoveSubview (UIView &view)
	Overridden by subclasses to perform additional actions before subviews are removed from the view.

virtual void	willMoveToSuperView (UIView *superView)
	Informs the view that its superview is about to change to the specified superview (which may be nil).

virtual void	didMoveToSuperView (UIView *superView)
	Informs the view that its superview has changed (possibly to nil).

virtual void	willMoveToWindow (UIWindow *window)
	Informs the view that it's being added to the view hierarchy of the specified window object (which may be nil).

virtual void	didMoveToWindow (UIWindow *window)
	Informs the view that it has been added to a new view hierarchy.

virtual void	didHide ()
	Invoked when the view is hidden, either directly, or in response to an ancestor being hidden.

virtual void	didUnhide ()
	Invoked when the view is unhidden, either directly, or in response to an ancestor being unhidden.

virtual void	willDraw ()
	Informs the view that it will be required to draw content.

virtual void	tintColorDidChange ()
	Called by the system when the tintColor property changes.

virtual void	didChangeFrame (const UIRect &oldFrame)
	Called whenever the view frame changes, either internally or programmatically by calls to `setFrame`.

virtual void	didChangeBounds (const UIRect &oldBounds)
	Called whenever the view bounds changes, either internally or programmatically by calls to `setBounds`.

void	invalidateIntrinsicContentSize ()
	Invalidates the view's intrinsic content size.

void	updateIntrinsicContentSize ()

Private Attributes
bool	mVertical = true
	A Boolean value that determines the geometric orientation of the split view's dividers.

DividerStyle	mDividerStyle = DividerStyle::PaneSplitter
	The style of divider between views.

UIColor	mDividerColor
	The color of the dividers that the split view draws between subviews.

UInt32	mDragIndex = kUndefinedDragIndex
	The divider index currently being dragged.

Static Private Attributes
static const UInt32	kUndefinedDragIndex
	A constant that represents an undefined drag index.

Additional Inherited Members
Static Public Member Functions inherited from CeresEngine::UIResponder
static void	dispatch (UIResponder *const firstResponder, const UIEvent &event)
	Dispatches a `UIEvent` to the given first responder.

Static Public Attributes inherited from CeresEngine::UIView
static const double	kNoInstrinsicMetric
	Used to indicate that a view has no intrinsic metric for a given numeric property.

static const UISize	kNoIntrinsicSize
	Used to indicate that a view has no intrinsic metric for a given size property.

static const UInt32	kInvalidViewIndex
	Used to indicate that an invalid view index.

static const UIRect	kDefaultFrame
	A rectangle that represents the default frame set by a view without an explicit frame.

static const UIColorAppearanceProperty	tintColorProperty
	Determines the default value for the `tintColor` property if not overridden by the view.

static const UIPaintAppearanceProperty	labelPaintProperty
	The primary color to use for text labels.

static const UIPaintAppearanceProperty	secondaryLabelPaintProperty
	The secondary color to use for text labels.

static const UIPaintAppearanceProperty	tertiaryLabelPaintProperty
	The tertiary color to use for text labels.

static const UIPaintAppearanceProperty	quaternaryLabelPaintProperty
	The quaternary color to use for text labels and separators.

static const UIPaintAppearanceProperty	textPaintProperty
	The color to use for text.

static const UIPaintAppearanceProperty	placeholderTextPaintProperty
	The color to use for placeholder text in controls or text views.

static const UIPaintAppearanceProperty	selectedTextPaintProperty
	The color to use for selected text.

static const UIPaintAppearanceProperty	textBackgroundPaintProperty
	The color to use for the background area behind text.

static const UIPaintAppearanceProperty	selectedTextBackgroundPaintProperty
	The color to use for the background of selected text.

static const UIPaintAppearanceProperty	keyboardFocusIndicatorPaintProperty
	The color to use for the keyboard focus ring around controls.

static const UIPaintAppearanceProperty	unemphasizedSelectedTextPaintProperty
	The color to use for selected text in an unemphasized context.

static const UIPaintAppearanceProperty	unemphasizedSelectedTextBackgroundPaintProperty
	The color to use for the text background in an unemphasized context.

static const UIPaintAppearanceProperty	linkPaintProperty
	The color to use for links.

static const UIPaintAppearanceProperty	separatorPaintProperty
	The color to use for separators between different sections of content.

static const UIPaintAppearanceProperty	selectedContentBackgroundPaintProperty
	The color to use for the background of selected and emphasized content.

static const UIPaintAppearanceProperty	unemphasizedSelectedContentBackgroundPaintProperty
	The color to use for selected and unemphasized content.

static const UIPaintAppearanceProperty	selectedMenuItemTextPaintProperty
	The color to use for the text in menu items.

static const UIPaintAppearanceProperty	gridPaintProperty
	The color to use for the optional gridlines, such as those in a table view.

static const UIPaintAppearanceProperty	headerTextPaintProperty
	The color to use for text in header cells in table views and outline views.

static const UIPaintAppearanceProperty	alternatingContentBackgroundColorsProperty
	The colors to use for alternating content, typically found in table views and collection views.

static const UIPaintAppearanceProperty	controlAccentPaintProperty
	The user's current accent color preference.

static const UIPaintAppearanceProperty	controlPaintProperty
	The color to use for the flat surfaces of a control.

static const UIPaintAppearanceProperty	controlBackgroundPaintProperty
	The color to use for the background of large controls, such as scroll views or table views.

static const UIPaintAppearanceProperty	controlTextPaintProperty
	The color to use for text on enabled controls.

static const UIPaintAppearanceProperty	disabledControlTextPaintProperty
	The color to use for text on disabled controls.

static const UIPaintAppearanceProperty	currentControlTintProperty
	The current system control tint color.

static const UIPaintAppearanceProperty	selectedControlPaintProperty
	The color to use for the face of a selected control—that is, a control that has been clicked or is being dragged.

static const UIPaintAppearanceProperty	selectedControlTextPaintProperty
	The color to use for text in a selected control—that is, a control being clicked or dragged.

static const UIPaintAppearanceProperty	alternateSelectedControlTextPaintProperty
	The color to use for text in a selected control.

static const UIPaintAppearanceProperty	scrubberTexturedBackgroundPaintProperty
	The patterned color to use for the background of a scrubber control.

static const UIPaintAppearanceProperty	windowBackgroundPaintProperty
	The color to use for the window background.

static const UIPaintAppearanceProperty	windowFrameTextPaintProperty
	The color to use for text in a window's frame.

static const UIPaintAppearanceProperty	underPageBackgroundPaintProperty
	The color to use in the area beneath your window's views.

static const UIPaintAppearanceProperty	findHighlightPaintProperty
	The highlight color to use for the bubble that shows inline search result values.

static const UIPaintAppearanceProperty	highlightPaintProperty
	The color to use as a virtual light source on the screen.

static const UIPaintAppearanceProperty	shadowPaintProperty
	The color to use for virtual shadows cast by raised objects on the screen.

static const UIFontAppearanceProperty	fontProperty
	The default font used by all UI elements.

static const UIFloatAppearanceProperty	fontSizeProperty
	The default font size used by all UI elements.

Detailed Description

A view that arranges two or more views in a linear stack running horizontally or vertically.

By default, dividers have a horizontal orientation so that the split view arranges its panes vertically from top to bottom.

Divider indices are zero-based. If the vertical property is false, which is the default value, the top divider has an index of 0. If vertical is true, the leading divider has an index of 0.

Member Enumeration Documentation

◆ DividerStyle

enum class CeresEngine::UISplitView::DividerStyle

strong

Constants that specify the style of the split view's dividers.

Enumerator
Thick	A thick style divider displays between subviews.
Thin	A thin style divider displays between subviews.
PaneSplitter	A thick style divider with a 3D appearance displays between subviews.

Constructor & Destructor Documentation

◆ UISplitView() [1/3]

CeresEngine::UISplitView::UISplitView ( )

Creates a new UISplitView with default settings.

◆ UISplitView() [2/3]

CeresEngine::UISplitView::UISplitView ( DividerStyle dividerStyle )

explicit

Create a new UISplitView with a custom divider style.

Parameters

dividerStyle The style of divider between views.

◆ UISplitView() [3/3]

CeresEngine::UISplitView::UISplitView	(	DividerStyle	dividerStyle,
		const UIColor &	dividerColor
	)

explicit

Create a new UISplitView with a custom divider style.

Parameters

dividerStyle	The style of divider between views.
dividerColor	The color of the dividers that the split view draws between subviews.

◆ ~UISplitView()

CeresEngine::UISplitView::~UISplitView ( )

override

Destroys the UISplitView and releases it's subviews.

Member Function Documentation

◆ adjustSubViews()

void CeresEngine::UISplitView::adjustSubViews ( )

Adjusts the sizes of the split view's subviews so they (plus the dividers) fill the split view.

When you call this method, the split view's subviews resize proportionally; the relative sizes of the subviews don't change.

The default implementation of this method resizes subviews proportionally so that the ratio of heights (when using horizontal dividers) or widths (when using vertical dividers) doesn't change, even though the absolute sizes change.

Call this method on split views where you've added or removed subviews to reestablish the consistency of subview placement.

◆ didAddSubview()

void CeresEngine::UISplitView::didAddSubview ( UIView & view )

overrideprotectedvirtual

Overridden by subclasses to perform additional actions when subviews are added to the view.

Reimplemented from CeresEngine::UIView.

◆ didRemoveSubview()

void CeresEngine::UISplitView::didRemoveSubview ( UIView & view )

overrideprotectedvirtual

Overridden by subclasses to perform additional actions when subviews are removed to the view.

Reimplemented from CeresEngine::UIView.

◆ draw()

void CeresEngine::UISplitView::draw	(	UIGraphicsContext &	context,
		const UIRect &	dirtyRect
	)

overrideprotectedvirtual

Overridden by subclasses to draw the view's texture within the specified rectangle.

Use this method to draw the specified portion of your view's content. Your implementation of this method should be as fast as possible and do as little work as possible. The dirtyRect parameter helps you achieve better performance by specifying the portion of the view that needs to be drawn. You should always limit drawing to the content inside this rectangle. For even better performance, you can call the getRectsBeingDrawn() method and use the list of rectangles returned by that method to limit drawing even further. You can also use the needsToDraw() method test whether objects in a particular rectangle need to be drawn.

The default implementation does nothing. Subclasses should override this method if they do custom drawing. Prior to calling this method, the framework creates an appropriate drawing context and configures it for drawing to the view; you do not need to configure the drawing context yourself.

If your custom view is a direct UIView subclass, you do not need to call super. For all other views, call super at some point in your implementation so that the parent class can perform any additional drawing.

Note: If the view's isOpaque property is true, the view must completely fill the dirtyRect rectangle with opaque content.

Parameters

dirtyRect A rectangle defining the portion of the view that requires redrawing. This rectangle usually represents the portion of the view that requires updating. When responsive scrolling is enabled, this rectangle can also represent a nonvisible portion of the view that frameworks wants to cache.

Reimplemented from CeresEngine::UIView.

◆ drawDivider()

virtual void CeresEngine::UISplitView::drawDivider	(	UIGraphicsContext &	context,
		const UIRect &	aRect
	)

protectedvirtual

Draws a divider between two of the split view's subviews.

If you override this method to use a custom style for the divider, you may need to change the size of the divider.

Parameters

context	The UI graphics context object to submit drawing commands to.
aRect	The entire divider rectangle in the split view's flipped coordinate system.

◆ getDividerColor()

const UIColor & CeresEngine::UISplitView::getDividerColor ( ) const

inlinenoexcept

The color of the dividers that the split view draws between subviews.

◆ getDividerIndexAtPoint()

UInt32 CeresEngine::UISplitView::getDividerIndexAtPoint ( const UIPoint & point ) const

Computes the divider index for the view at the given point.

Parameters

point The point to compute the divider index for.

Returns: The index of the divider at is below the given point.

◆ getDividerRectAtIndex()

virtual UIRect CeresEngine::UISplitView::getDividerRectAtIndex ( UInt32 index ) const

virtual

Gets the divider rect for the divider with the given index.

Note: This is used by getDividerIndexAtPoint() to compute the divider as well as internally to compute the spacing between views.

Parameters

index The index of the divider to return a rect for.

Returns: A rectangle that includes the bounding area of the divider.

◆ getDividerStyle()

DividerStyle CeresEngine::UISplitView::getDividerStyle ( ) const

inlinenoexcept

The style of divider between views.

See also: DividerStyle for the possible values.

◆ getDividerThickness()

virtual double CeresEngine::UISplitView::getDividerThickness ( ) const

virtualnoexcept

The thickness of the dividers for the split view.

◆ isSubviewCollapsed()

bool CeresEngine::UISplitView::isSubviewCollapsed ( const UIView * subView ) const

Returns whether the specified view is in a collapsed state.

Parameters

subView The subview in the split view.

Returns: true if subview is in a collapsed state; otherwise, false.

◆ isVertical()

bool CeresEngine::UISplitView::isVertical ( ) const

inlinenoexcept

A Boolean value that determines the geometric orientation of the split view's dividers.

The default value of this property is true, which indicates vertical dividers and views that stack one after another the other (left-to-right) in the containing split view.

To specify horizontal dividers and a horizontal (top-to-bottom) arrangement of views within a split view, set this property to false.

◆ layoutSubviews()

void CeresEngine::UISplitView::layoutSubviews ( )

overrideprotectedvirtual

Lays out subviews.

Subclasses can override this method as needed to perform more precise layout of their subviews. You should override this method only if the autoresizing behavior of the subviews do not offer the behavior you want. You can use your implementation to set the frame rectangles of your subviews directly.

You should not call this method directly. If you want to force a layout update, call the setNeedsLayout() method instead to do so prior to the next drawing update. If you want to update the layout of your views immediately, call the layoutIfNeeded() method.

Reimplemented from CeresEngine::UIView.

◆ mouseDown()

void CeresEngine::UISplitView::mouseDown ( const UIMouseEvent & event )

overridevirtual

Informs the receiver that the user has pressed the left mouse button.

Reimplemented from CeresEngine::UIResponder.

◆ mouseDragged()

void CeresEngine::UISplitView::mouseDragged ( const UIMouseEvent & event )

overridevirtual

Informs the receiver that the user has moved the mouse with the left button pressed.

Reimplemented from CeresEngine::UIResponder.

◆ mouseUp()

void CeresEngine::UISplitView::mouseUp ( const UIMouseEvent & event )

overridevirtual

Informs the receiver that the user has released the left mouse button.

Reimplemented from CeresEngine::UIResponder.

◆ setDividerColor()

void CeresEngine::UISplitView::setDividerColor ( const UIColor & dividerColor )

The color of the dividers that the split view draws between subviews.

◆ setDividerStyle()

void CeresEngine::UISplitView::setDividerStyle ( DividerStyle dividerStyle )

The style of divider between views.

See also: DividerStyle for the possible values.

◆ setPosition()

void CeresEngine::UISplitView::setPosition	(	double	position,
		UInt32	index
	)

Sets the position of the divider at the specified index.

The default implementation of this method behaves as if the user were attempting to drag the divider to the proposed position, so the system applies the constraints that the delegate imposes and one of the views adjacent to the divider may collapse.

Parameters

position	The position of the divider.
index	The index of the divider.

◆ setVertical()

void CeresEngine::UISplitView::setVertical ( bool vertical )

Generates a hash for the provided type.

Type must have a std::hash specialization.

Template Parameters

T	the type to be hashed

Parameters

v	The value to be hashed

Returns: The hashed value

◆ UIView() [1/6]

CeresEngine::UIView::UIView ( )

Initializes new UIView object with an empty frame rectangle.

◆ UIView() [2/6]

CeresEngine::UIView::UIView	(	const double	x,
		const double	y,
		const double	width,
		const double	height,
		const String &	name = `""`
	)

inlineexplicit

Initializes new UIView object with an frame rectangle size.

The view is placed at the origin.

Parameters

x	The frame rectangle origin x coordinate for the created view object.
y	The frame rectangle origin y coordinate for the created view object.
width	The frame rectangle width for the created view object.
height	The frame rectangle height for the created view object.

◆ UIView() [3/6]

CeresEngine::UIView::UIView ( const String & name )

explicit

Initializes new UIView object with an empty frame rectangle and custom name.

◆ UIView() [4/6]

CeresEngine::UIView::UIView	(	const UIPoint &	origin,
		const UISize &	size,
		const String &	name = `""`
	)

inlineexplicit

Initializes new UIView object with an frame rectangle size.

The view is placed at the origin.

Parameters

origin	The frame rectangle origin for the created view object.
size	The frame rectangle size for the created view object.

◆ UIView() [5/6]

CeresEngine::UIView::UIView	(	const UIRect &	frame,
		const String &	name = `""`
	)

explicit

Initializes new UIView object with a frame rectangle.

Parameters

frame The frame rectangle for the created view object.

◆ UIView() [6/6]

CeresEngine::UIView::UIView	(	const UISize &	size,
		const String &	name = `""`
	)

inlineexplicit

Initializes new UIView object with an frame rectangle size.

The view is placed at the origin.

Parameters

size	The frame rectangle size for the created view object.

Member Data Documentation

◆ canCollapseSubview

UIDelegate<UISplitView, bool(UIView* subView)> CeresEngine::UISplitView::canCollapseSubview = false

Allows the delegate to determine whether the user can collapse and expand the specified subview.

The subview expands when the user drags the divider beyond the halfway mark between its minimum size and its edge.

A collapsed subview isn't visible, but the split view object retains it with the same size as before the collapse.

If the delegate doesn't implement this method, the subviews can't collapse.

Parameters

subView The subview to collapse.

Returns: true if subview collapses when the user drags a divider beyond the halfway mark between its minimum size and its edge; otherwise, false.

◆ constrainMaximumCoordinate

UIDelegate<UISplitView, double(double proposedMaximum, UInt32 dividerIndex)> CeresEngine::UISplitView::constrainMaximumCoordinate

Allows the delegate to constrain the maximum coordinate limit of a divider when the user drags it.

The delegate receives this message before the split view begins tracking the cursor to position a divider. You can further constrain the limits, but you can't extend the divider limits.

If the split bars are horizontal (views are one on top of the other), proposedMaximum is the bottom limit. If the split bars are vertical (views are side by side), proposedMaximum is the right limit. The initial value of proposedMaximum is the bottom (or right side) of the subview after the divider.

Parameters

proposedMaximum	The proposed maximum coordinate limit of the subview in the split view's flipped coordinate system.
dividerIndex	Specifies the divider the user is moving, with the first divider being 0 and increasing from top to bottom (or left to right).

Returns: The maximum coordinate limit of the divider.

◆ constrainMinimumCoordinate

UIDelegate<UISplitView, double(double proposedMinimum, UInt32 dividerIndex)> CeresEngine::UISplitView::constrainMinimumCoordinate

Allows the delegate to constrain the minimum coordinate limit of a divider when the user drags it.

The delegate receives this message before the split view begins tracking the cursor to position a divider. You can further constrain the limits, but you can't extend the divider limits.

If the split bars are horizontal (views are one on top of the other), proposedMinimum is the top limit. If the split bars are vertical (views are side by side), proposedMinimum is the left limit. The initial value of proposedMinimum is the top (or left side) of the subview before the divider.

Parameters

proposedMinimum	The proposed minimum coordinate limit of the subview in the split view's flipped coordinate system.
dividerIndex	Specifies the divider the user is moving, with the first divider being 0 and increasing from top to bottom (or left to right).

Returns: The minimum coordinate limit of the divider.

◆ constrainSplitPosition

UIDelegate<UISplitView, double(double proposedPosition, UInt32 dividerIndex)> CeresEngine::UISplitView::constrainSplitPosition

Allows the delegate to constrain the divider to certain positions.

If the delegate implements this method, the split view calls it repeatedly as the user moves the divider.

If a subview's height must be a multiple of a certain number, use this method to return the multiple nearest to proposedPosition.

Parameters

proposedPosition	The cursor's current position, and the proposed position of the divider.
dividerIndex	The index of the divider the user is moving, with the first divider being `0` and increasing from top to bottom (or left to right).

Returns: The position for constraining the divider.

◆ [struct]

struct { ... } CeresEngine::UISplitView::delegate

◆ didResizeSubviews

UIDelegate<UISplitView, void()> CeresEngine::UISplitView::didResizeSubviews

Notifies the delegate when the split view resizes its subviews.

The view invokes this method after the split view resizes two of its subviews in response to the repositioning of a divider.

◆ kUndefinedDragIndex

const UInt32 CeresEngine::UISplitView::kUndefinedDragIndex

staticprivate

A constant that represents an undefined drag index.

◆ layoutSubviews

UIDelegate<UISplitView, void()> CeresEngine::UISplitView::layoutSubviews

Allows the delegate to specify custom sizing behavior for the subviews of the split view.

If the delegate implements this method, it receives this message after the split view resizes.

Resize the subviews so that the sum of the sizes of the subviews plus the sum of the thickness of the dividers equals the size of the new frame of the UISplitView. You can get the thickness of a divider through the getDividerThickness() method.

If you implement this delegate method to resize subviews on your own, the UISplitView doesn't perform any error checking for you. However, you can invoke adjustSubviews() to perform the default sizing behavior.

◆ mDividerColor

UIColor CeresEngine::UISplitView::mDividerColor

private

The color of the dividers that the split view draws between subviews.

◆ mDividerStyle

DividerStyle CeresEngine::UISplitView::mDividerStyle = DividerStyle::PaneSplitter

private

The style of divider between views.

See also: DividerStyle for the possible values.

◆ mDragIndex

UInt32 CeresEngine::UISplitView::mDragIndex = kUndefinedDragIndex

private

The divider index currently being dragged.

◆ mVertical

bool CeresEngine::UISplitView::mVertical = true

private

A Boolean value that determines the geometric orientation of the split view's dividers.

The default value of this property is true, which indicates vertical dividers and views that stack one after another the other (left-to-right) in the containing split view.

To specify horizontal dividers and a horizontal (top-to-bottom) arrangement of views within a split view, set this property to false.

◆ willResizeSubviews

UIDelegate<UISplitView, void()> CeresEngine::UISplitView::willResizeSubviews

Notifies the delegate when the split view is about to resize its subviews.

The view invokes this method before the split view resizes two of its subviews in response to the repositioning of a divider.

The documentation for this class was generated from the following file:

/Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/UI/UISplitView.hpp

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ DividerStyle

Constructor & Destructor Documentation

◆ UISplitView() [1/3]

◆ UISplitView() [2/3]

◆ UISplitView() [3/3]

◆ ~UISplitView()

Member Function Documentation

◆ adjustSubViews()

◆ didAddSubview()

◆ didRemoveSubview()

◆ draw()

◆ drawDivider()

◆ getDividerColor()

◆ getDividerIndexAtPoint()

◆ getDividerRectAtIndex()

◆ getDividerStyle()

◆ getDividerThickness()

◆ isSubviewCollapsed()

◆ isVertical()

◆ layoutSubviews()

◆ mouseDown()

◆ mouseDragged()

◆ mouseUp()

◆ setDividerColor()

◆ setDividerStyle()

◆ setPosition()

◆ setVertical()

◆ UIView() [1/6]

◆ UIView() [2/6]

◆ UIView() [3/6]

◆ UIView() [4/6]

◆ UIView() [5/6]

◆ UIView() [6/6]

Member Data Documentation

◆ canCollapseSubview

◆ constrainMaximumCoordinate

◆ constrainMinimumCoordinate

◆ constrainSplitPosition

◆ [struct]

◆ didResizeSubviews

◆ kUndefinedDragIndex

◆ layoutSubviews

◆ mDividerColor

◆ mDividerStyle

◆ mDragIndex

◆ mVertical

◆ willResizeSubviews
