CeresEngine::VKCommandQueue Class Reference

#include <CeresEngine/RenderAPI/Vulkan/VKCommandQueue.hpp>

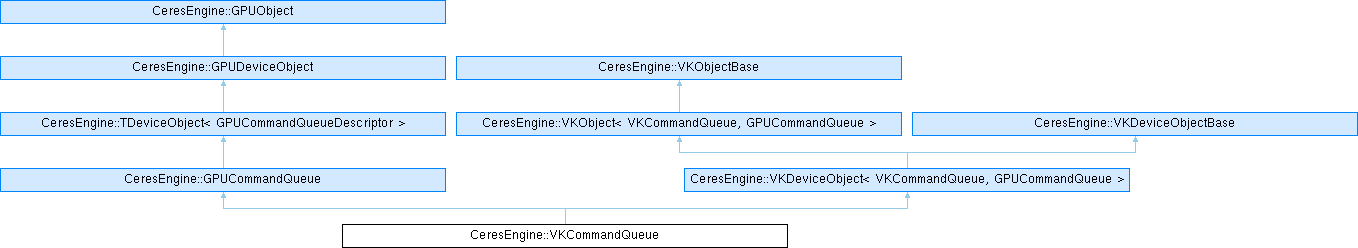

Inheritance diagram for CeresEngine::VKCommandQueue:

Public Member Functions
	VKCommandQueue (VKDevice &device, UInt32 familyIndex, VkQueue queue)
	~VKCommandQueue () final
	operator VkQueue () const noexcept
	The Vulkan queue object.
GPUCommandBufferPtr	createCommandBuffer (const GPUCommandBufferDescriptor &descriptor) final
Async	submit (GPUCommandBuffer &commandBuffer) final
void	wait () final
UInt32	getFamilyIndex () const
	The Vulkan queue getFamilyIndex index.
Public Member Functions inherited from CeresEngine::GPUCommandQueue
	GPUCommandQueue (const GPUCommandQueue &)=delete
	Deleted copy constructor.
GPUCommandQueue &	operator= (const GPUCommandQueue &)=delete
	GPUCommandQueue (GPUCommandQueue &&)=delete
	Deleted move constructor.
GPUCommandQueue &	operator= (GPUCommandQueue &&)=delete
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Inherited constructors.
	TDeviceObject (const TDeviceObject &)=delete
	Inherited constructors.
	TDeviceObject (TDeviceObject &&)=delete
	Inherited constructors.
Public Member Functions inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
	TDeviceObject (GPUDevice &device, const Descriptor &descriptor)
	Initializes a new RenderAPI device object instance.
	TDeviceObject (const TDeviceObject &)=delete
	TDeviceObject (TDeviceObject &&)=delete
	~TDeviceObject () override=default
TDeviceObject &	operator= (const TDeviceObject &)=delete
TDeviceObject &	operator= (TDeviceObject &&)=delete
Public Member Functions inherited from CeresEngine::GPUDeviceObject
	GPUDeviceObject (GPUDevice &device)
	~GPUDeviceObject () override
Public Member Functions inherited from CeresEngine::GPUObject
	GPUObject ()=default
virtual	~GPUObject ()=default
	GPUObject (const GPUObject &)=delete
GPUObject &	operator= (const GPUObject &)=delete
	GPUObject (GPUObject &&)=delete
GPUObject &	operator= (GPUObject &&)=delete
void	retain () noexcept
	Retains the object by increment it's reference count by one.
bool	release () noexcept
	Releases the object by decrementing it's reference count by one.
Public Member Functions inherited from CeresEngine::VKDeviceObjectBase
	VKDeviceObjectBase (VKDevice &device) noexcept
	Creates a new VKDeviceObjectBase from the given device.
	~VKDeviceObjectBase () noexcept
	Destroys the VKDeviceObjectBase.

Public Attributes
Mutex	mutex
Public Attributes inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
const Descriptor &	descriptor
	A structure that describes the object and it's properties.
Public Attributes inherited from CeresEngine::GPUDeviceObject
GPUDevice &	device
	The owning device this object was created from.
Public Attributes inherited from CeresEngine::VKDeviceObjectBase
VKDevice &	deviceVK
	The owning VKDevice instance.

Private Attributes
const GPUCommandQueueDescriptor	mDescriptorVK
	A structure that describes the command queue and it's properties.
VkQueue	mQueue
	The Vulkan queue object.
UInt32	mFamilyIndex = 0
	The Vulkan queue getFamilyIndex index.

Friends
class	VKCommandBuffer

Additional Inherited Members
Public Types inherited from CeresEngine::TDeviceObject< GPUCommandQueueDescriptor >
using	Descriptor = GPUCommandQueueDescriptor
	An type-alias to the descriptor struct type.
Static Public Member Functions inherited from CeresEngine::VKObject< ChildTypeName, ParentType >
static RC< ChildTypeName >	cast (const RC< ParentType > &ptr)
	Casts a RC containing a ParentType pointer to a pointer to a pointer to a ChildTypeName.
static ChildTypeName &	cast (ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName &	cast (const ParentType &object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static ChildTypeName *	cast (ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
static const ChildTypeName *	cast (const ParentType *object)
	Casts a object of type ParentType to a object of type ChildTypeName.
Static Public Member Functions inherited from CeresEngine::VKObjectBase
static void *	operator new (size_t size) noexcept
static void	operator delete (void *p, std::size_t sz) noexcept
Protected Member Functions inherited from CeresEngine::GPUObject
virtual void	destroy () noexcept
	A internal method called by the system when the object reference count reaches zero.
Protected Member Functions inherited from CeresEngine::VKDeviceObject< VKCommandQueue, GPUCommandQueue >
	VKDeviceObject (VKDevice &device) noexcept
	Creates a new VKDeviceObject from the given device.

Constructor & Destructor Documentation

VKCommandQueue()

CeresEngine::VKCommandQueue::VKCommandQueue	(	VKDevice &	device,
		UInt32	familyIndex,
		VkQueue	queue
	)

~VKCommandQueue()

CeresEngine::VKCommandQueue::~VKCommandQueue ( )

final

Member Function Documentation

createCommandBuffer()

GPUCommandBufferPtr CeresEngine::VKCommandQueue::createCommandBuffer ( const GPUCommandBufferDescriptor &  descriptor )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

getFamilyIndex()

UInt32 CeresEngine::VKCommandQueue::getFamilyIndex ( ) const

inline

The Vulkan queue getFamilyIndex index.

operator VkQueue()

CeresEngine::VKCommandQueue::operator VkQueue ( ) const

inlinenoexcept

The Vulkan queue object.

submit()

Async CeresEngine::VKCommandQueue::submit ( GPUCommandBuffer &  commandBuffer )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

wait()

void CeresEngine::VKCommandQueue::wait ( )

finalvirtual

Implements CeresEngine::GPUCommandQueue.

Friends And Related Symbol Documentation

VKCommandBuffer

friend class VKCommandBuffer

friend

Member Data Documentation

mDescriptorVK

const GPUCommandQueueDescriptor CeresEngine::VKCommandQueue::mDescriptorVK

private

A structure that describes the command queue and it's properties.

mFamilyIndex

UInt32 CeresEngine::VKCommandQueue::mFamilyIndex = 0

private

The Vulkan queue getFamilyIndex index.

mQueue

VkQueue CeresEngine::VKCommandQueue::mQueue

private

The Vulkan queue object.

mutex

Mutex CeresEngine::VKCommandQueue::mutex

mutable

---

The documentation for this class was generated from the following file:

• /Users/Rogiel/Developer/CeresEngine/Engine/Sources/CeresEngine/RenderAPI/Vulkan/VKCommandQueue.hpp
